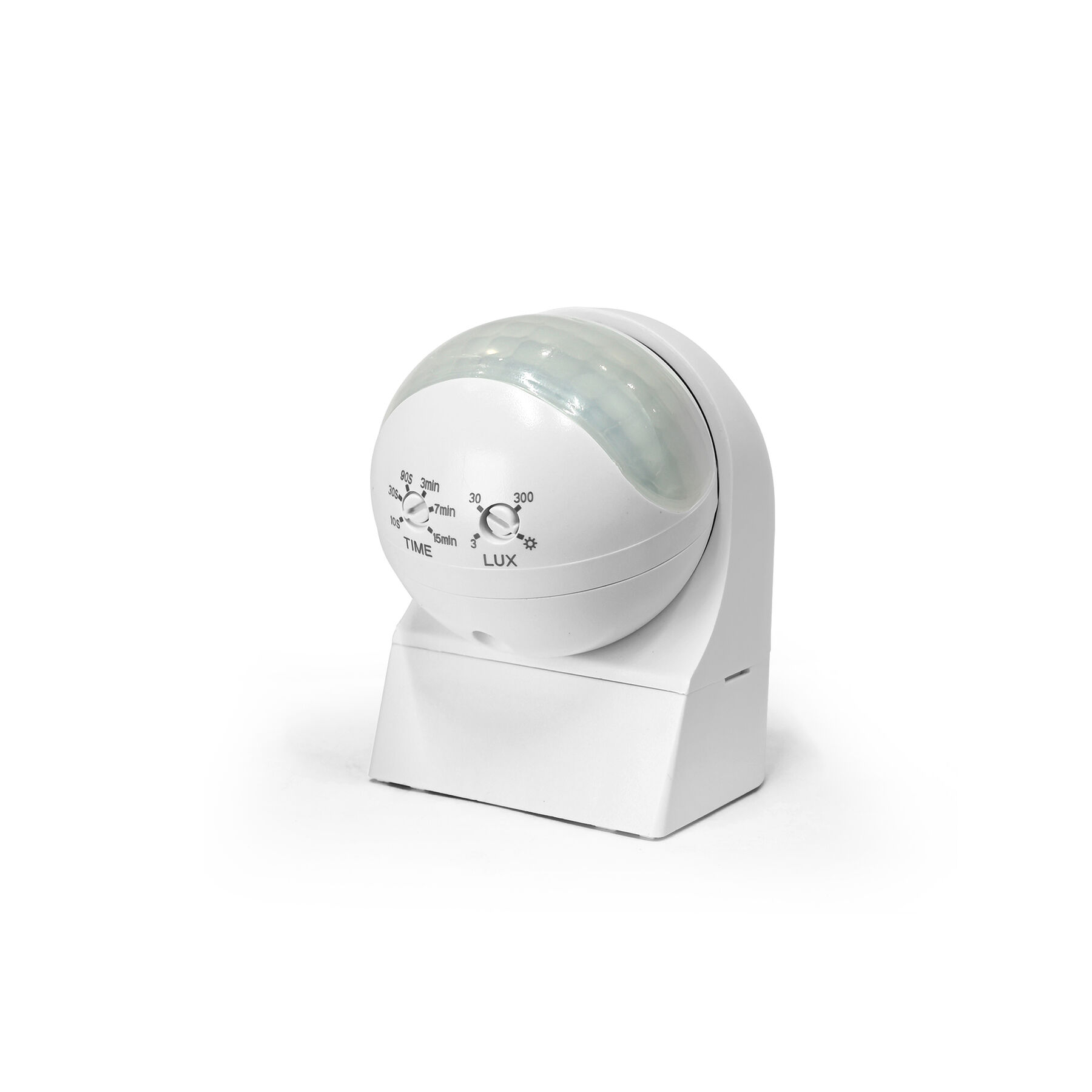

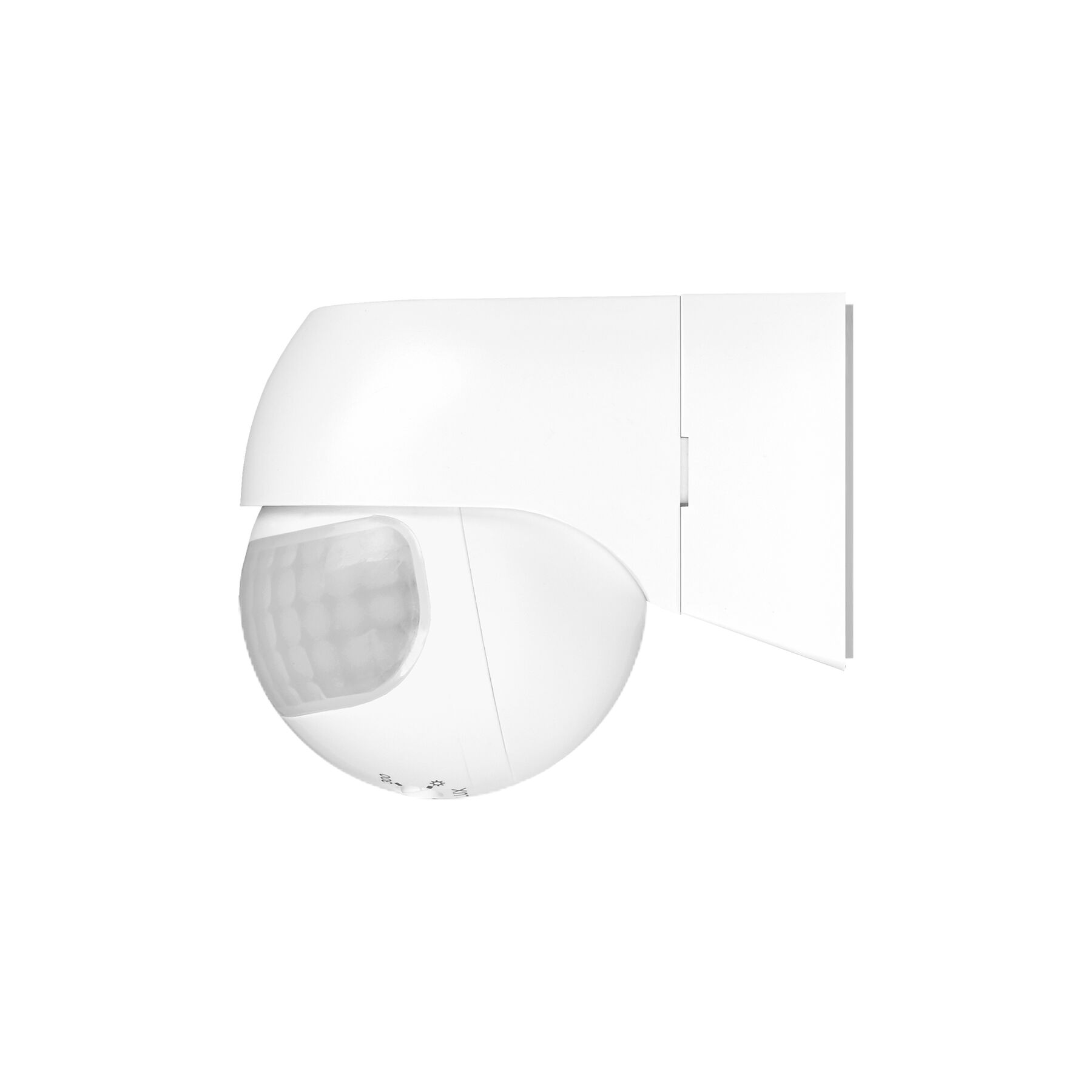

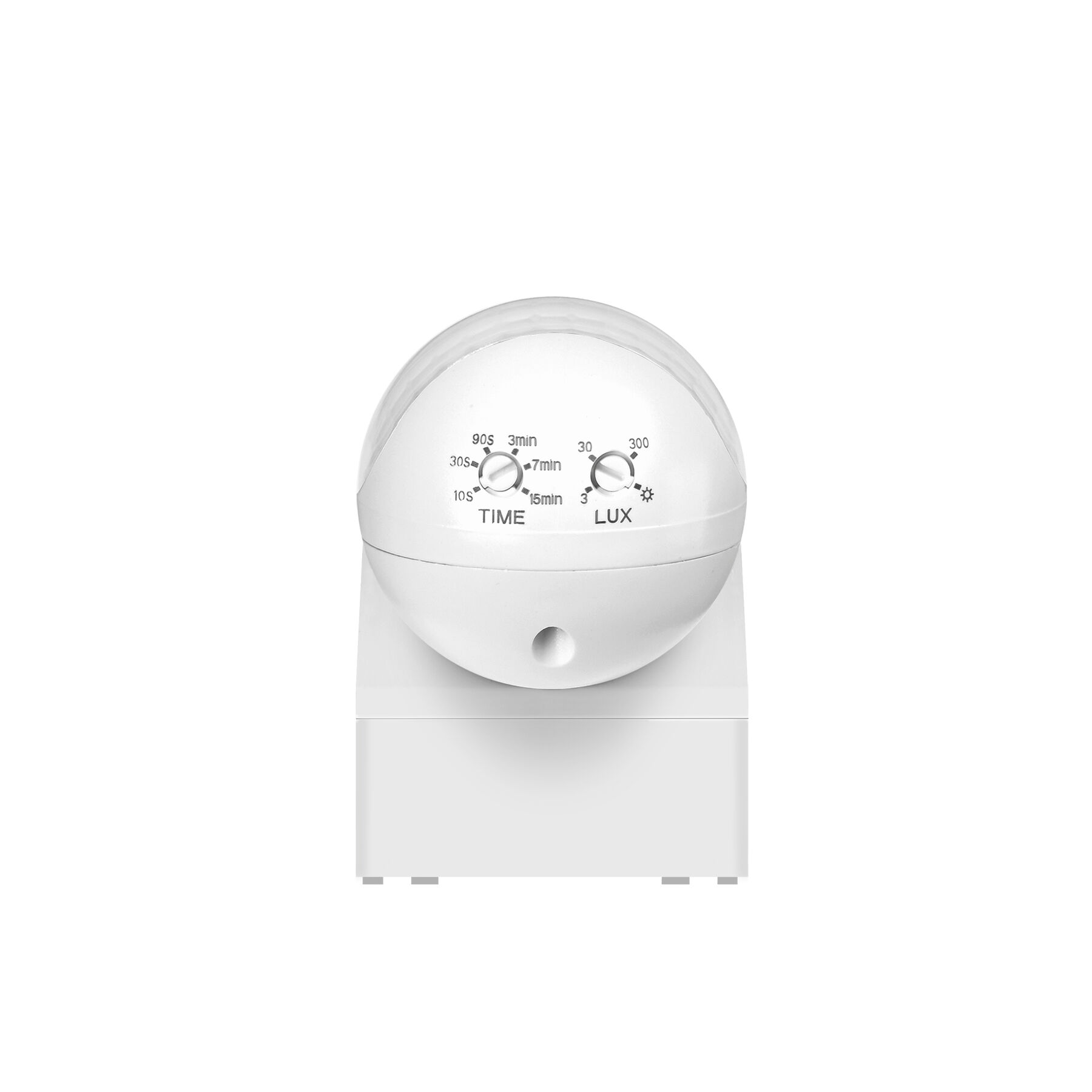

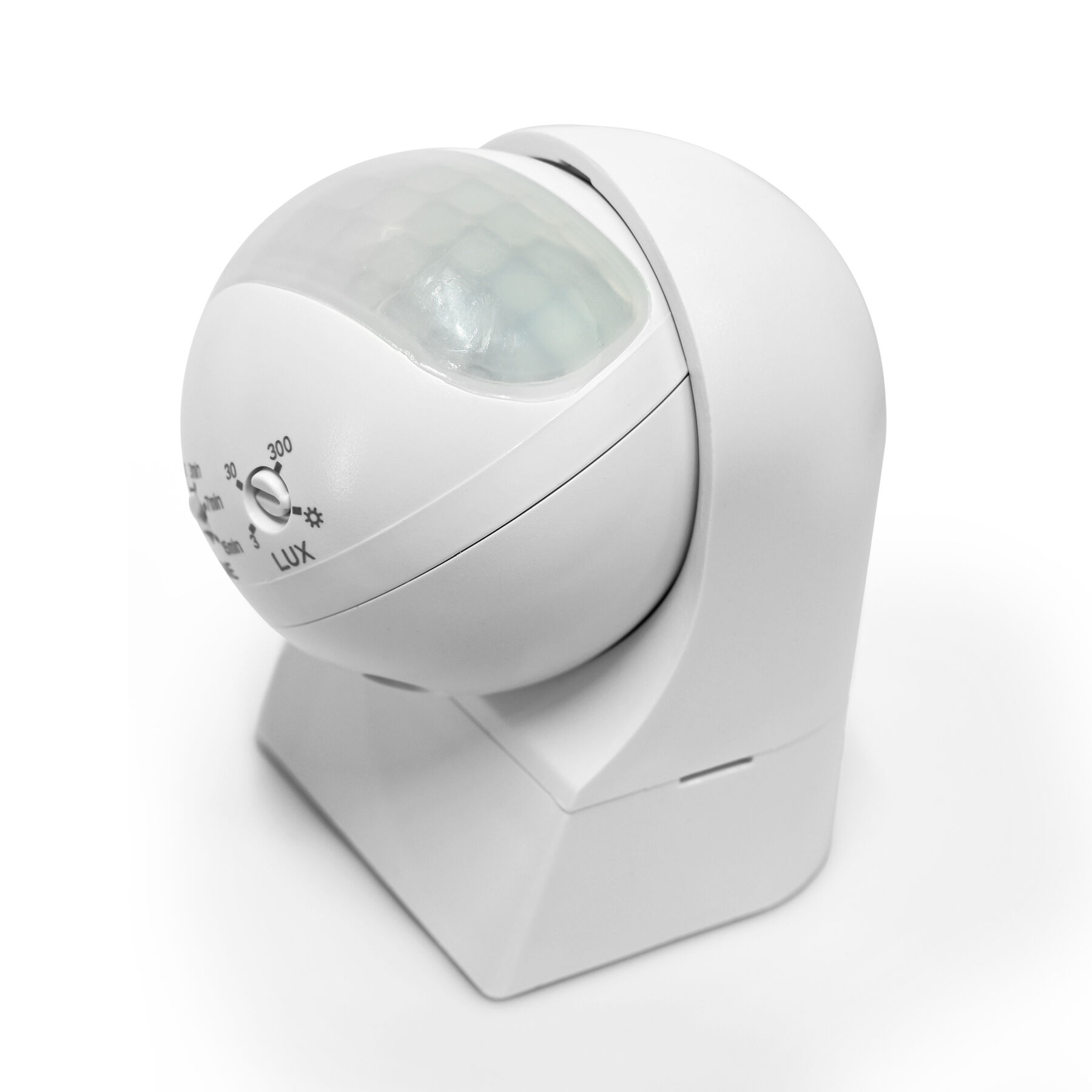

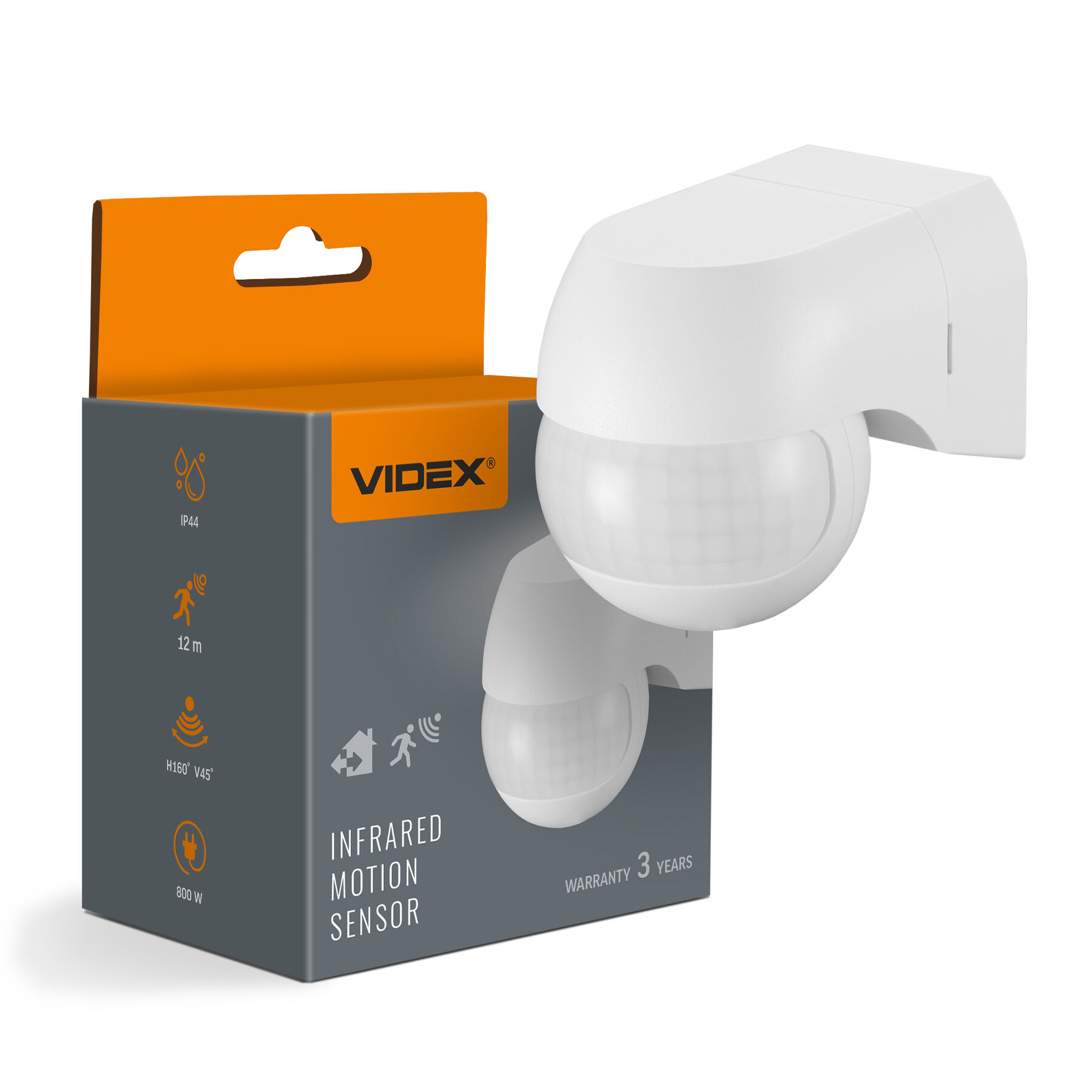

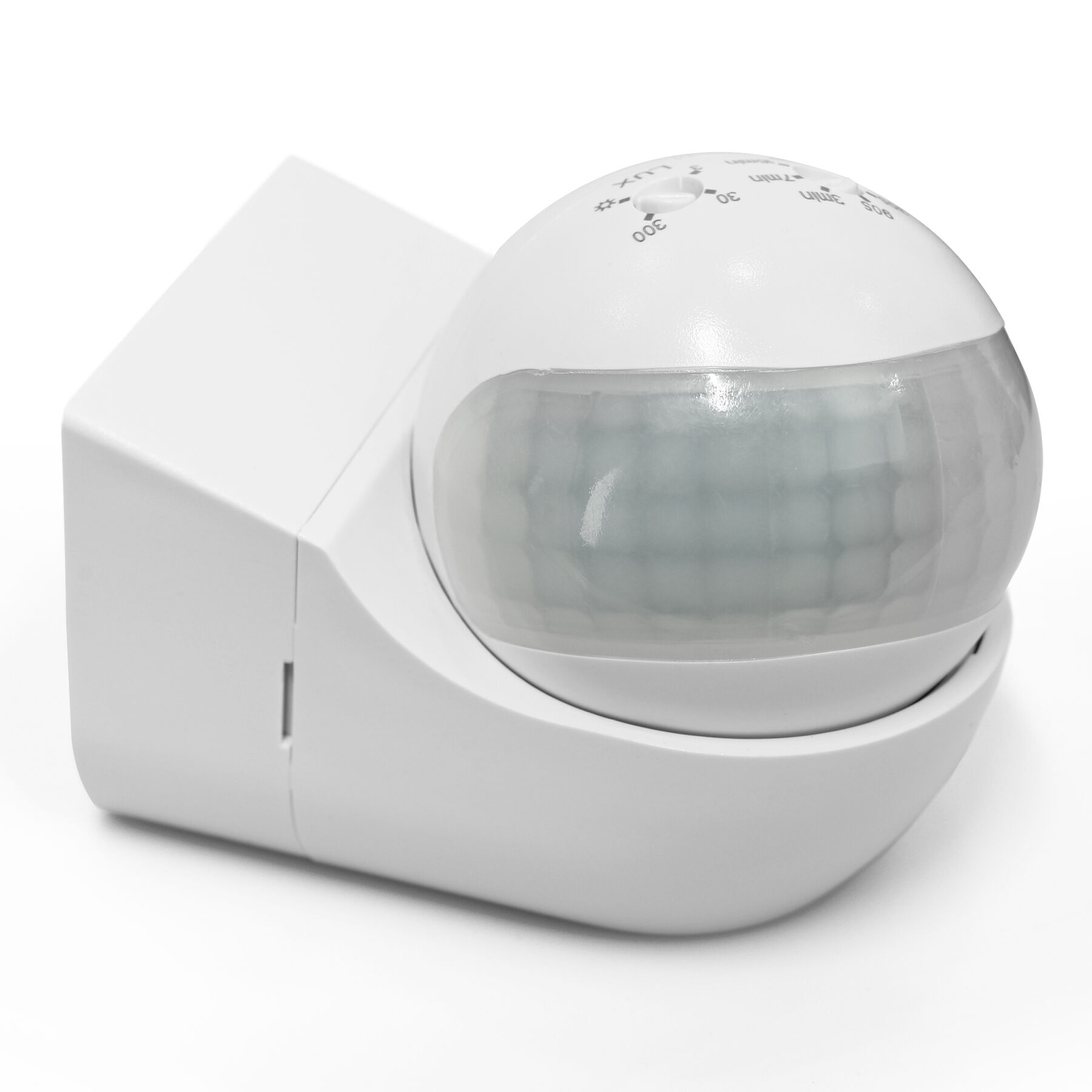

PIR motion and light sensor VIDEX VL-SPW11W 800W IP44 White

PIR motion and light sensor VIDEX VL-SPW11W 800W IP44 White

Index: VL-SPW11W

Add to favorites Add to compare

Parameters

EAN:

4820246488501
Rated voltage, frequency:

AC 220-240 V, 50/60 Hz
Place of installation :

Ceiling, Flat surface, Wall
Place of application:

indoor, outdoor
Housing colour:

White

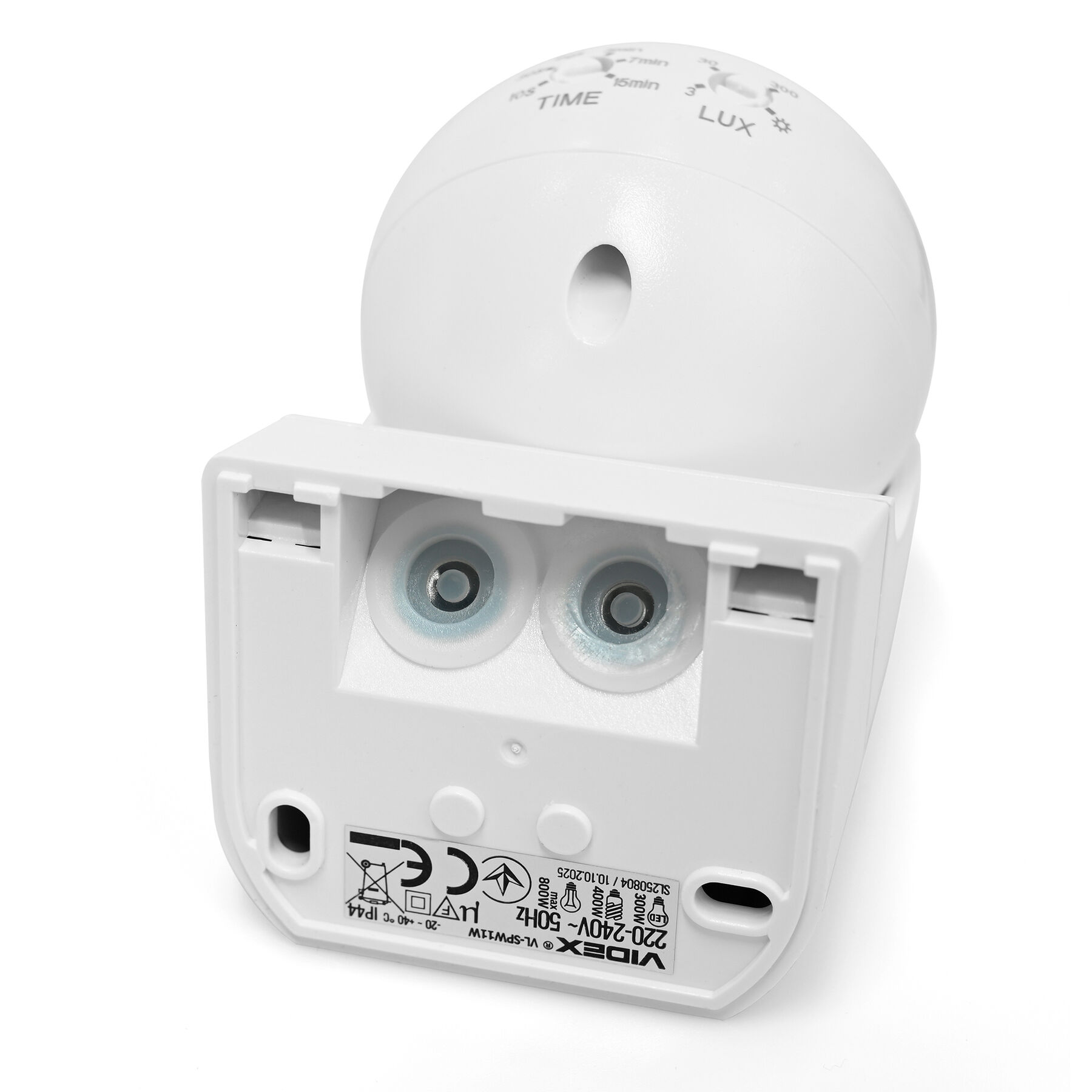

Input interface:

Terminal block
- Electric shock protection class:

  II
- Ultraviolet radiation:

  no
- Motion sensor:

  yes
- Sensor type:

  PIR
- Sensor vertical adjustment range:

  45°
- Sensor detection angle:

  160°, 45°
- Sensor horizontal adjustment range:

  90°
- Sensor time delay:

  10 s - 15 min
- Sensor detection distance:

  2 - 12 m
- Operating temperature range:

  -20° +40°C
- Sensor light threshold:

  3-2000 Lx
- Maximum active power load:

  800 W
- Maximum inductive power load:

  300 W
- Ingress protection:

  IP44
- Housing material:

  PC

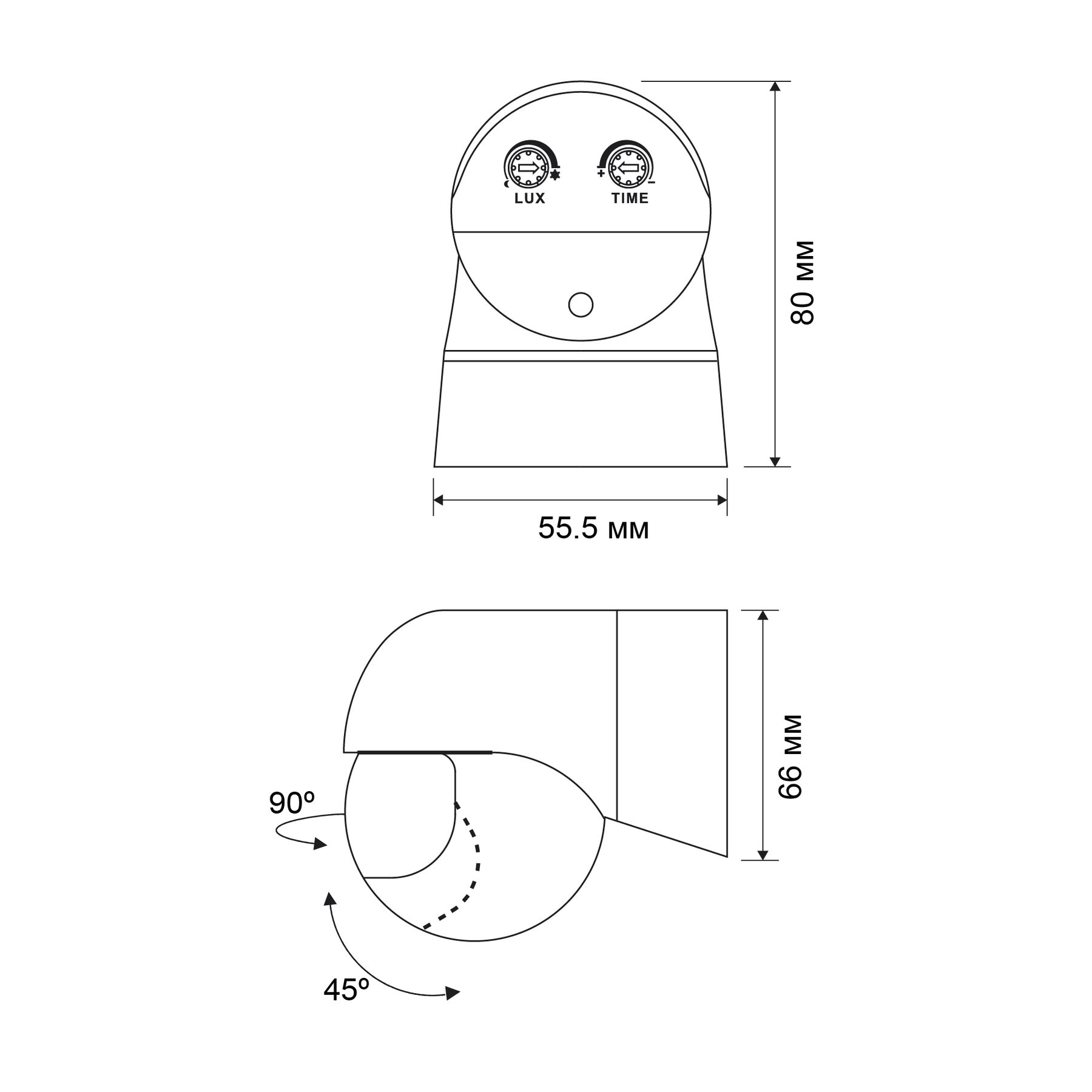

- Height:

  66 mm
- Width:

  55.5 mm
- Depth:

  80 mm

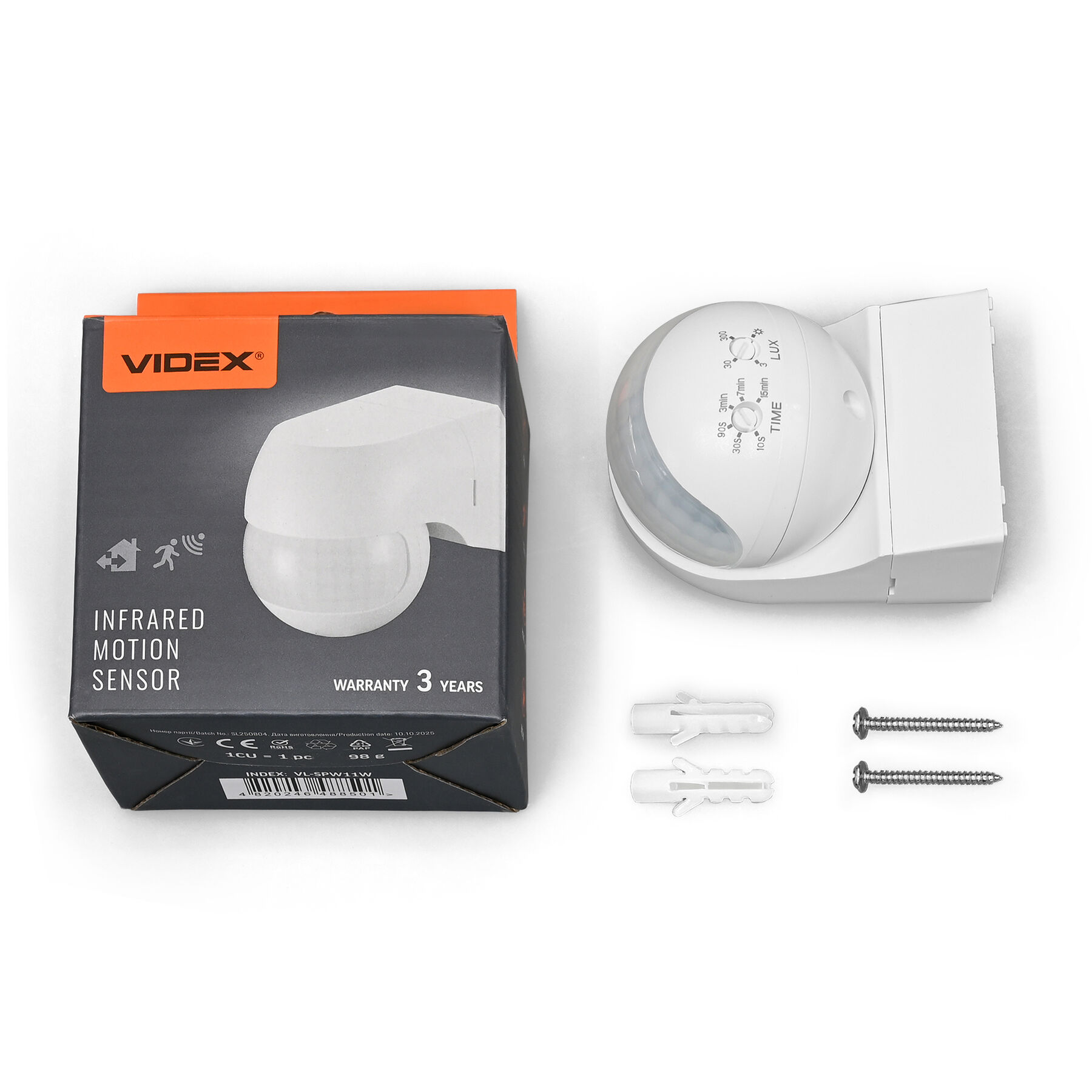

- In the package:

  1 pc.
- Outer box:

  20 pcs.
- Unit nett weight:

  98g
- Warranty:

  3 years

See all specifications

Description

PIR motion and light sensor VIDEX SPW15 helps control the lighting system and detects the movement of objects. The sensor automatically turns the lighting on and off depending on motion detected within the sensor’s detection range. It is ideal for lighting industrial and warehouse facilities, park areas, residential surroundings, recreation areas, roads, and similar locations. The sensor is resistant to rain thanks to its IP65 protection rating, allowing it to be used both indoors and outdoors. The recommended installation height is 1.8–2.5m.

- Delay time is adjustable within the range of 10 s – 15 min.
- Thanks to the IP65 protection rating, the sensor is protected against dust and water, allowing it to be safely used both in high-humidity indoor environments and outdoors without damage to the device.
- Detection speed: 0.6–1.5 m/s.
Adjustable light activation threshold (LUX) in the range from 3Lx to 2000Lx.
- No-load power consumption: <0.6W.
- Detection distance: up to 12m (at temperature <24°C).
- Maximum load power: incandescent lamp – 1200W; fluorescent lamp – 400W; LED lamp – 300W.
- Sensor tilt angle is adjustable 30° horizontally and 180° vertically.
- Detection angle: 160° when installed on horizontal surfaces and 45° when installed on vertical surfaces.
- The product warranty period is 3 years.
