PIR motion and light sensor VIDEX VL-SPR41W 1200W White

PIR motion and light sensor VIDEX VL-SPR41W 1200W White

Index: VL-SPR41W

Add to favorites Add to compare

Parameters

EAN:

4820246488488
Rated voltage, frequency:

AC 220-240 V, 50/60 Hz
Place of installation :

Ceiling
Place of application:

indoor
Mounting hole size:

Ø63-66 mm
Housing colour:

White
- Input interface:

  Terminal block
- Electric shock protection class:

  II
- Ultraviolet radiation:

  no
- Motion sensor:

  yes
- Sensor type:

  PIR
- Sensor detection angle:

  360°
- Sensor time delay:

  10 s - 15 min
- Sensor detection distance:

  2 - 8 m
- Operating temperature range:

  -20° +40°C
- Sensor light threshold:

  3-2000 Lx
- Maximum active power load:

  1200 W
- Maximum inductive power load:

  400 W
- Ingress protection:

  IP20
- Housing material:

  PC

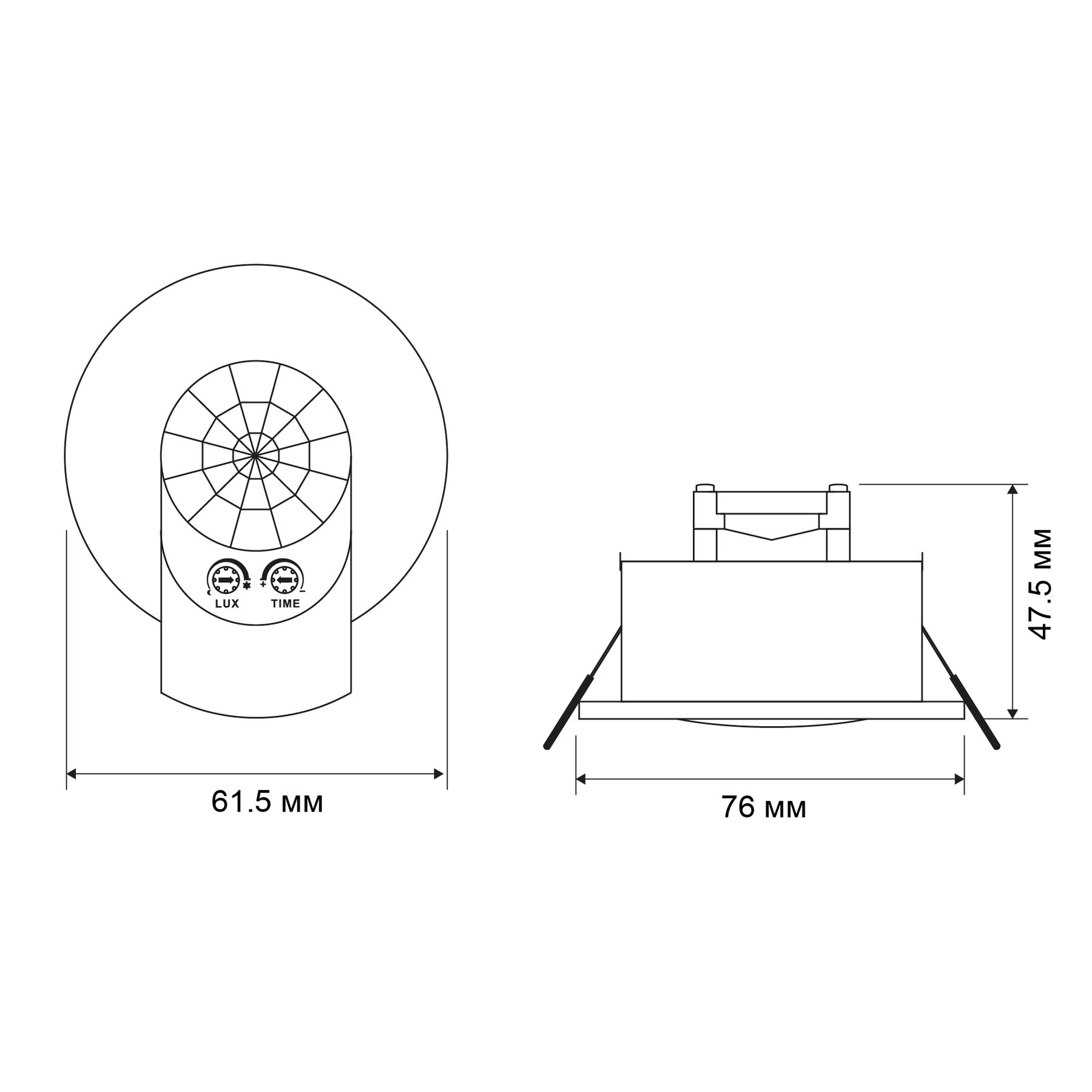

- Height:

  47.5 mm
- Width:

  76 mm
- Depth:

  47.5 mm
- In the package:

  1 pc.
- Outer box:

  20 pcs.
- Unit nett weight:

  69g
- Warranty:

  3 years

See all specifications

Description

PIR motion and light sensor VIDEX SPR41 helps control the lighting system indoors. The sensor automatically turns the lighting on and off depending on motion detected within the sensor’s detection range. It is ideal for lighting corridors, apartments, offices, retail areas, educational institutions, and other dry indoor spaces. The recommended installation height is 1.8–4m. It is usually installed in the ceiling in a horizontal position. The delay range and activation threshold can be adjusted using the controllers located under the cover on the front side of the sensor next to the sensing element. The cover should be slightly slid to the side (away from the center) to access the controllers and then closed again after completing all settings.

- Delay time is adjustable within the range of 10 s – 15 min.
- Ingress protection rating: IP20, allowing installation only in dry indoor environments.
- Detection speed: 0.6–1.5 m/s.
- Adjustable light activation threshold (LUX) in the range from 3Lx to 2000Lx.
- No-load power consumption: <0.3W.
- Detection distance: up to 8m (at temperature <24°C).
- Mounting hole diameter: 63–66mm.
- Maximum load power: incandescent lamp – 1200W; fluorescent lamp – 600W; LED lamp – 400W.
- The product warranty period is 3 years.
