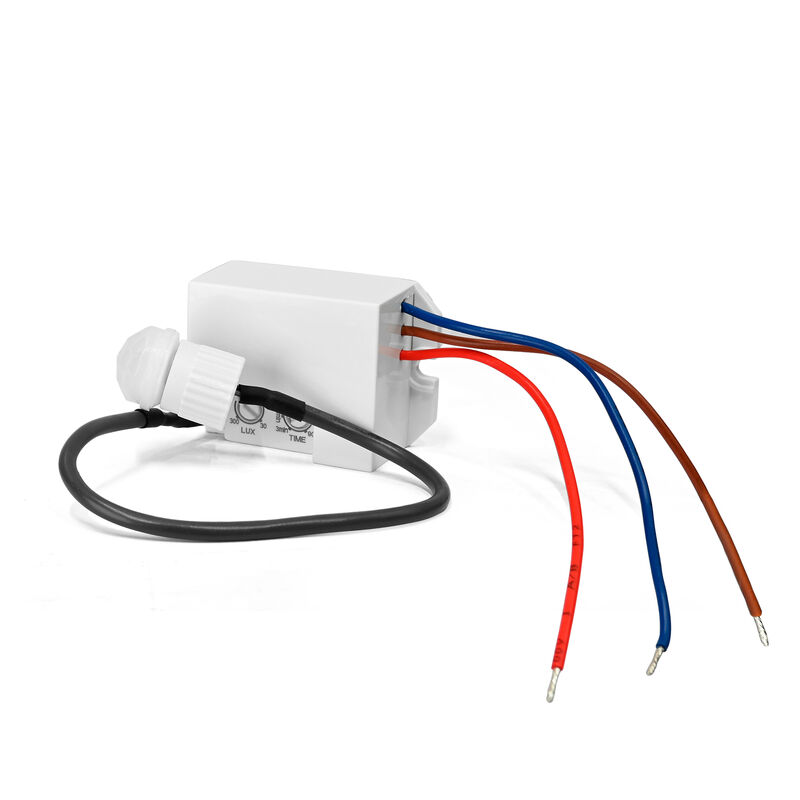

PIR motion and light sensor VIDEX VL-SPR24 800W IP65

PIR motion and light sensor VIDEX VL-SPR24 800W IP65

Index: VL-SPR24

Add to favorites Add to compare

Parameters

EAN:

4820246488471
Rated voltage, frequency:

AC 220-240 V, 50/60 Hz
Place of installation :

Ceiling, Flat surface, Wall
Place of application:

indoor, outdoor
Mounting hole size:

Ø13 mm
Housing colour:

White
- Input interface:

  Free wire ends
- Electric shock protection class:

  II
- Ultraviolet radiation:

  no
- Motion sensor:

  yes
- Sensor type:

  PIR
- Sensor detection angle:

  120°, 360°
- Sensor time delay:

  10 s - 8 min
- Sensor detection distance:

  2 - 8 m
- Operating temperature range:

  -20° +40°C
- Sensor light threshold:

  3-2000 Lx
- Maximum active power load:

  800 W
- Maximum inductive power load:

  300 W
- Ingress protection:

  IP65
- Housing material:

  PC
- Height:

  23.5 mm
- Width:

  18 mm
- Depth:

  18 mm
- In the package:

  1 pc.
- Outer box:

  20 pcs.
- Unit nett weight:

  47g
- Warranty:

  3 years

See all specifications

Description

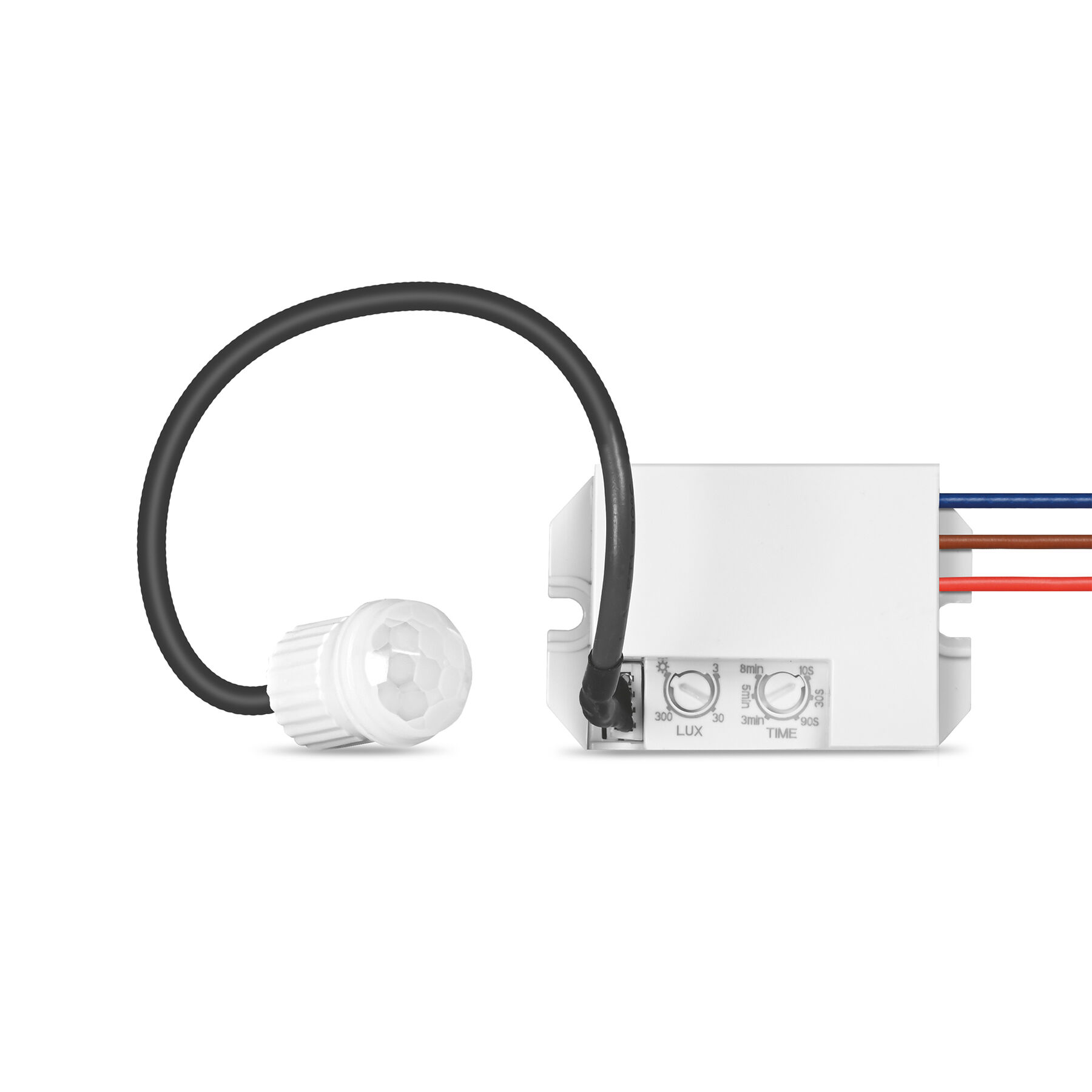

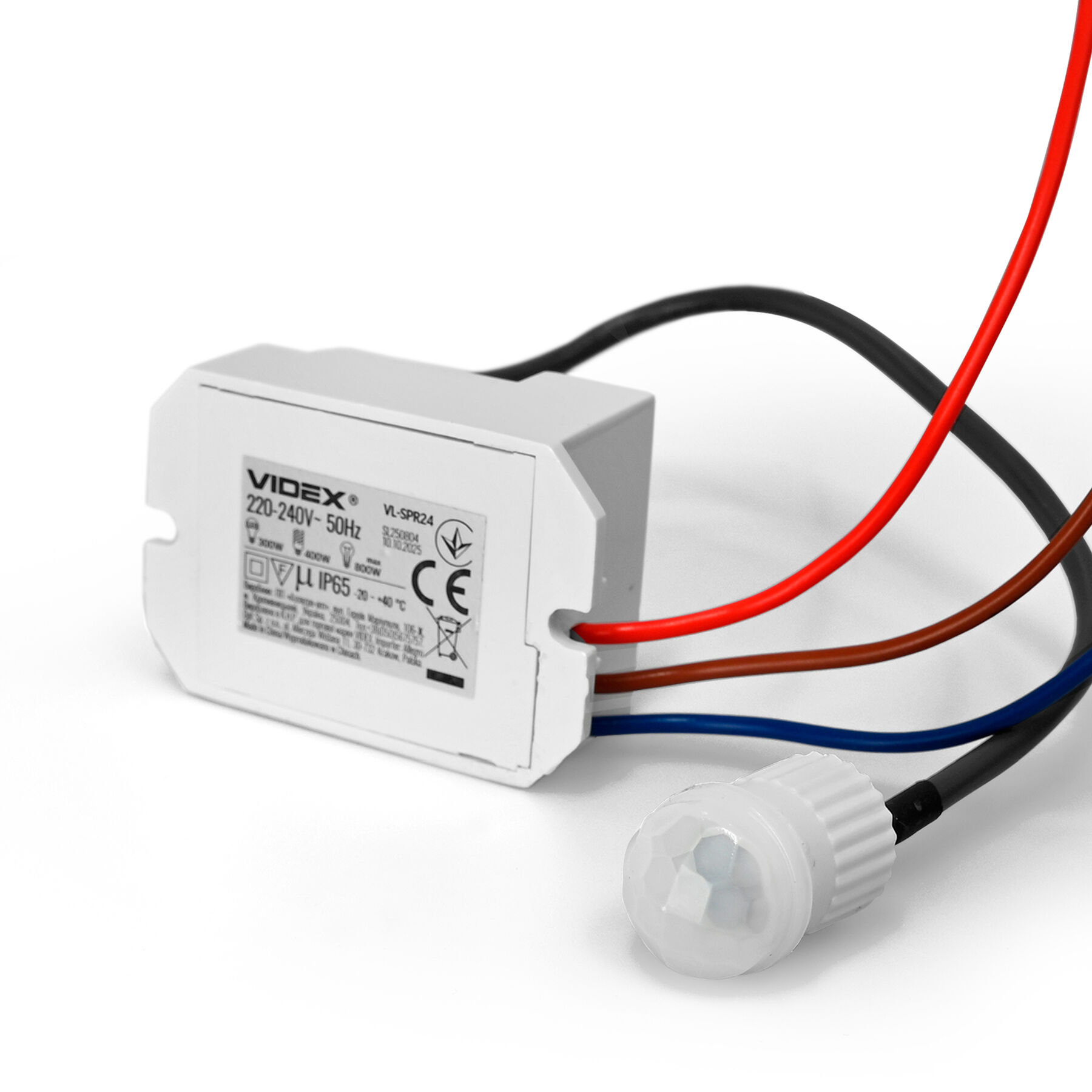

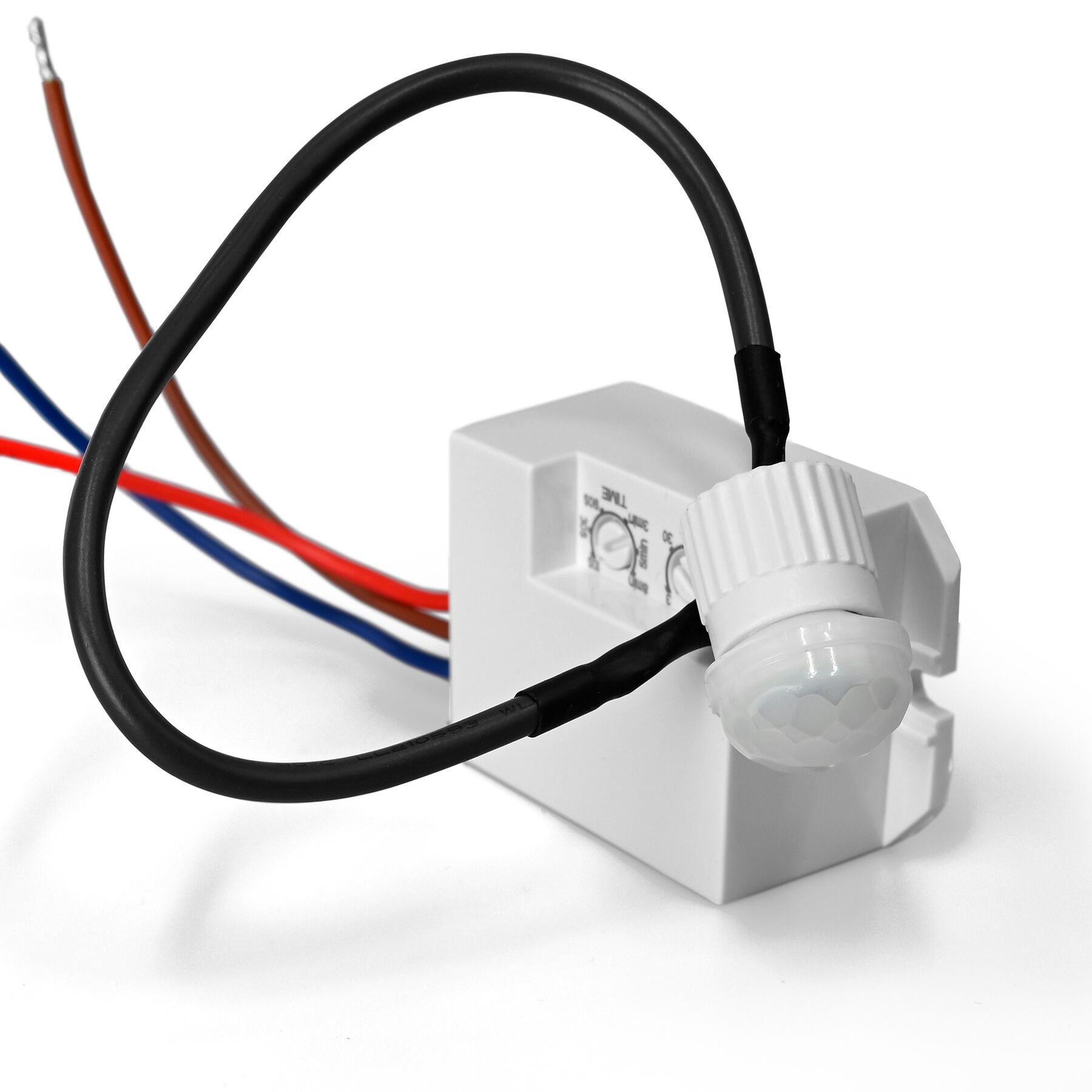

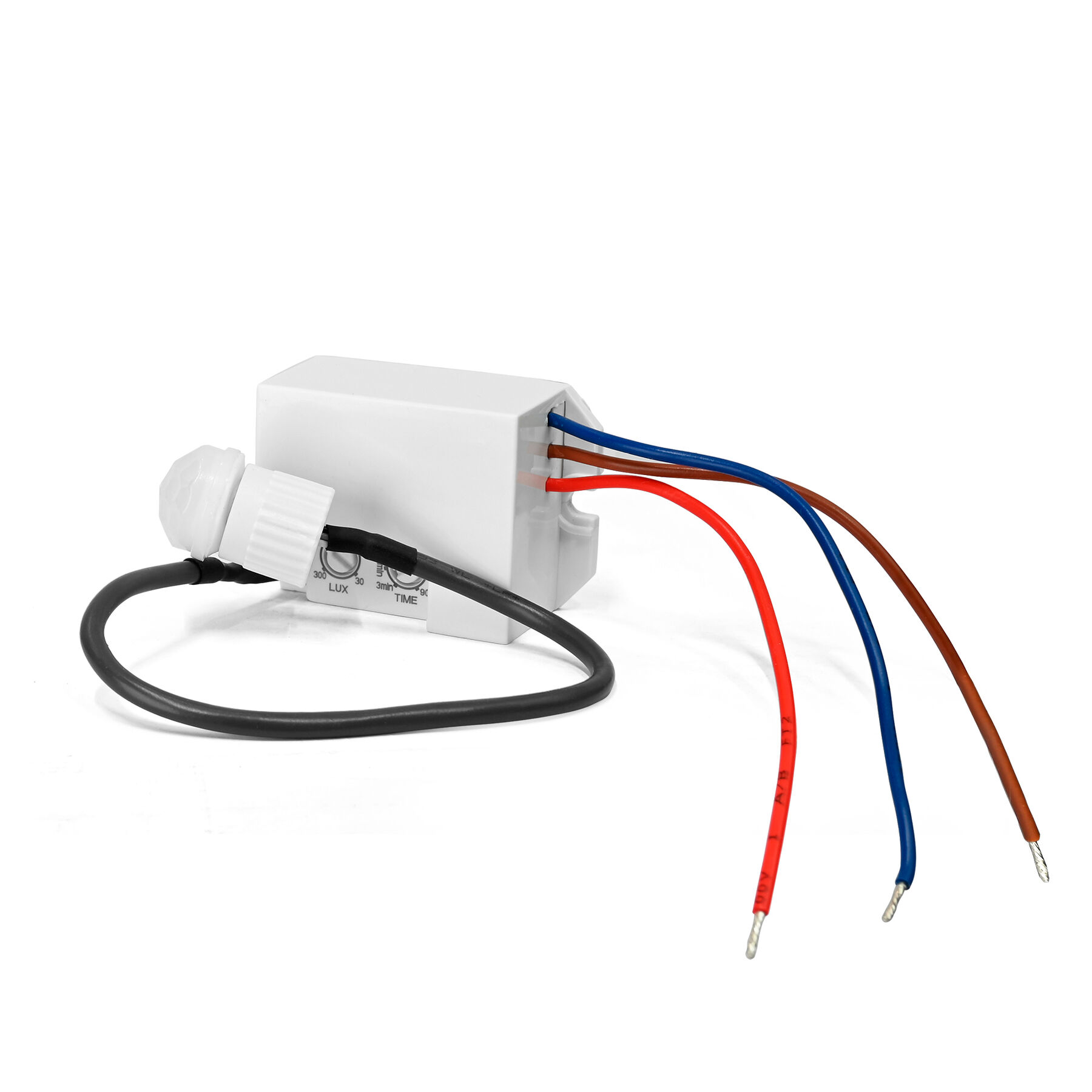

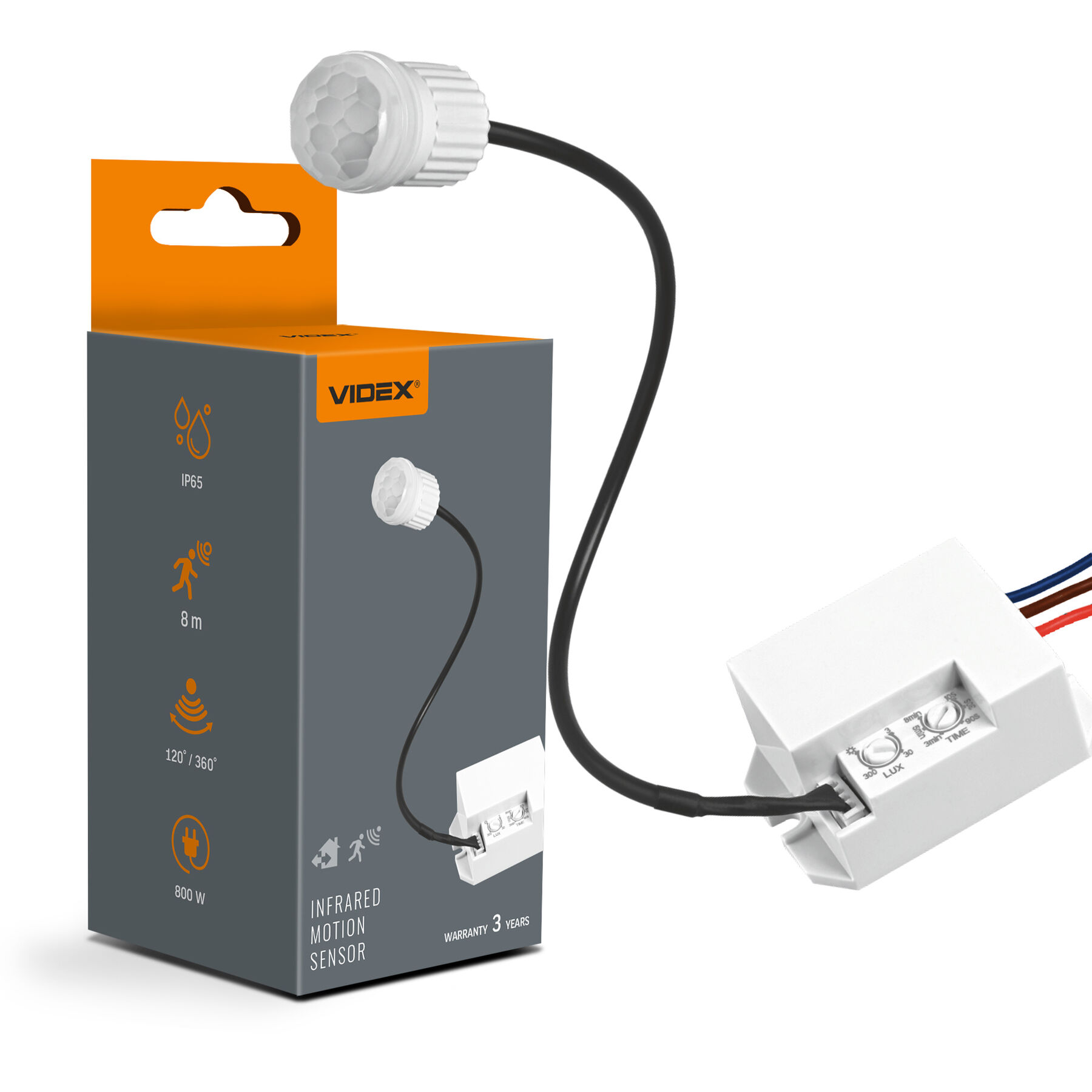

PIR motion and light sensor VIDEX VL-SPR24 helps control the lighting system and detects the movement of objects. The sensor automatically turns the lighting on and off depending on motion detected within the sensor’s detection range. It is ideal for lighting industrial and warehouse facilities, park areas, residential surroundings, recreation areas, roads, and similar locations. The sensor is designed for recessed installation in a wall or ceiling. It is rain-resistant and features IP65 protection, allowing it to be used both indoors and outdoors. The recommended installation height is 1.8–2.5m when mounted on a wall and 2.2–4m when mounted on a ceiling.

- The time delay is adjustable within the range of 10 s – 8 min.
- Thanks to the IP65 protection rating, the sensor is protected against dust and water, allowing it to be safely used both in high-humidity indoor environments and outdoors without damage to the device.
- Response speed: 0.6–1.5 m/s.

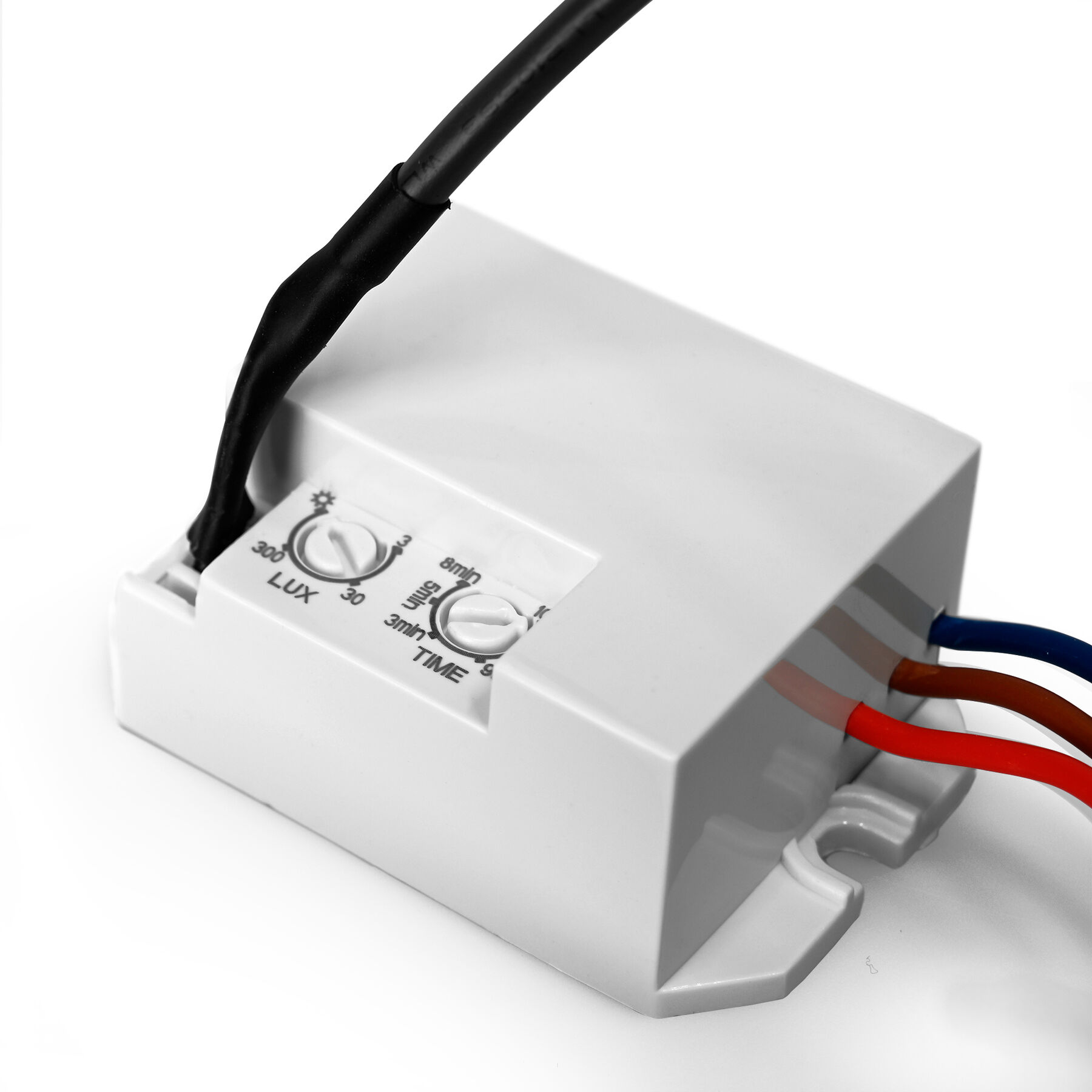

- Allows adjustment of the ambient light threshold (LUX) in the range from 3Lx to 2000Lx.
- No-load power consumption: <0.6W.
- Detection distance: up to 6m when wall-mounted and up to 8m when ceiling-mounted (at temperature <24°C).
- Maximum load power: incandescent lamp – 800W; fluorescent lamp – 400W; LED lamp – 300W.
- Detection angle: 360° when installed on horizontal surfaces and 120° when installed on vertical surfaces.

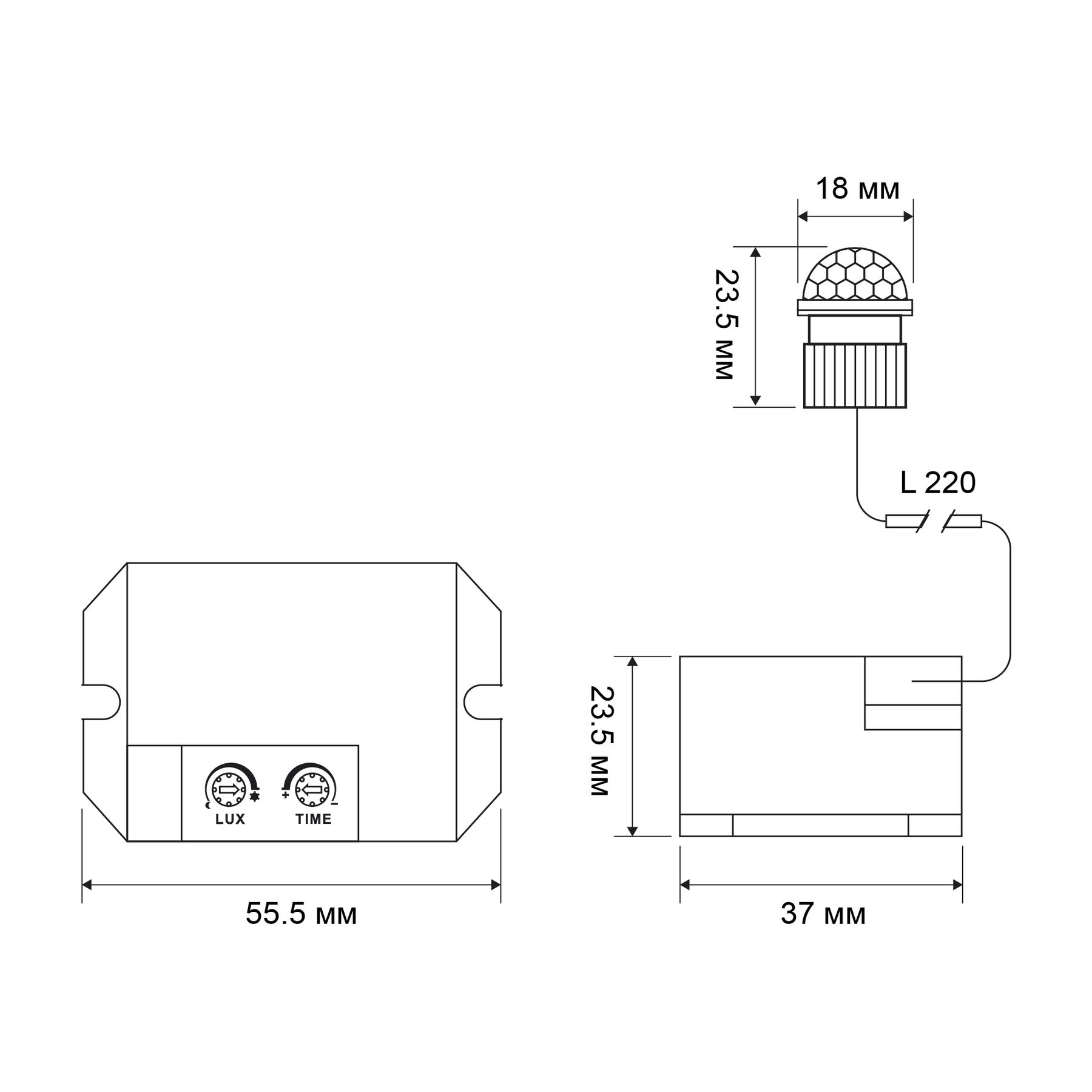

- Base dimensions: 55.5×37×23.5mm. Cable length: 22cm. Sensor size: Ø18×23.5mm.
- The product warranty period is 3 years.
