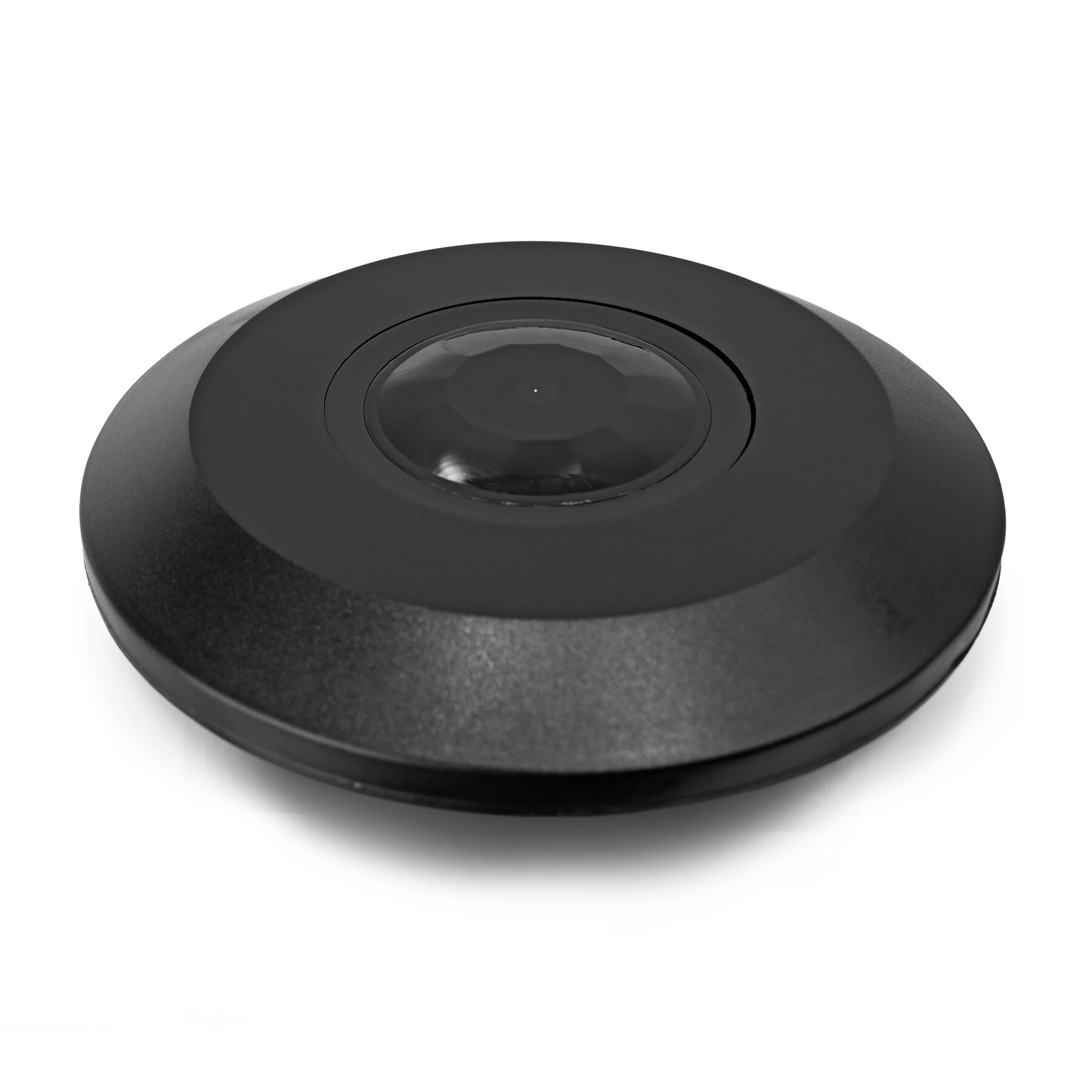

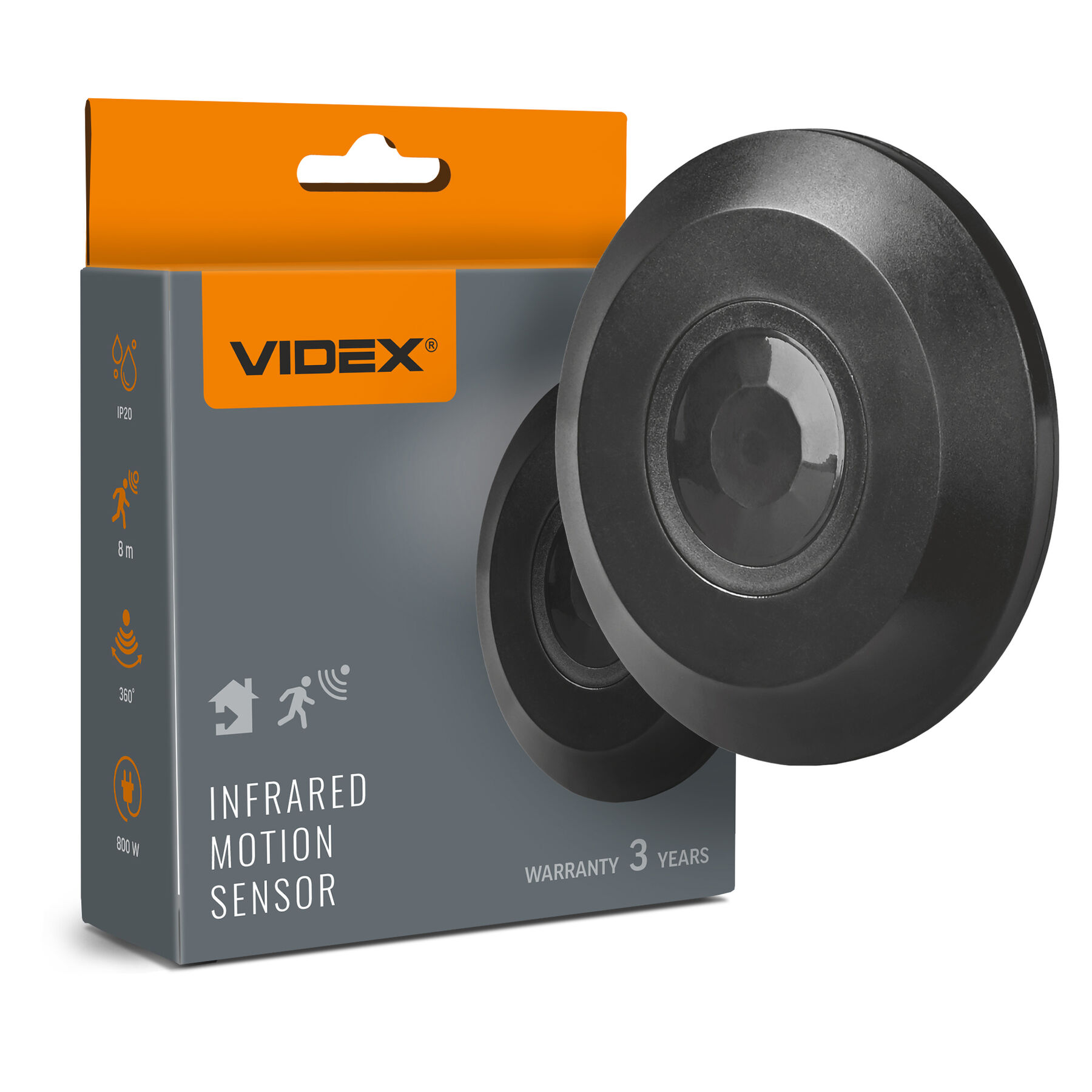

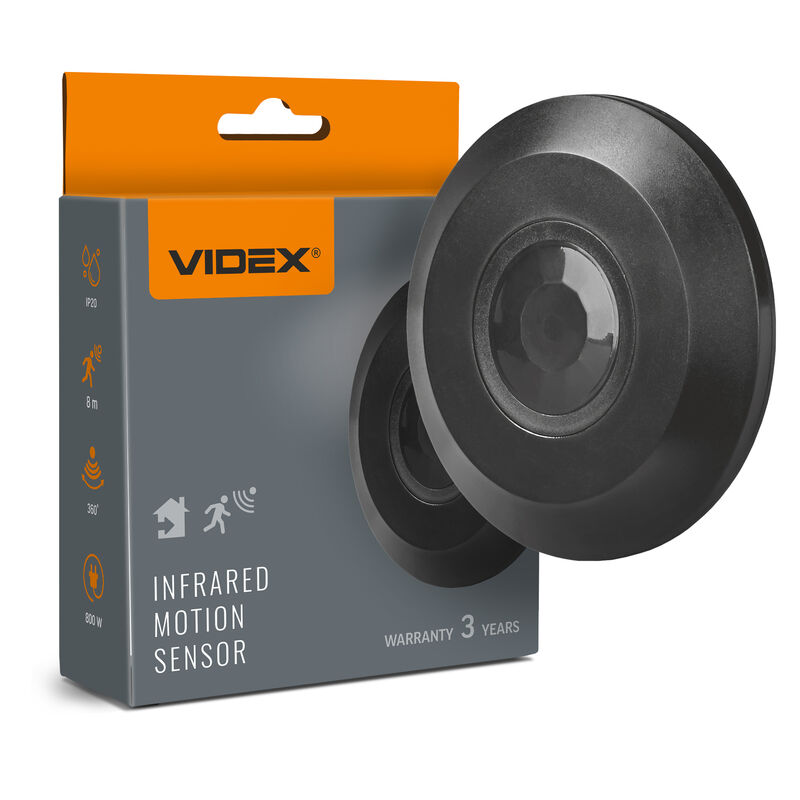

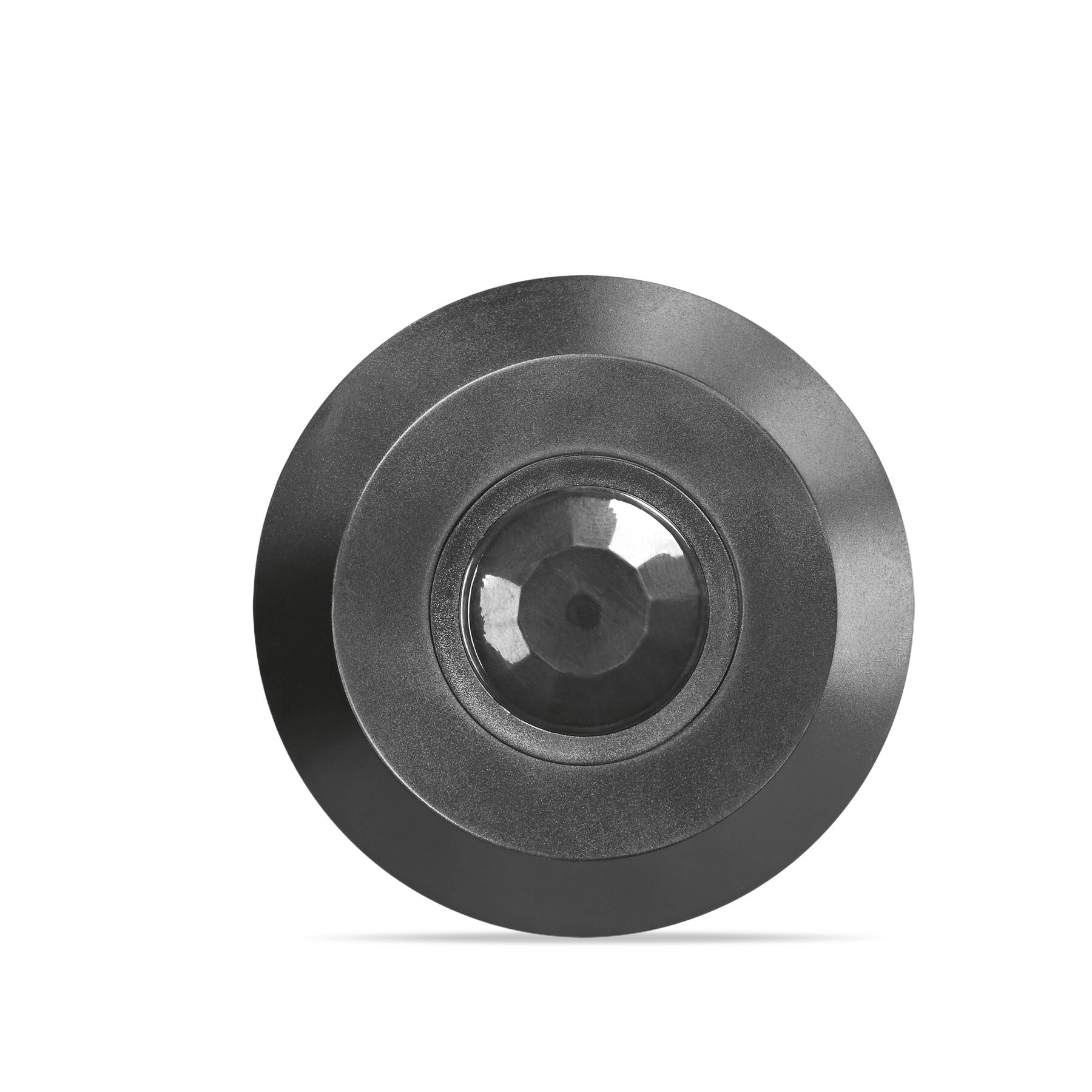

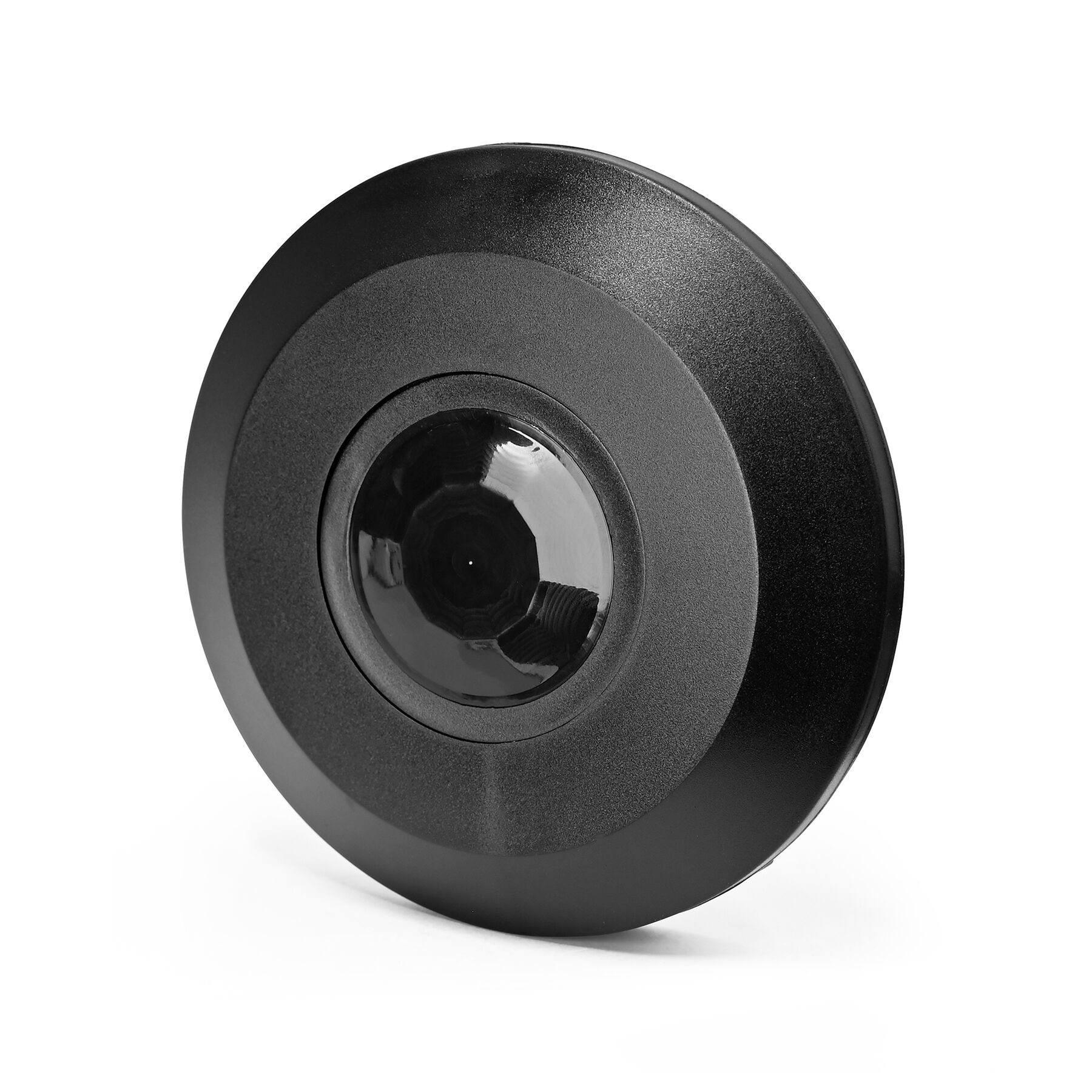

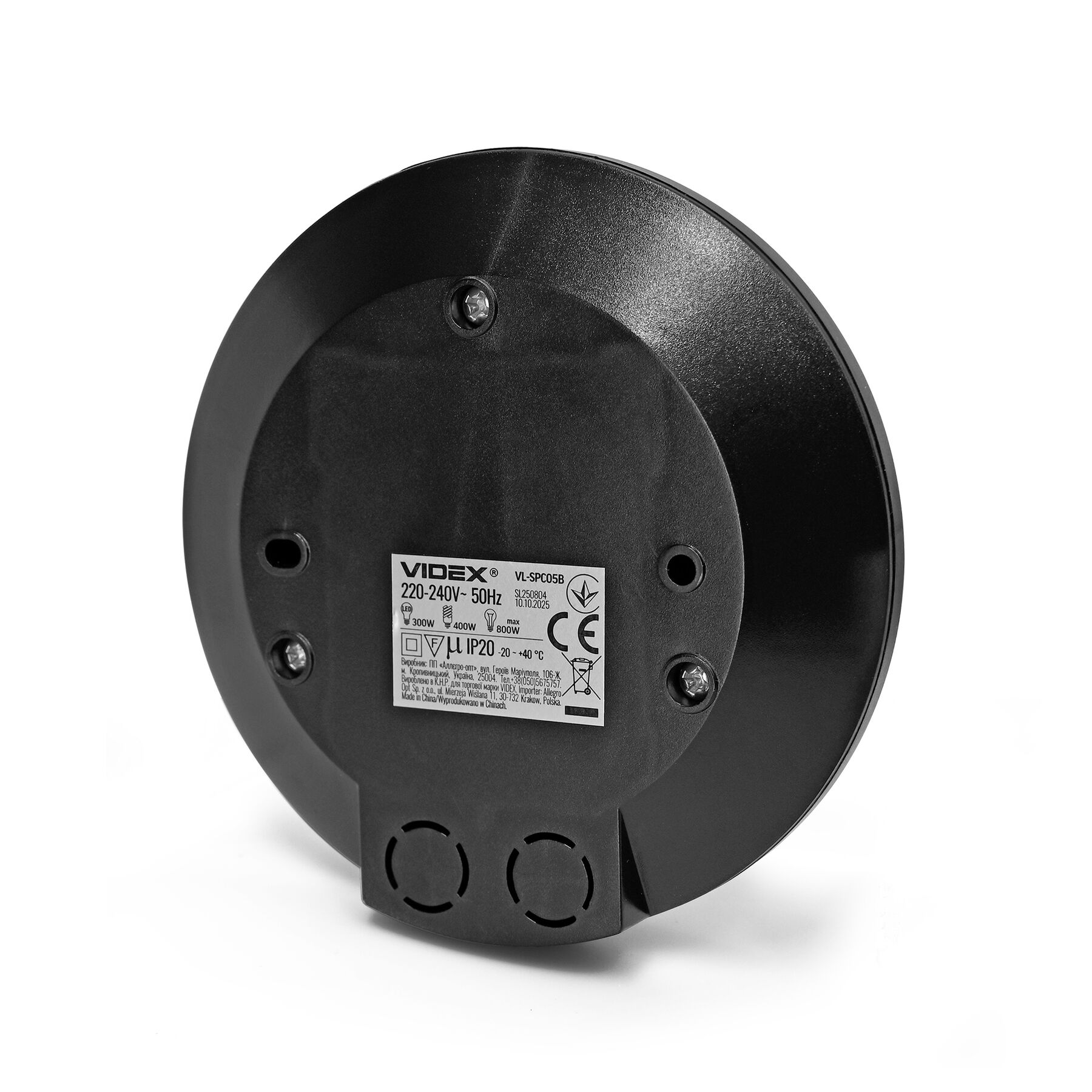

PIR motion and light sensor VIDEX VL-SPC05B 800W Black

PIR motion and light sensor VIDEX VL-SPC05B 800W Black

Index: VL-SPC05B

Add to favorites Add to compare

Parameters

EAN:

4820246488433
Rated voltage, frequency:

AC 220-240 V, 50/60 Hz
Place of installation :

Ceiling
Place of application:

indoor
Housing colour:

Black
Input interface:

Terminal block
- Electric shock protection class:

  II
- Ultraviolet radiation:

  no
- Motion sensor:

  yes
- Sensor type:

  PIR
- Sensor detection angle:

  360°
- Sensor time delay:

  10 s - 15 min
- Sensor detection distance:

  2 - 8 m
- Operating temperature range:

  -20° +40°C
- Sensor light threshold:

  3-2000 Lx
- Maximum active power load:

  800 W
- Maximum inductive power load:

  300 W
- Ingress protection:

  IP20
- Housing material:

  PC

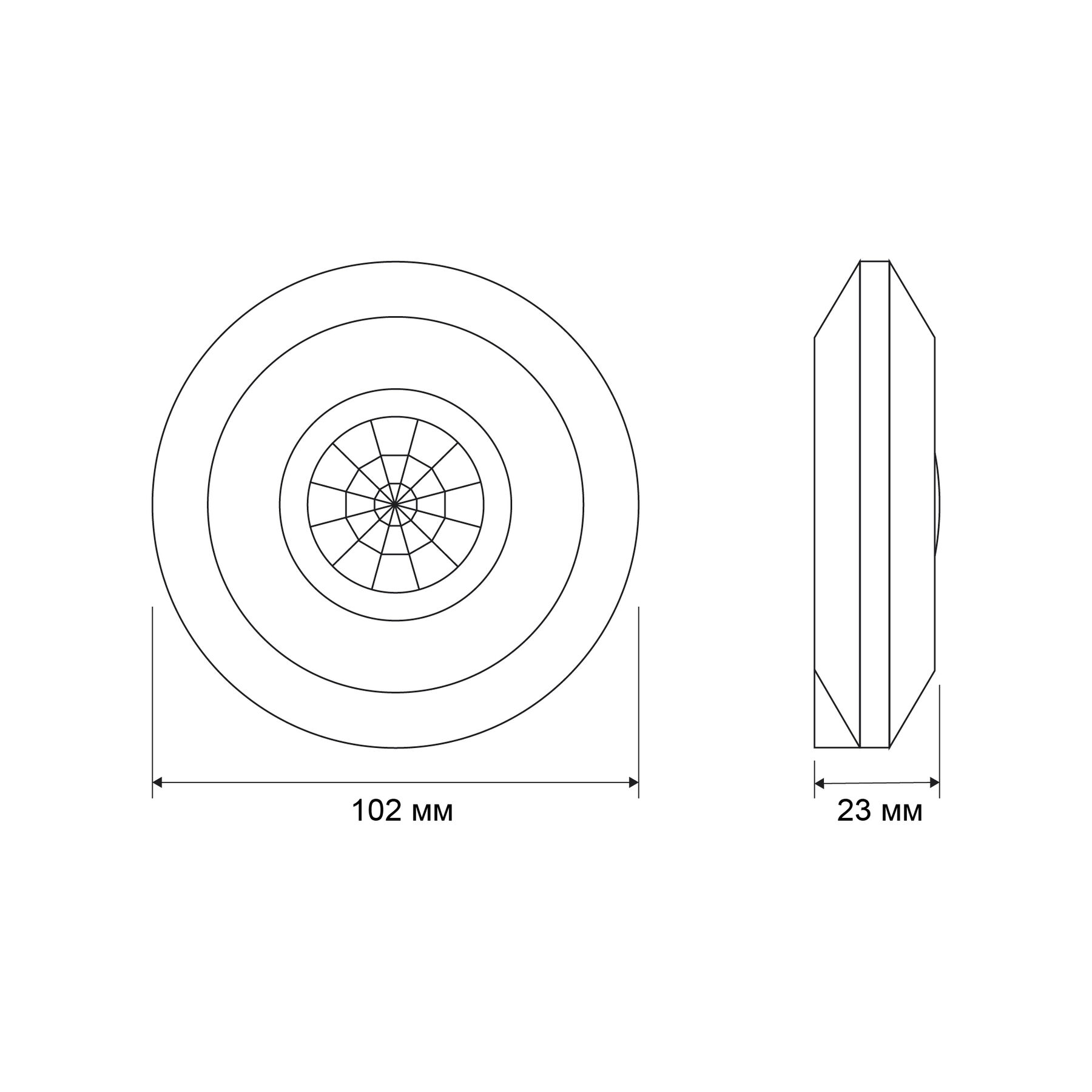

- Height:

  102 mm
- Width:

  102 mm

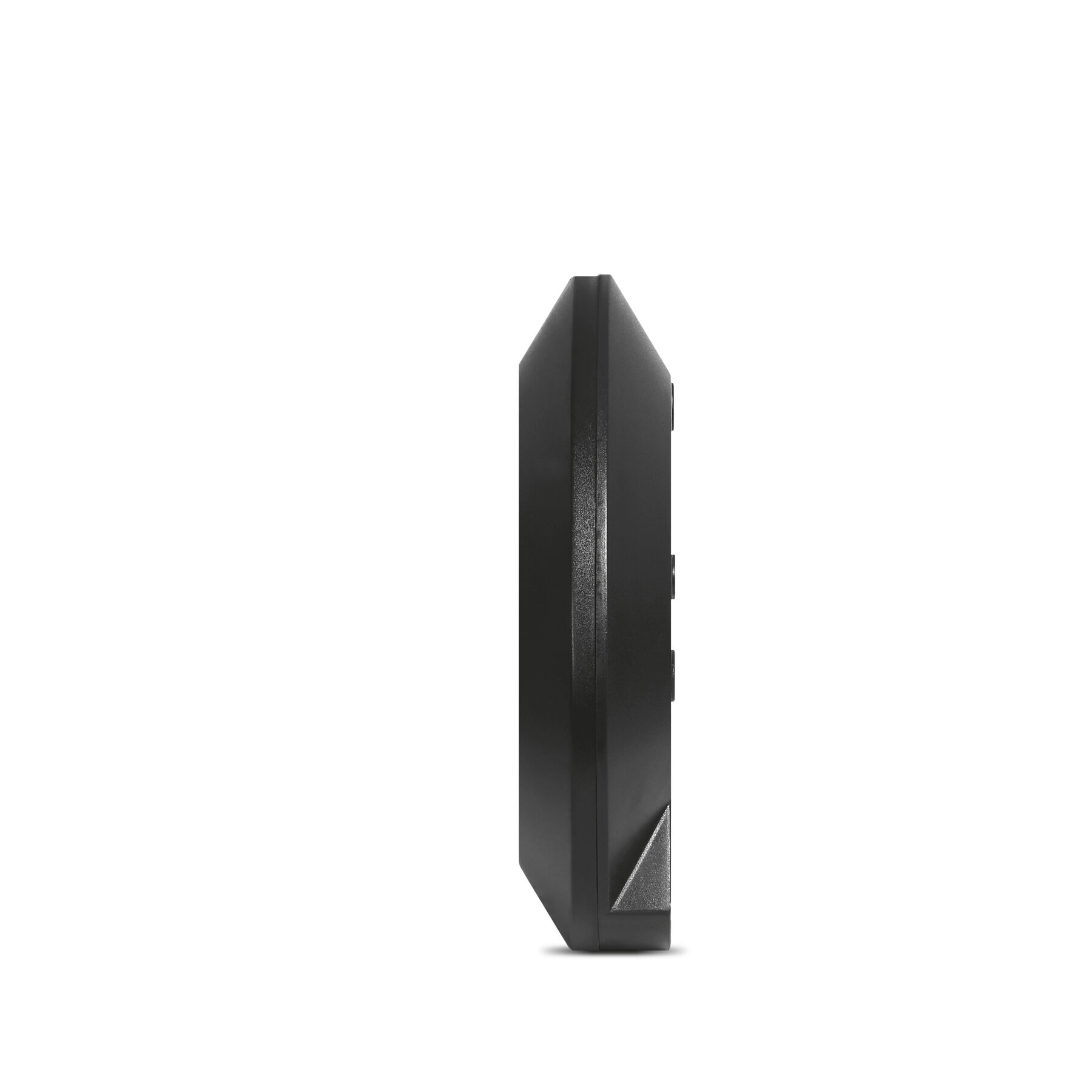

- Depth:

  23 mm

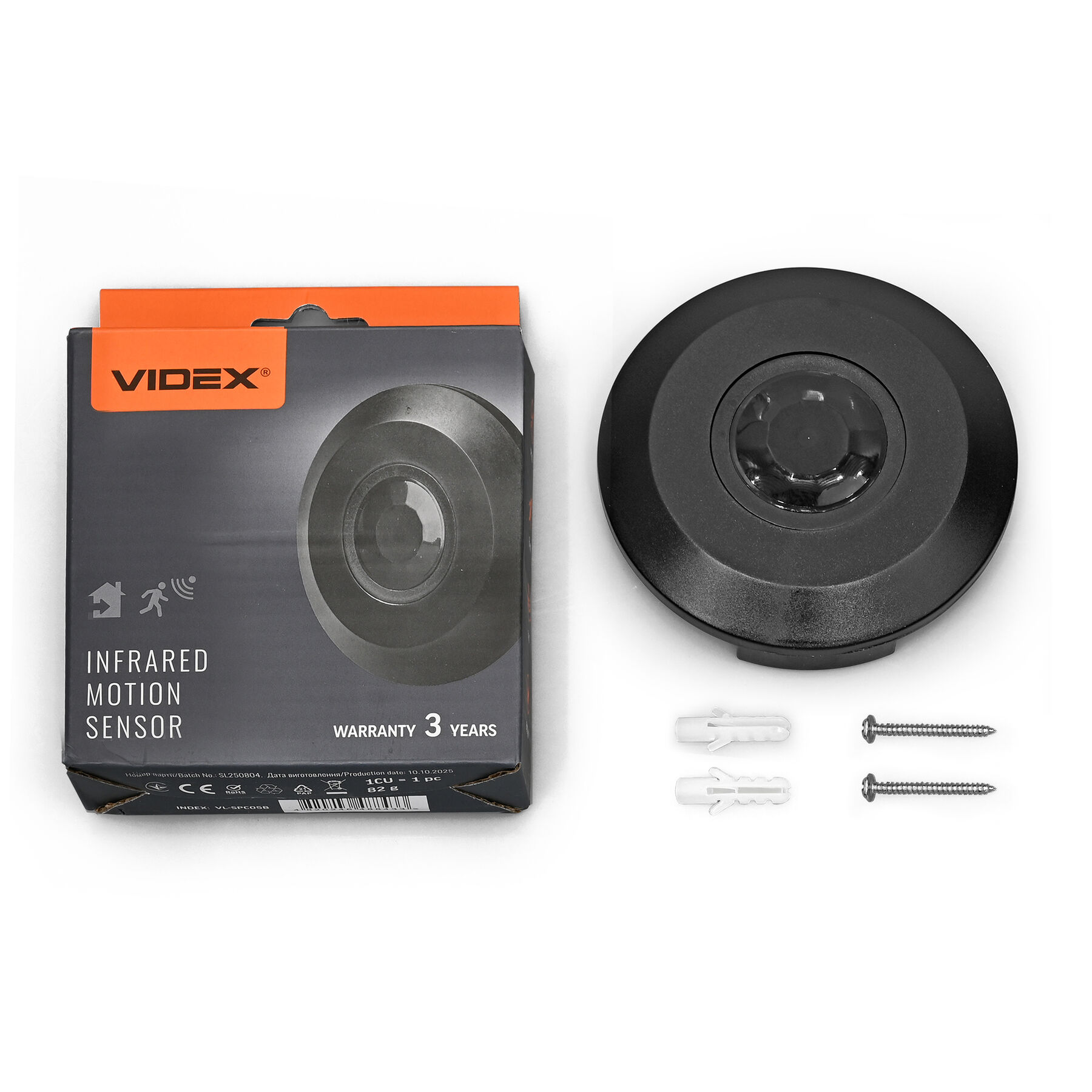

- In the package:

  1 pc.
- Outer box:

  20 pcs.
- Unit nett weight:

  82g
- Warranty:

  3 years

See all specifications

Description

PIR motion and light sensor VIDEX VL-SPC05 helps control the lighting system in a room. The sensor automatically turns the lighting on and off depending on the detection of movement within the sensor’s detection range. It is ideal for lighting corridors, apartments, office premises, retail areas, educational institutions, and other dry indoor spaces. The recommended installation height is 2.2–4m.

- The time delay is adjustable within the range of 10 s – 15 min.
- The device has an IP20 dust and moisture protection rating, which allows the sensor to be installed only in dry indoor environments.
- Response speed: 0.6–1.5 m/s.
- Allows adjustment of the ambient light threshold (LUX) in the range from 3Lx to 2000Lx.
- No-load power consumption: <0.6W.
- Detection distance: up to 8 m (at temperature <24°C).
- Maximum load power: incandescent lamp – 800W; fluorescent lamp – 400W; LED lamp – 300W.
- The product warranty period is 3 years.
