Light sensor VIDEX 25A photometrical

Light sensor VIDEX 25A photometrical

Index: VL-SN03

Add to favorites Add to compare

Parameters

EAN:

4820118299280
Rated voltage, frequency:

AC 220-240 V, 50/60 Hz
Place of installation :

Ceiling, Flat surface, Wall
Place of application:

indoor, outdoor
Housing colour:

White
Input interface:

Free wire ends
- Electric shock protection class:

  II
- Ultraviolet radiation:

  no
- Motion sensor:

  yes
- Sensor type:

  Microwave
- Operating temperature range:

  -20° +40°C
- Sensor activation threshold:

  <10-50 Lx
- Sensor deactivation threshold:

  >50-100 Lx
- Maximum load:

  25A
- Ingress protection:

  IP44
- Housing material:

  ABS, PE (Polyethylene)

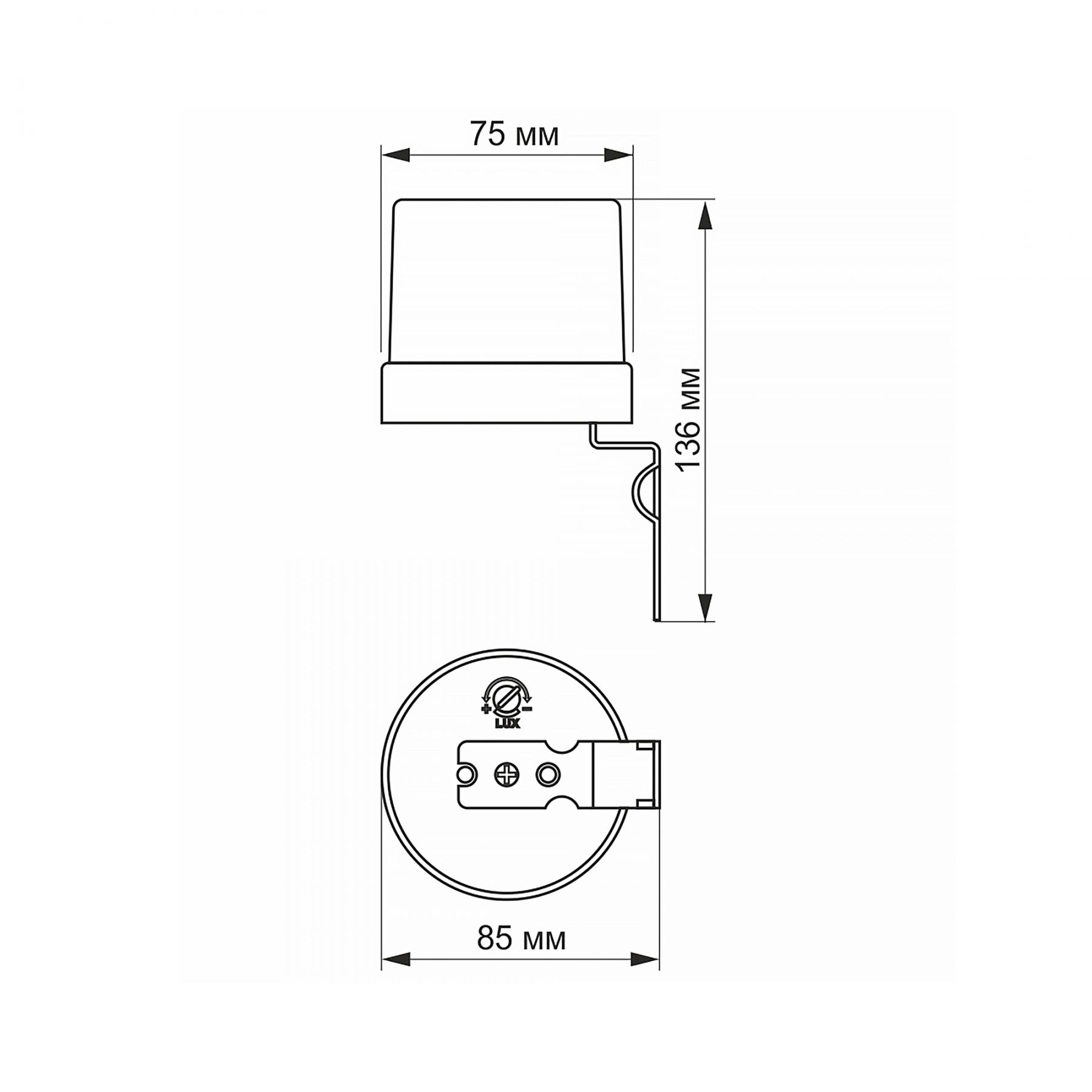

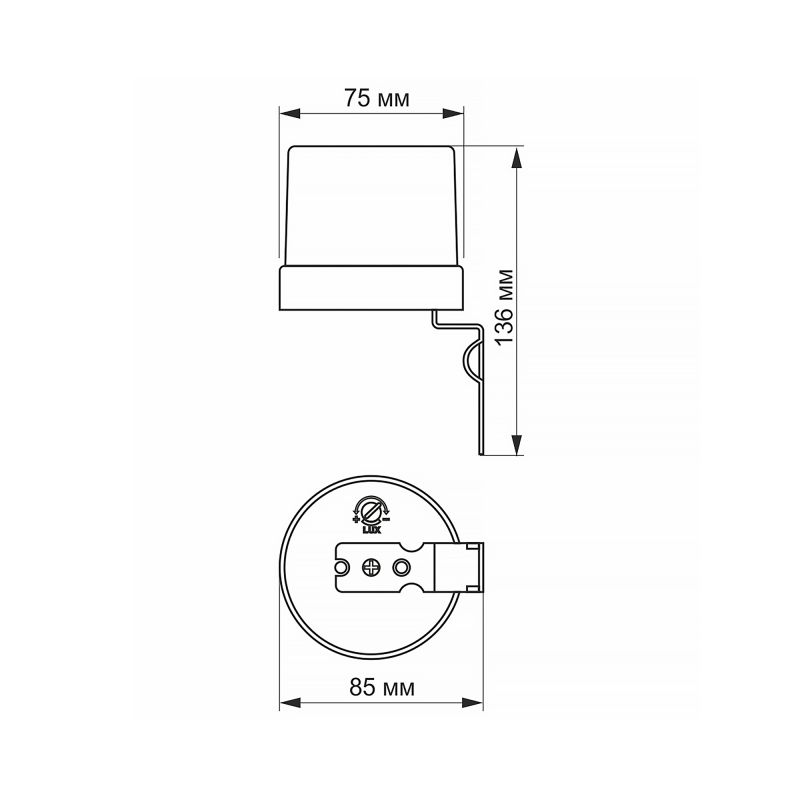

- Height:

  136 mm
- Width:

  85 mm
- Depth:

  75 mm
- In the package:

  1 pc.
- Outer box:

  50 pcs.
- Unit nett weight:

  132g
- Warranty:

  2 years

See all specifications

Description

Photometrical light sensor is an electrical device that enables control of indoor or outdoor lighting systems according to the ambient light level. Ambient temperature and humidity do not affect the sensor’s activation. The adjustable light threshold allows you to set the sensor within the range:
<10–50 Lx (ON)
>50–100 Lx (OFF)
The sensor monitors the load and operates only at night. It is used for lighting indoor spaces, residential areas, recreational zones, and roads. It helps save on electricity costs.
