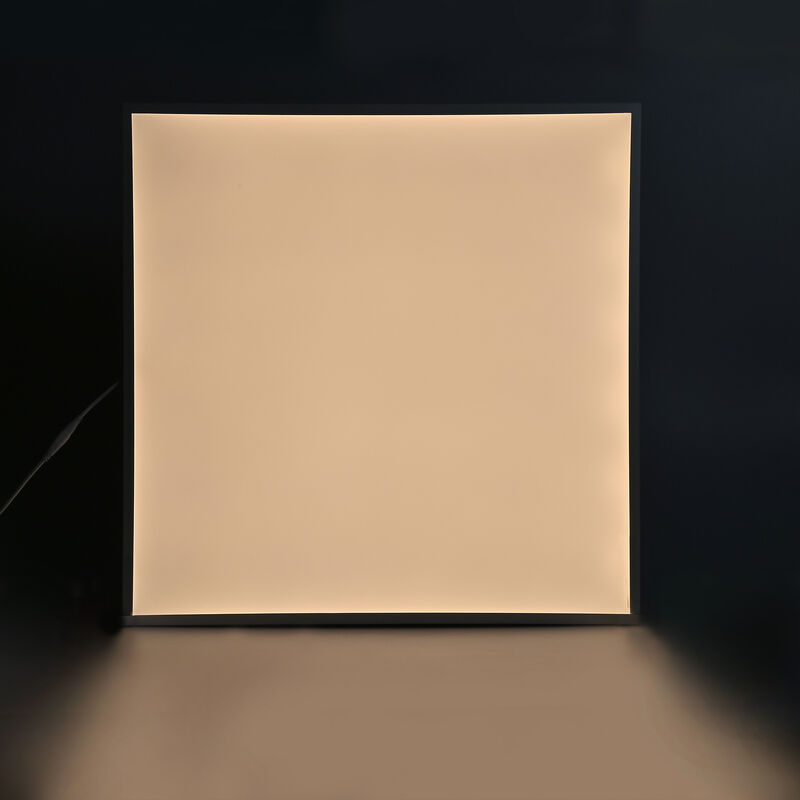

LED Recessed-mounted Panel VIDEX VL-PB36CW 36W 3000-4000-6000K
LED Recessed-mounted Panel VIDEX VL-PB36CW 36W 3000-4000-6000K
-
EAN:4820246487825
-
Standard size:60 x 60 cm
-
Maximum power:36 W
-
Luminous flux of the luminaire:5760 Lm
-
Useful luminous flux of the contained light source (Φuse):6700 Lm
-
Light source or containing product:Containing product
-
-
Energy efficiency class of the contained light source:B
-
Correlated color temperature:6000K (cold white), 4000K (neutral white), 3000K (warm white)
-
Rated voltage, frequency:AC 220-240 V, 50/60 Hz
-
Beam angle:160°
-
Place of installation :Armstrong ceiling, Ceiling
-
Place of application:indoor
-

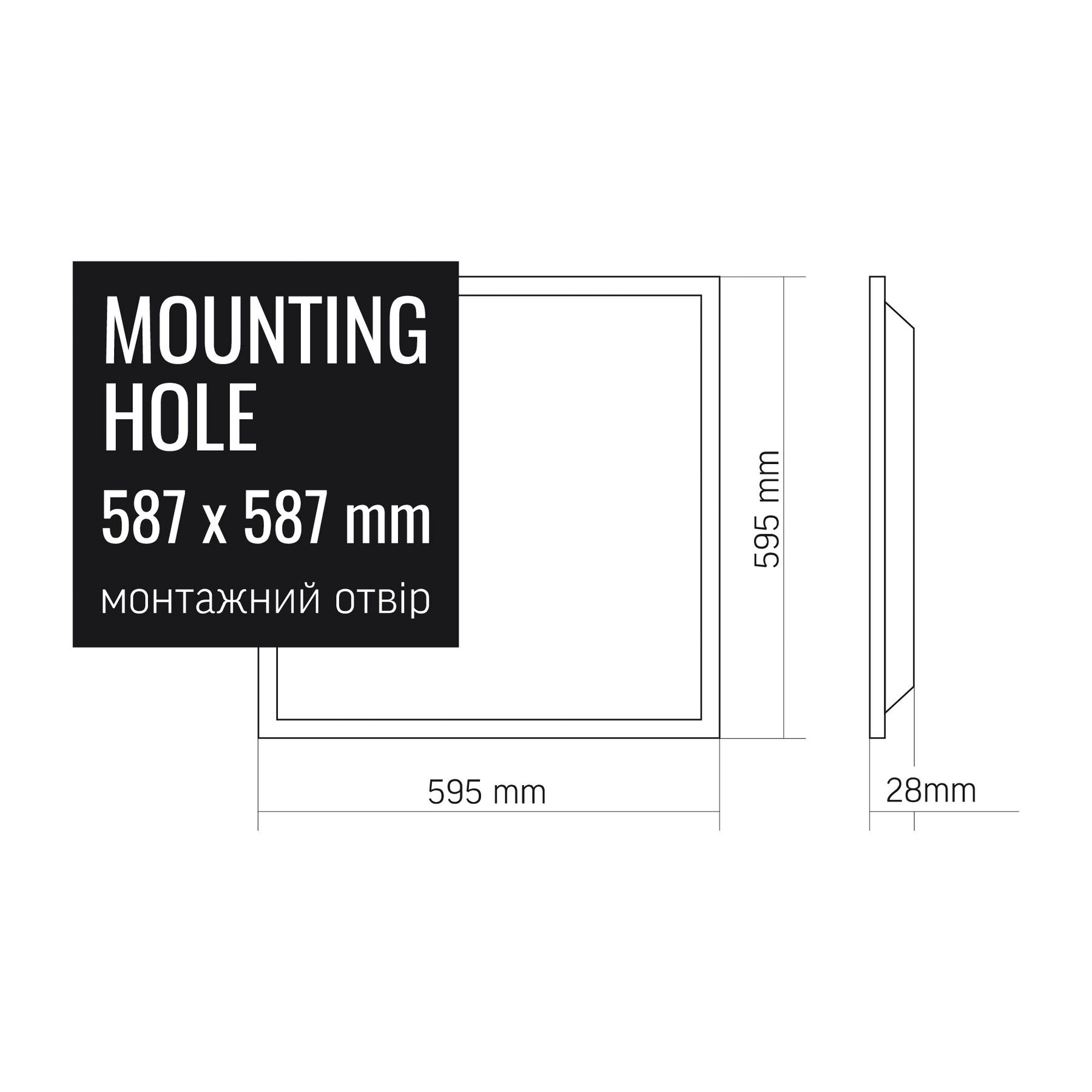

Mounting hole size:587 x 587 mm
-
Rated current:180 mA
-
Displacement factor (cos φ1):0.9
-
Color rendering index (CRI):Ra > 80
-
Lifetime (L70B50):30000 h
-
On/Off cycles:20000
-
Housing colour:White
-
Input interface:Terminal block
-
Useful luminous flux of the light source reference:in a sphere (360°)
-
Electric shock protection class:III
-
Diffuser material:Polystyrene (PS)
-
Ultraviolet radiation:no
-
Operating temperature range:-20° +40°C
-
Dimmable:no
-
Control gear replaceable:by a qualified specialist
-
Light source replaceable:by the producer
-
Mercury content:Does not contain
-
Ingress protection:IP20
-
Housing material:Aluminum, Iron alloy
-
Height:595 mm
-
Width:595 mm
-
Depth:28 mm
-
In the package:1 pc.
-
Outer box:6 pcs.
-
Unit nett weight:1.35kg
-
Warranty:3 years
-
LED Recessed-mounted Panel VIDEX VL-PB36CW 36W 3000-4000-6000K is designed for lighting offices, industrial facilities, public buildings, and commercial areas. It can be used in almost any interior, taking up minimal space while complementing the overall design. Both recessed and surface-mounted installation options are available. Various installation options are available for suspended ceilings. The panel can be installed on both ceilings and walls. Recessed installation can be performed by replacing one of the decorative panels in an Armstrong-type suspended ceiling with an LED panel. Surface-mounted installation requires additional accessories, which are not included in the kit.

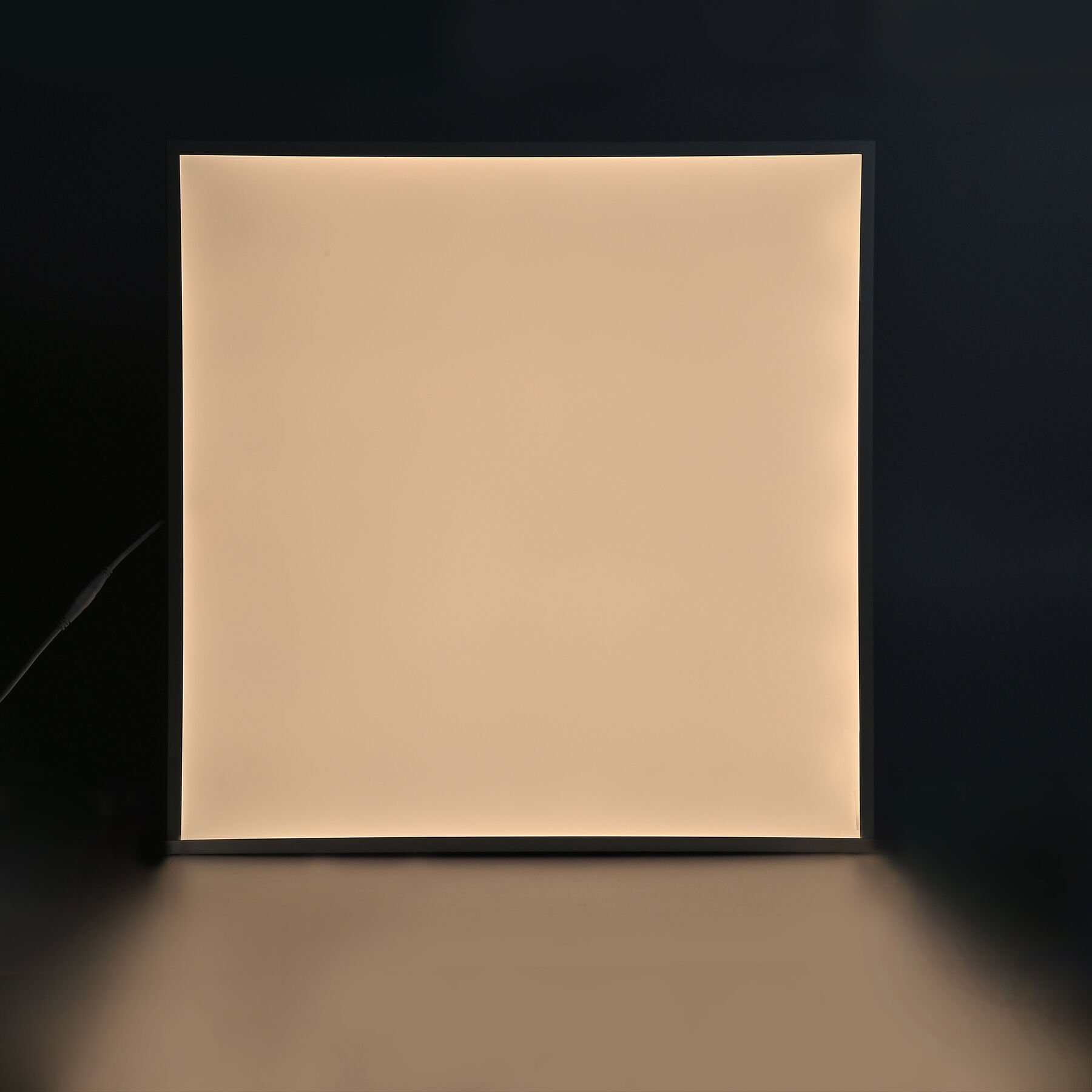

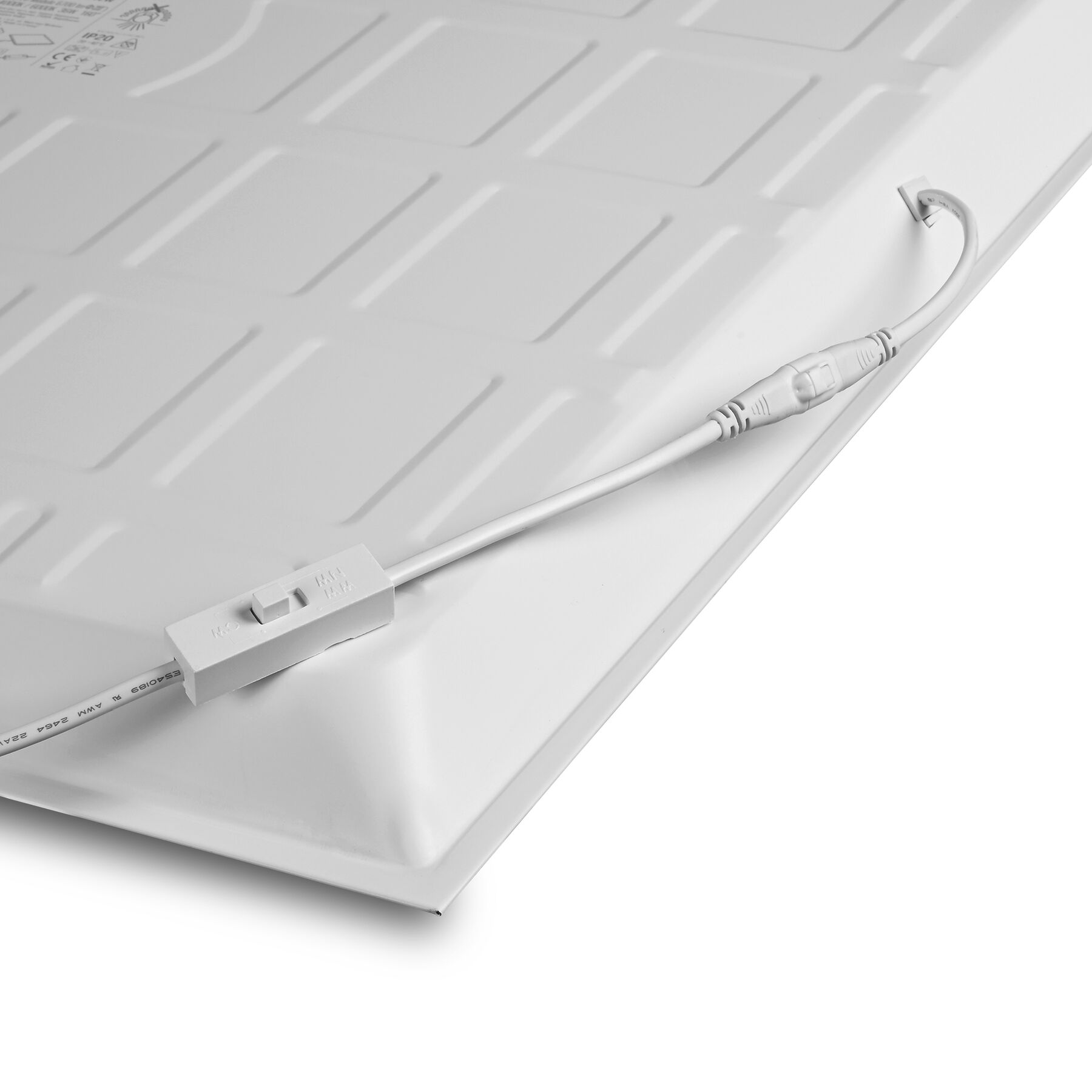

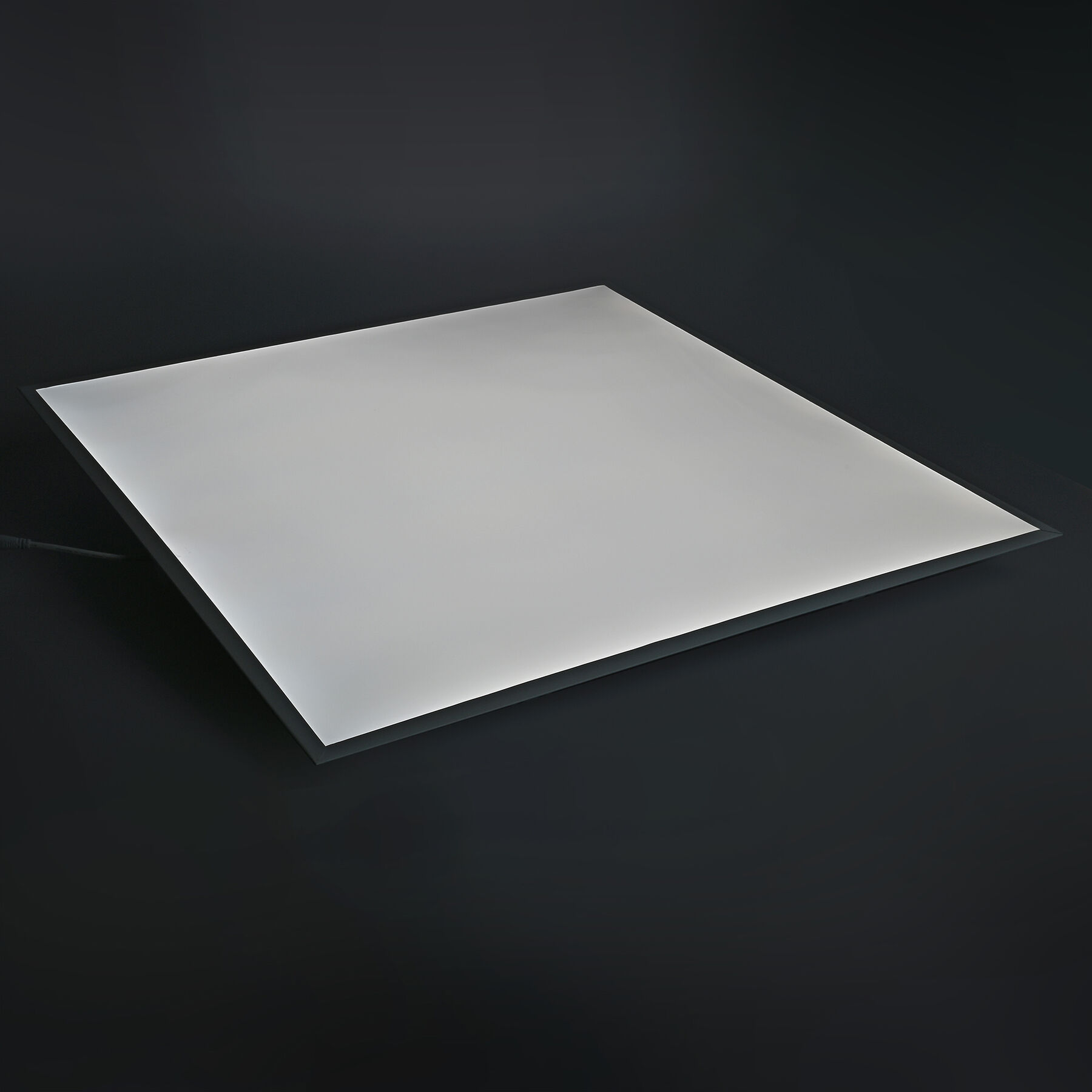

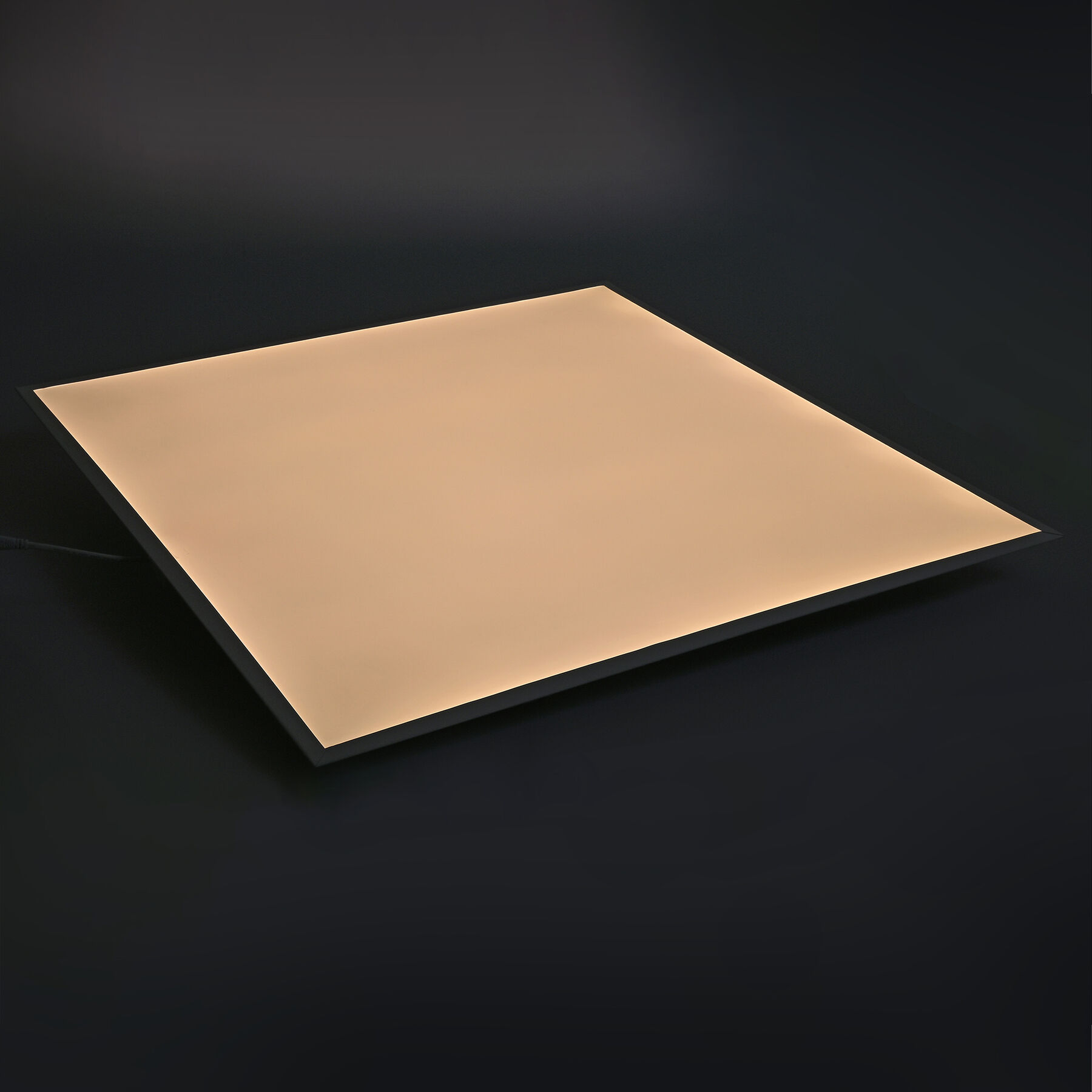

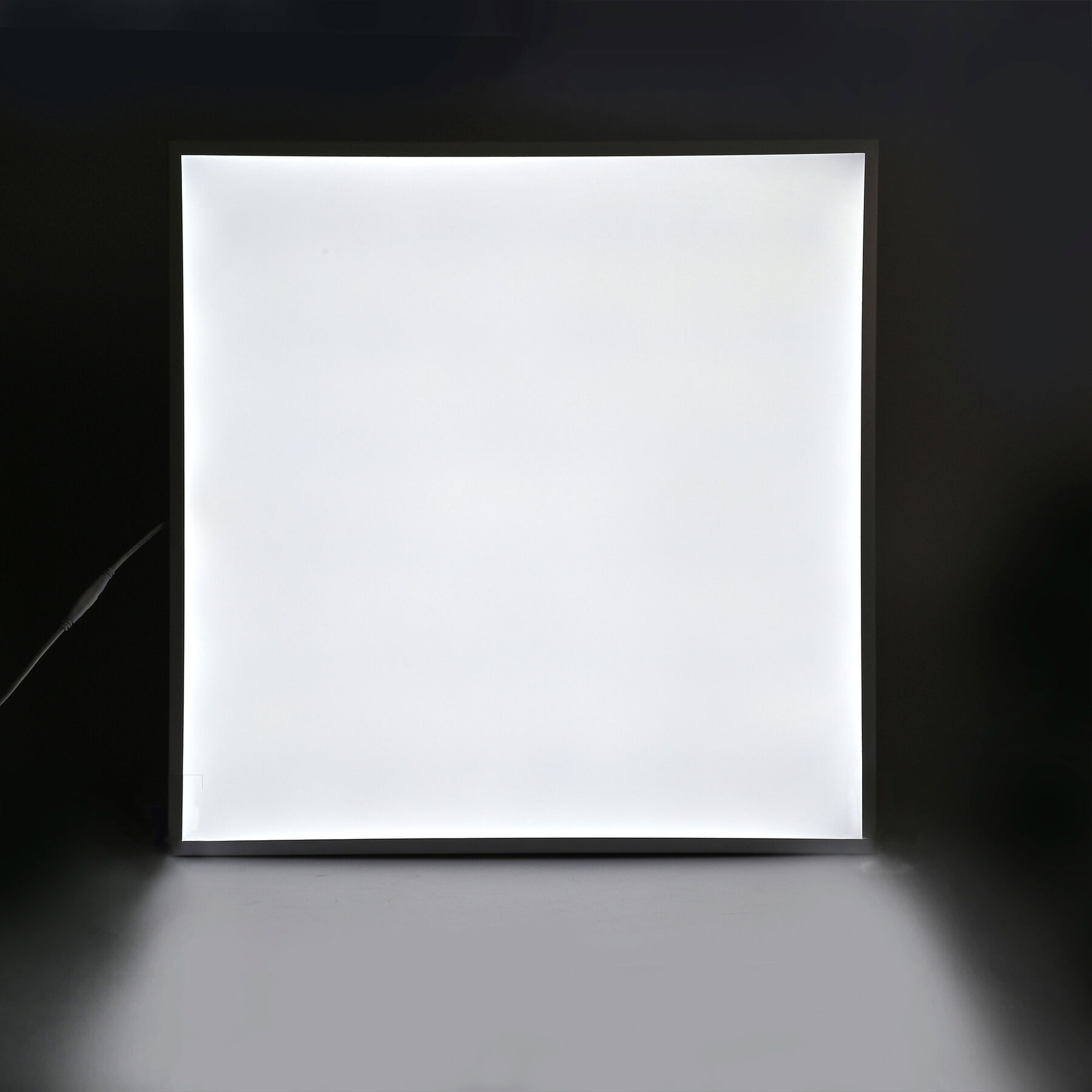

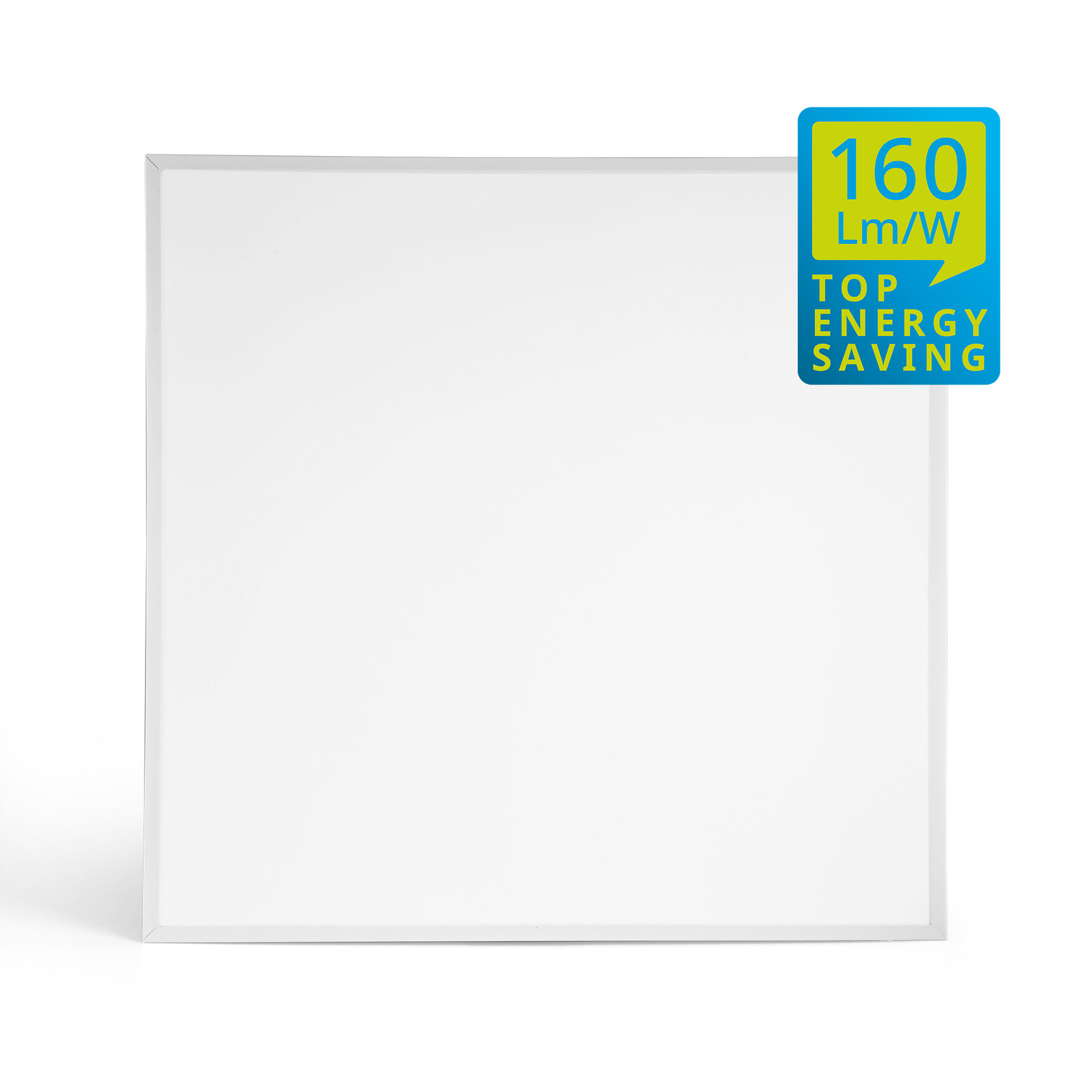

The panel features high efficiency with a luminous efficacy of 160Lm/W. The total luminous flux is 5760Lm. The light source consists of high-power LEDs with lenses that generate minimal heat and provide high-quality, uniform illumination. The key feature of this model is the ability to switch between three color temperatures: 3000K/ 4000K/ 6000K. The color temperature can be adjusted using the switch located on the back of the housing by moving it to the desired position. The beam angle of 160° ensures wide and even illumination of the space. One solution for a wide range of applications!
During operation, the panel produces no flickering, reducing eye strain, and emits no infrared or ultraviolet radiation. It withstands up to 20 000 switching cycles. The service life is 30 000 hours. The long-lasting performance is confirmed by a 3-year warranty. The panel helps reduce operating costs thanks to the lack of need for repairs and replacement of lamps or components. Only safe and high-quality materials are used in production.
When connected directly to the power supply, the panel ensures stable operation. The operating voltage is 220-240V. It can be used in both low and high ambient temperatures. The panel must only be operated with the driver included in the kit. The use of multiple panels with a single driver is not allowed.
