LED Recessed-mounted Panel VIDEX-PANEL-LED-36W-PB364W-NW

LED Recessed-mounted Panel VIDEX-PANEL-LED-36W-PB364W-NW

Parameters
  • EAN:
    5904405542651
  • Standard size:
    60 x 60 cm
  • Maximum power:
    36 W
  • Luminous flux of the luminaire:
    5600 Lm
  • Useful luminous flux of the contained light source (Φuse):
    6400 Lm
  • Light source or containing product:
    Containing product
    • Energy efficiency class of the contained light source:
      B
    • Correlated color temperature:
      4000K (neutral white)
    • Rated voltage, frequency:
      AC 220-240 V, 50/60 Hz
    • Beam angle:
      160°
    • Place of installation :
      Armstrong ceiling, Ceiling
    • Place of application:
      indoor

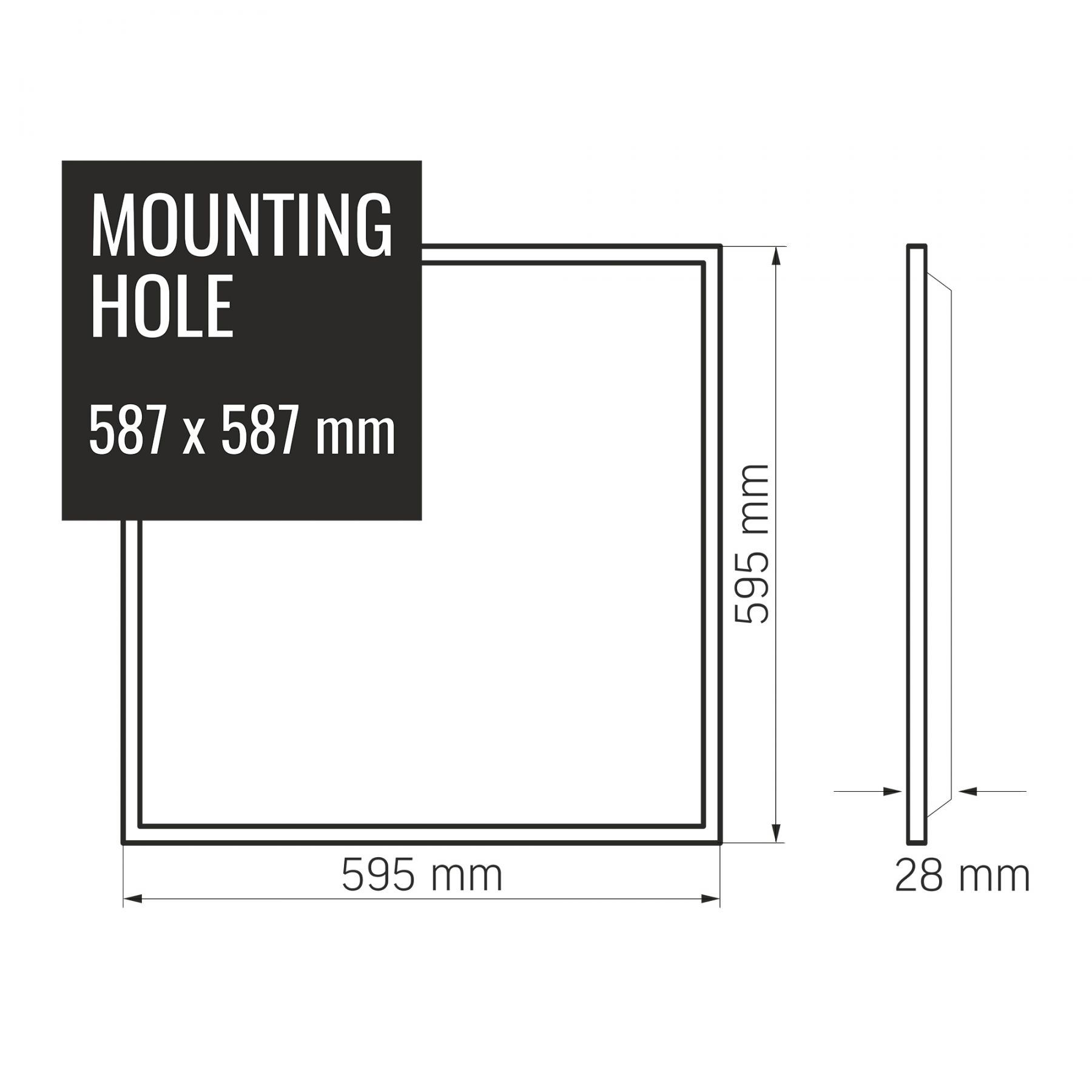

    • Mounting hole size:
      587 x 587 mm
    • Rated current:
      230 mA
    • Displacement factor (cos φ1):
      -
    • Color rendering index (CRI):
      Ra > 80
    • Lifetime (L70B50):
      50000 h
    • On/Off cycles:
      20000
    • Housing colour:
      White
    • Input interface:
      Terminal block
    • Useful luminous flux of the light source reference:
      in a sphere (360°)
    • Electric shock protection class:
      II
    • Diffuser material:
      Polystyrene (PS)
    • Ultraviolet radiation:
      no
    • Operating temperature range:
      -20° +40°C
    • Dimmable:
      no
    • Control gear replaceable:
      by the producer
    • Light source replaceable:
      by the producer
    • Mercury content:
      Does not contain
    • Ingress protection:
      IP20
    • Housing material:
      Aluminum, Iron alloy, Acrylic
    • Height:
      595 mm
    • Width:
      595 mm
    • Depth:
      28 mm
    • In the package:
      2 pc.
    • Outer box:
      8 pcs.
    • Unit nett weight:
      1.31kg х2
    • Warranty:
      3 years
