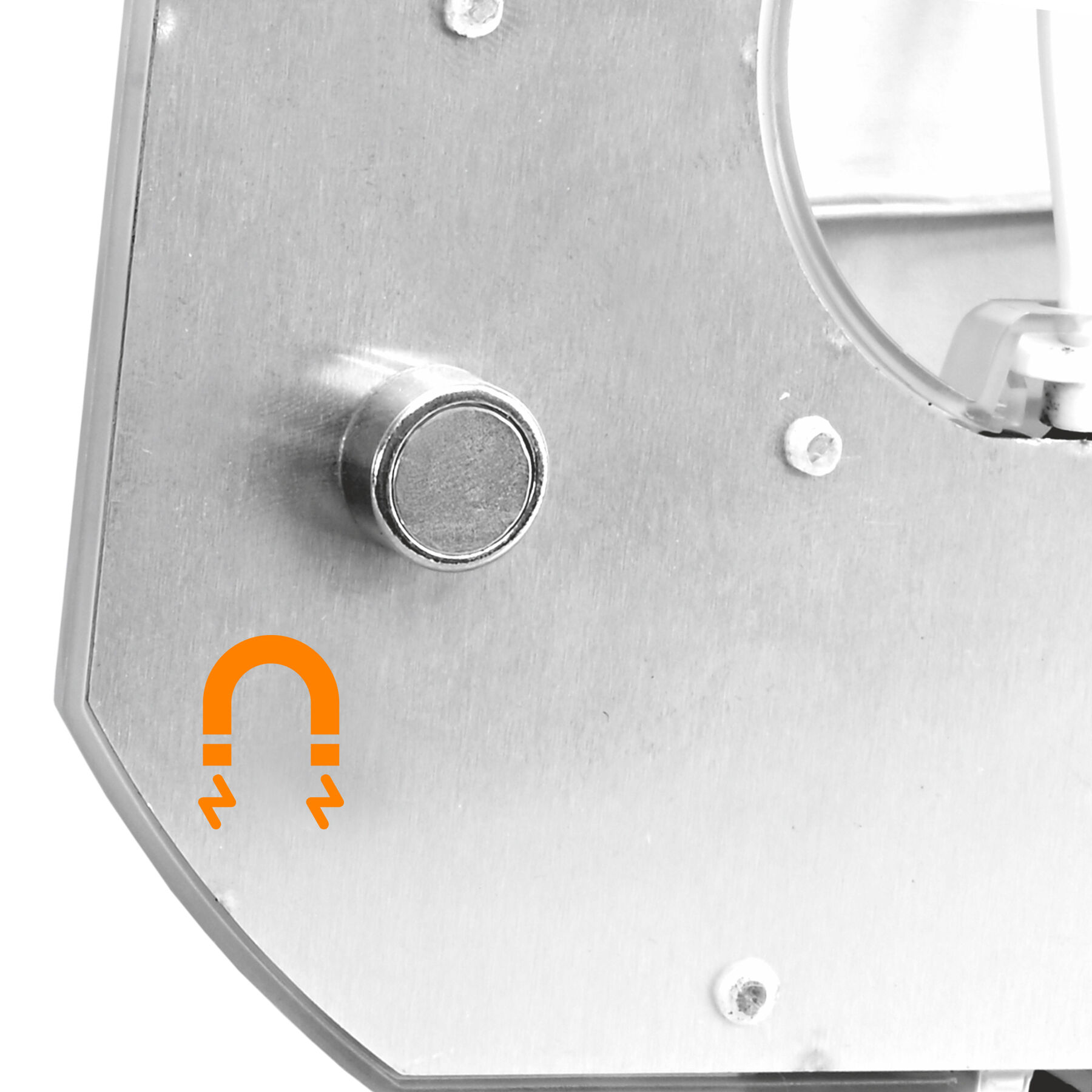

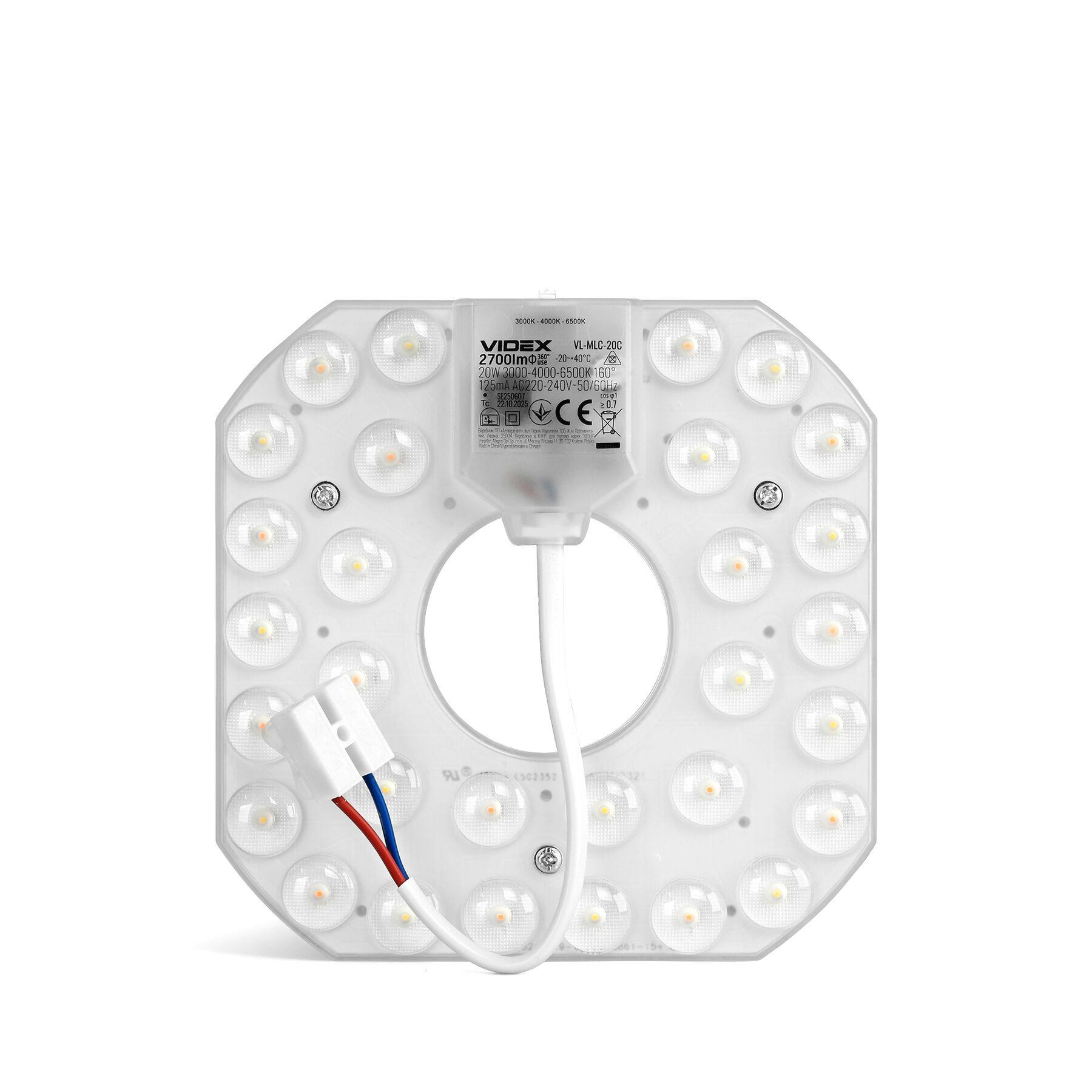

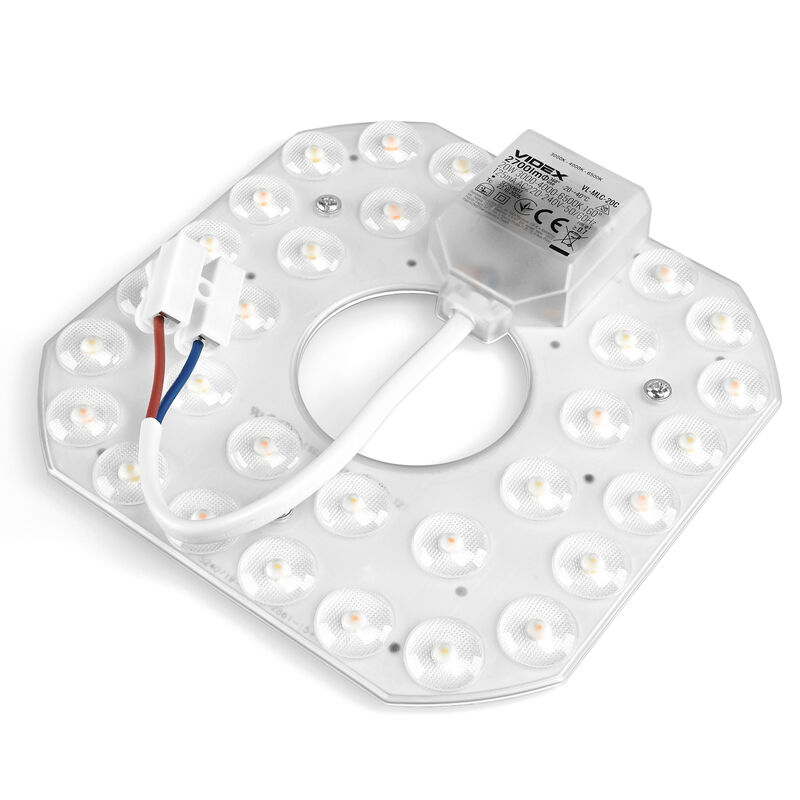

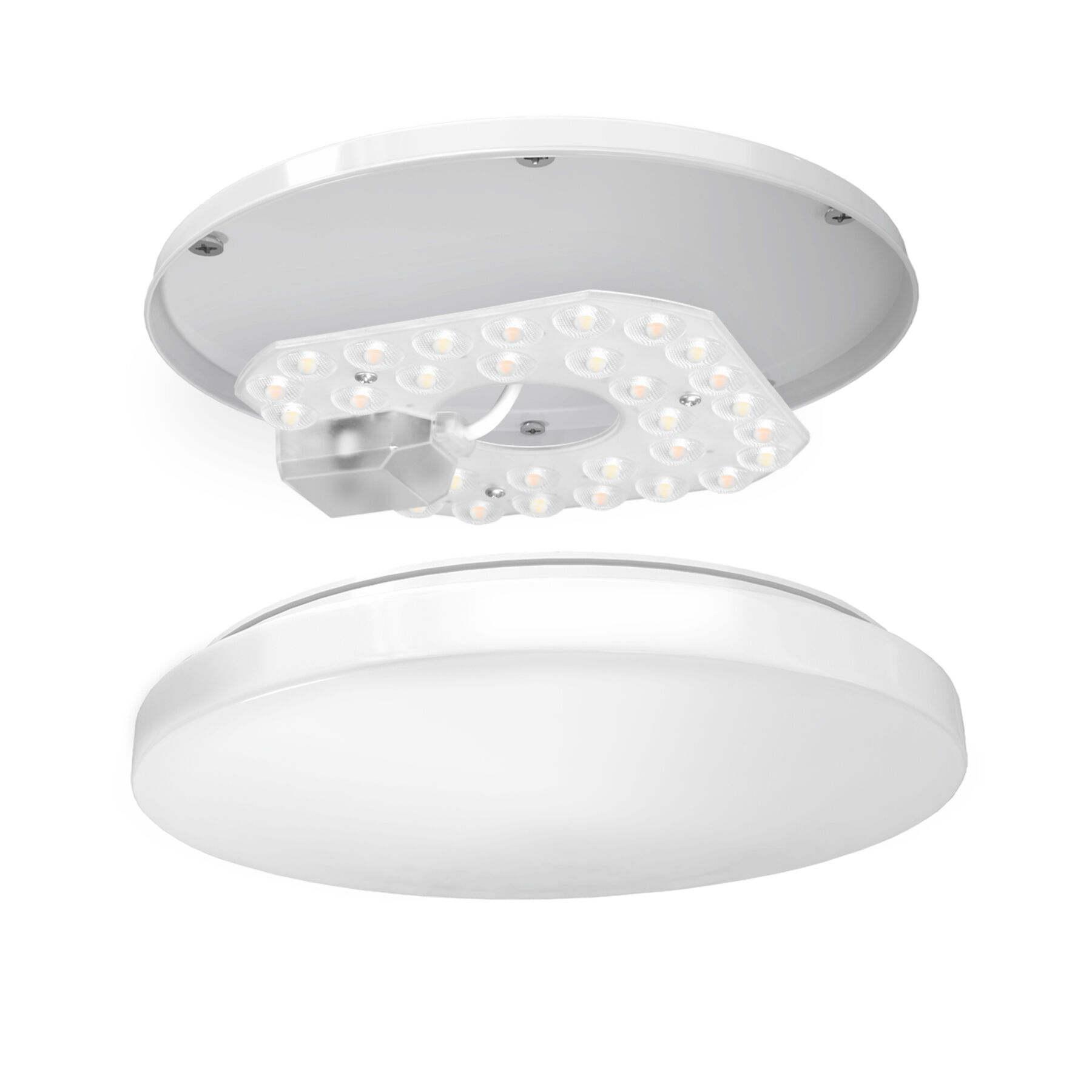

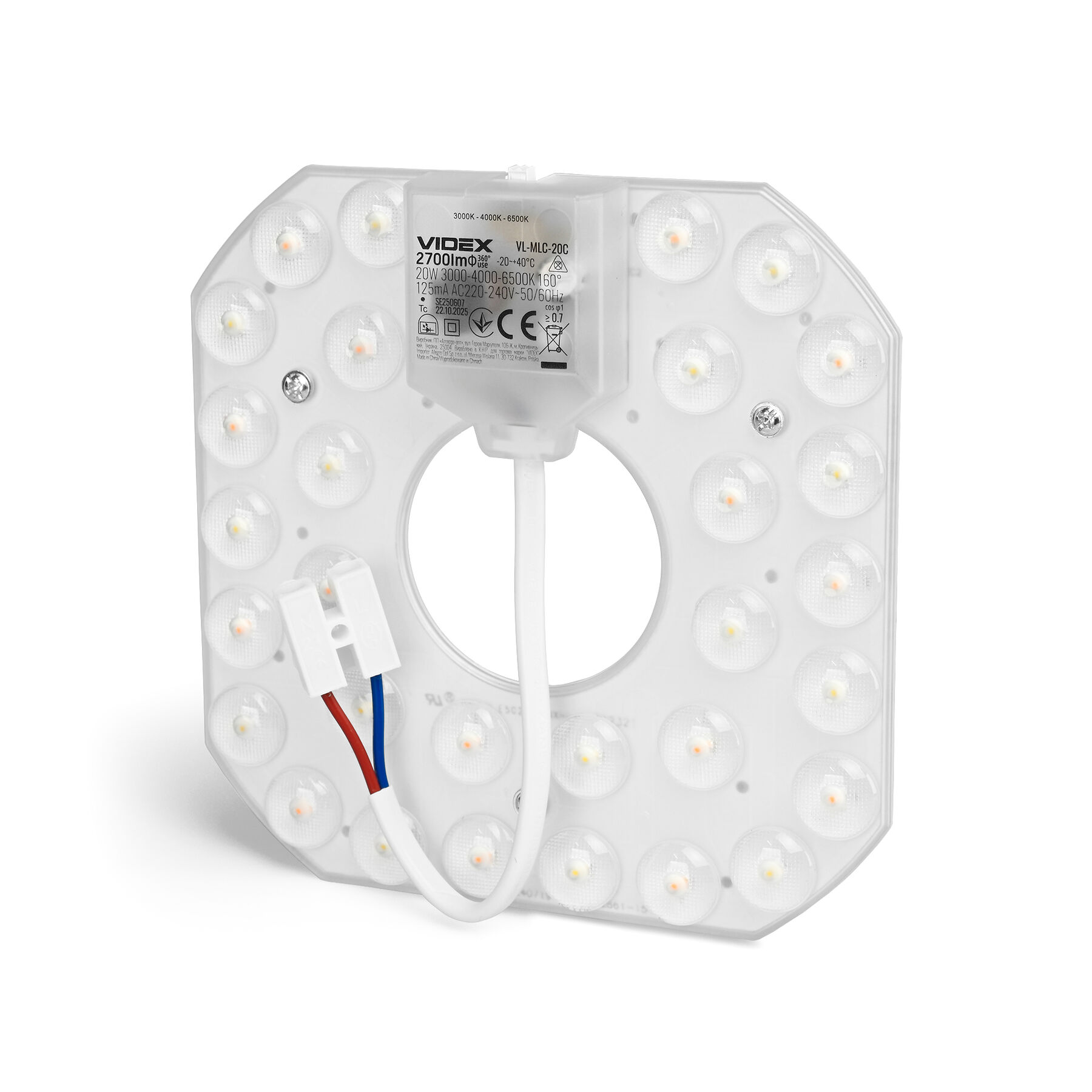

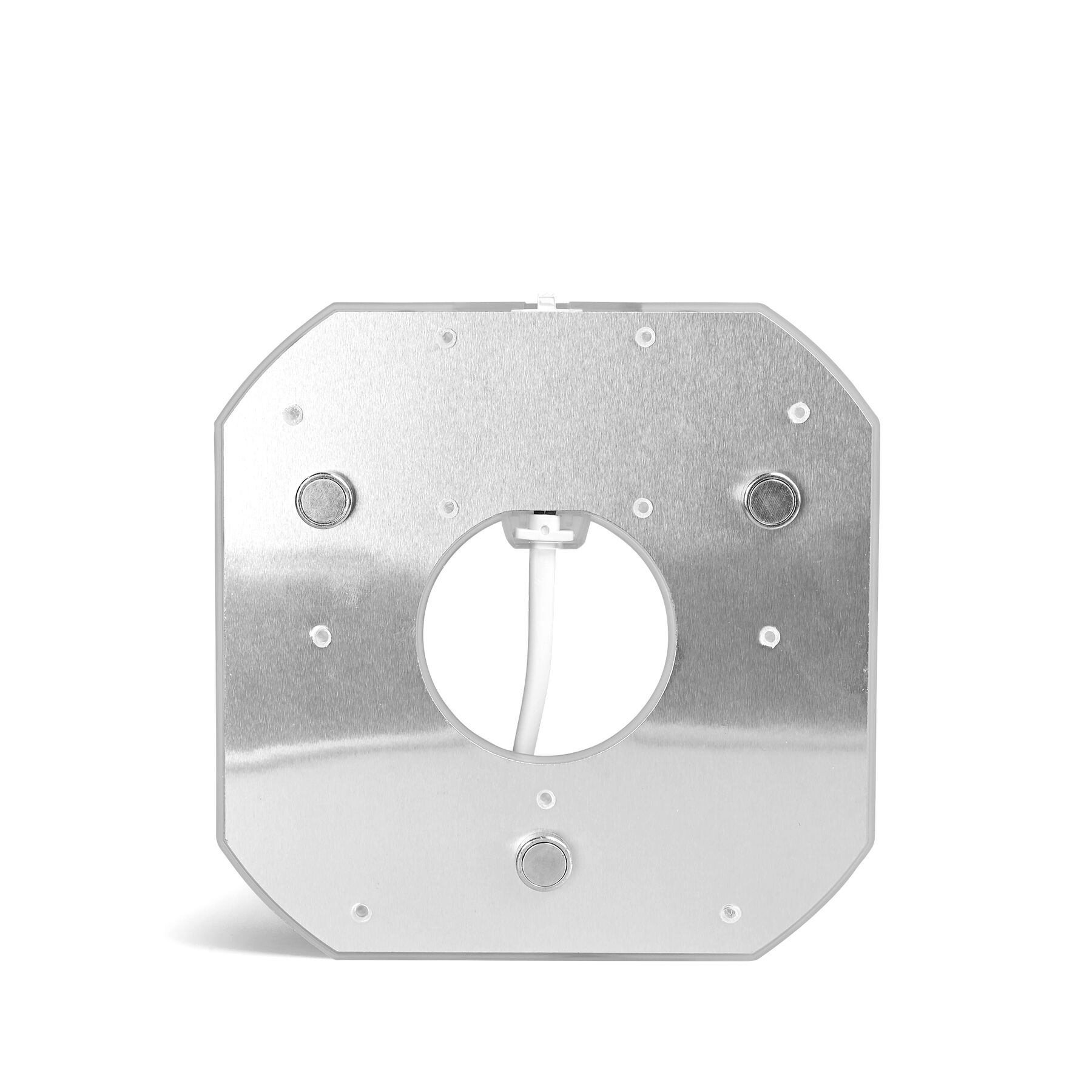

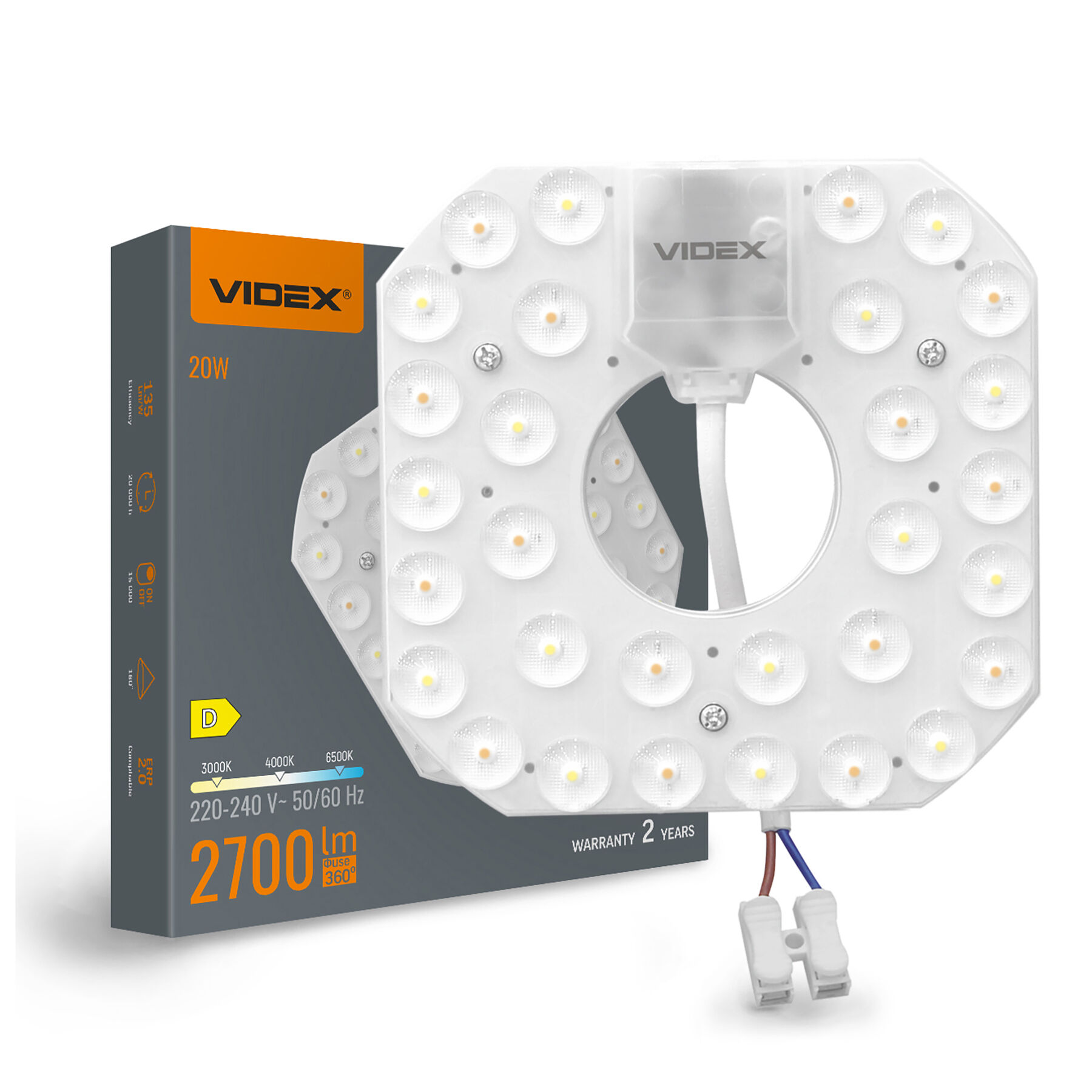

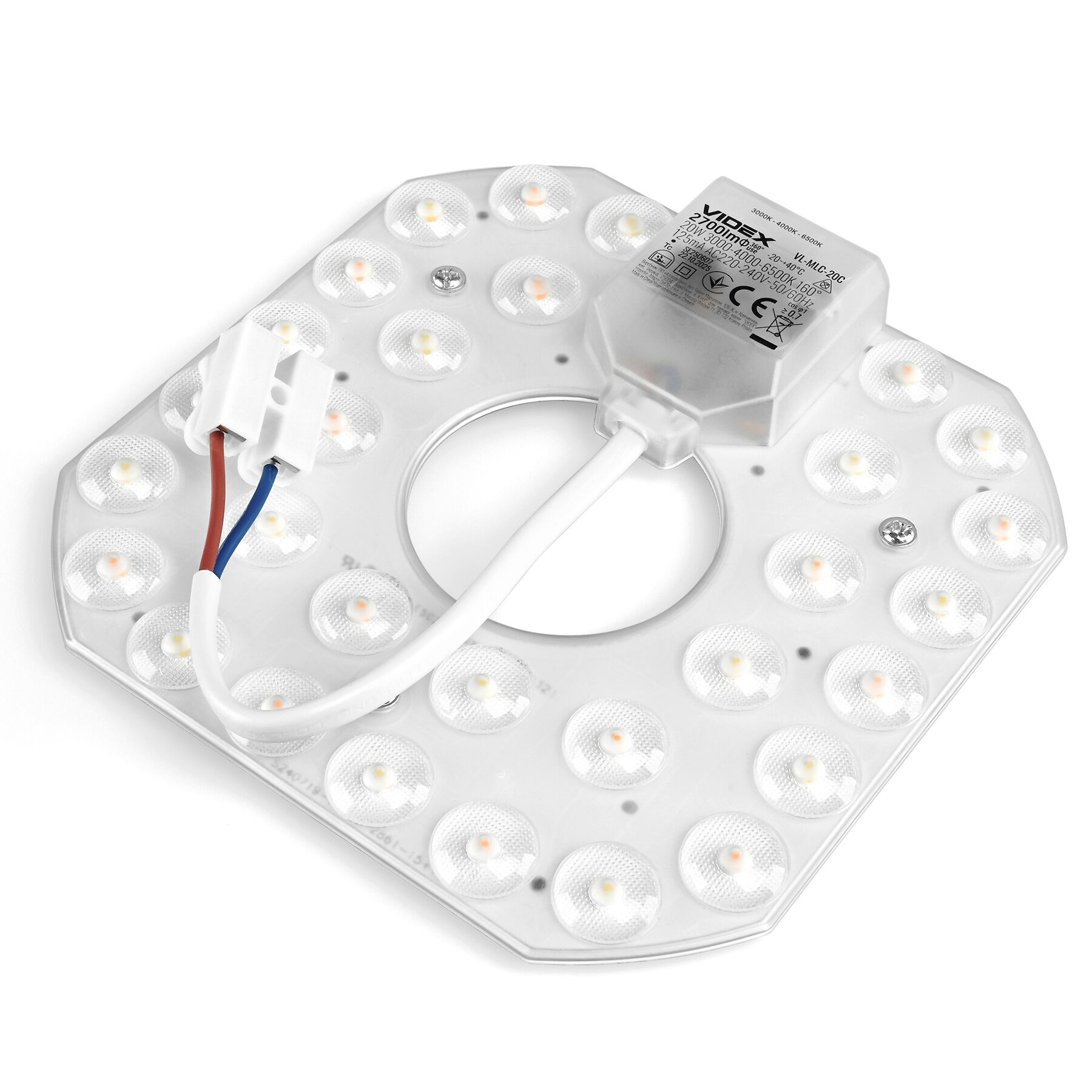

LED module VIDEX VL-MLC-20C 20W 3000K-4000K-6500K is intended as a replacement light source for ceiling luminaires. In case of luminaire failure, it is sufficient to install the module into the luminaire. Mounting is done using a magnet, and there is no need to spend time reinstalling a new luminaire. WARNING! The installed LED module is not intended for mounting outside the luminaire or with an open or damaged diffuser. The set includes the LED module, a terminal block, user manual, and individual packaging.

A feature of this model is the ability to adjust the color temperature of the light according to your needs:
- 3000K (warm light): creates a cozy, soft atmosphere; ideal for living rooms, cafes, restaurants, hotel rooms, or indoor relaxation areas;
- 4000K (neutral white light): provides natural, balanced lighting; suitable for offices, corridors, schools, shops, and other public spaces;
- 6500K (daylight): recommended for utility, technical, or production rooms where clarity and visual contrast are important.

The color temperature of the light is set using the color temperature adjuster located on the back of the module housing.

TECHNICAL SPECIFICATIONS:
- luminaire light sources are non-replaceable
- operating voltage range from AC 220 to 240V
- power – 20W
- luminous flux – 2700 Lm
- efficiency – 135 Lm/W
- energy consumption class – D (EU)
- turn-on time to 100% full luminous flux <1sec
- uniform bright lighting without flicker, instant-on function and no ultraviolet emission
- beam angle – 160°
- color temperature of light – 3000-4000-6500K
- product is not compatible with dimmers
- number of ON/OFF cycles – 15 000
- service life – 20 000 hours
- dust and moisture protection level IP20 (use in enclosed luminaires that protect against water droplets)
- class II protection against electric shock
- the product does not contain harmful substances

INSTALLATION AND CONNECTION INSTRUCTIONS
During the entire process of replacing the light source, always disconnect the electricity. Read the instructions before installation. Installation must be performed by a qualified specialist. Please carry out installation and connection according to the diagram specified in the manual. Connection should be made using the terminal block included with the module or an external terminal block. Before first use, check the correctness of mechanical mounting and connection. The product can only be used in a network that meets energy requirements and quality standards established by law.

PRECAUTIONS
1. Any maintenance work should be carried out with the power off and the product brought to room temperature.
2. The product can only be powered with the nominal voltage or voltage within the specified range.
3. Do not use the product with a damaged diffuser, damaged wiring, or connection points.
4. Do not cover the product with thermal insulation materials.
5. Do not look directly at the LED beam.
6. The product must not be used in adverse conditions such as dust, water, moisture, vibration, explosive atmosphere, fumes, or chemical vapors, etc.
7. The product is not repairable. Do not attempt to repair a broken product, as this will void the warranty.
8. Used or damaged products should be disposed of in accordance with applicable regulations.

Failure to follow these instructions may result, for example, in fire, burns, electric shock, bodily injury, and other material or non-material damage. The manufacturer is not responsible for any damage caused by failure to follow the above instructions.

Warranty period – 2 years.
