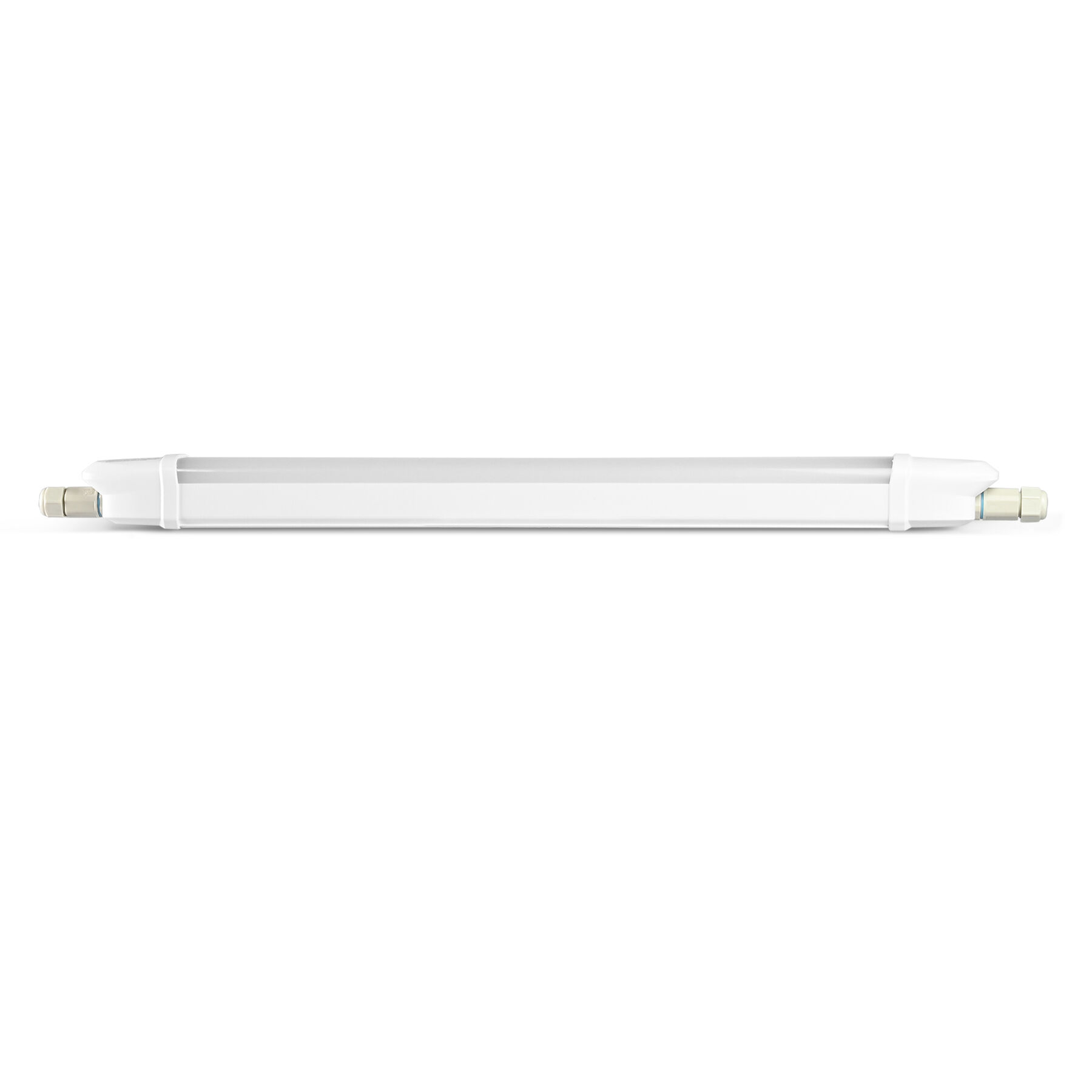

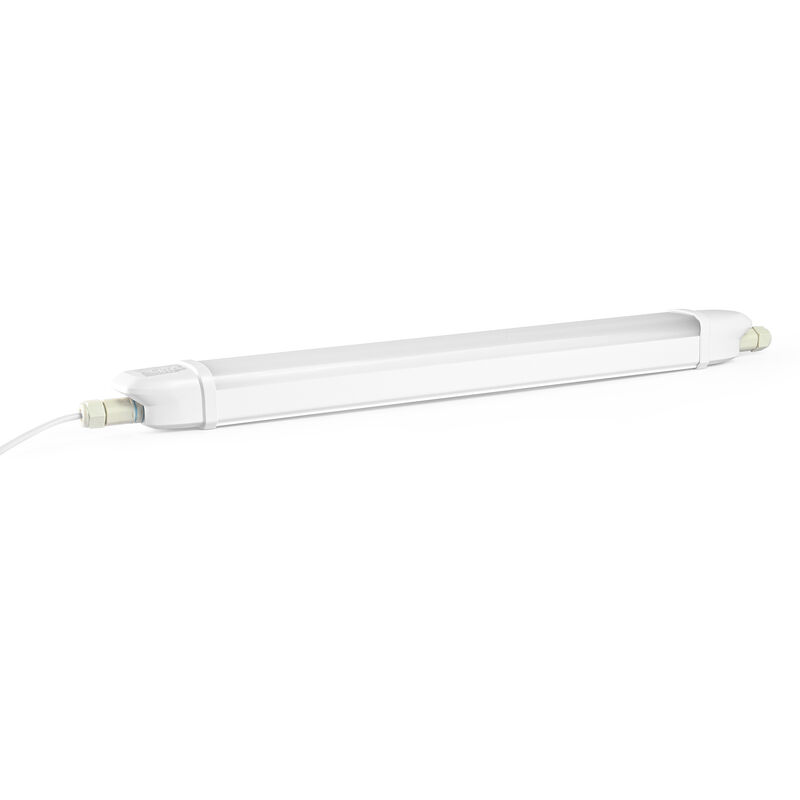

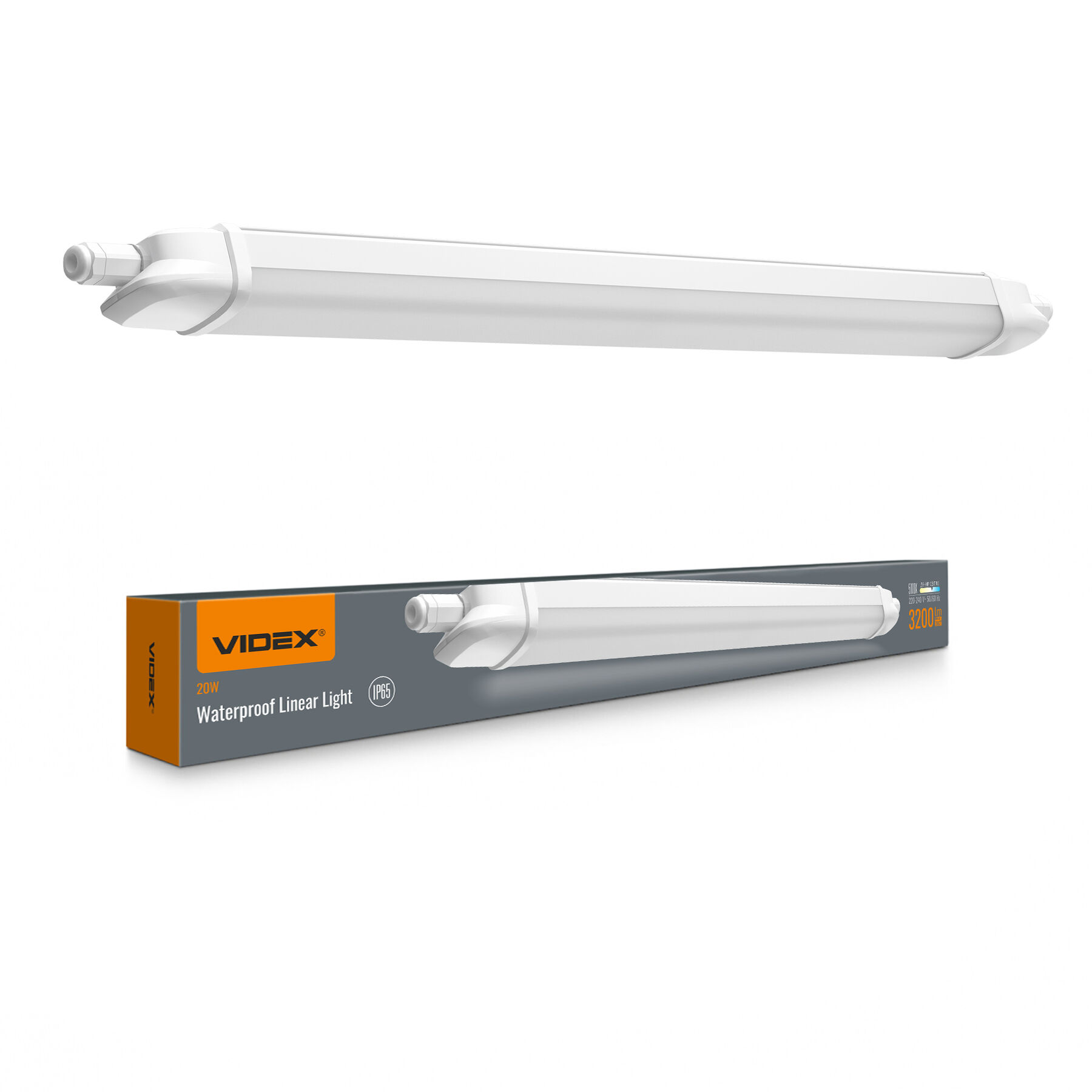

LED Linkable Linear Light IP65 VIDEX 20W 0.6М 5000K 3200Lm White
LED Linkable Linear Light IP65 VIDEX 20W 0.6М 5000K 3200Lm White
-
EAN:4820246487481
-
Standard size:0.6 m
-
On-mode power (Pon):20 W
-
Useful luminous flux (Φuse):3200 Lm
-
Light source or containing product:Light source
-
Correlated color temperature:5000K (neutral white)
-
-
Energy class of the light source:C
-

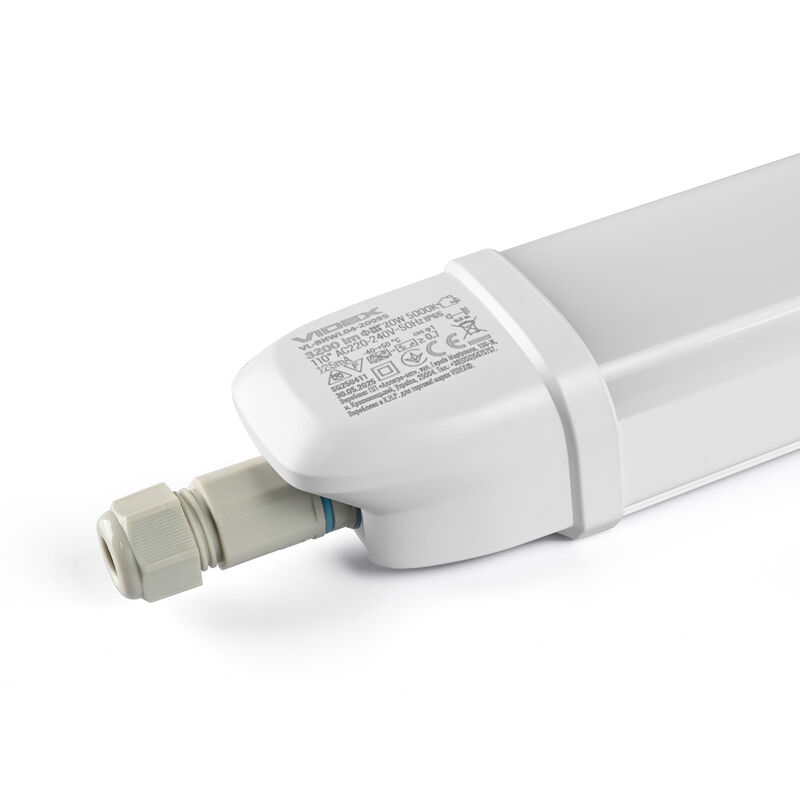

Rated voltage, frequency:AC 220-240 V, 50/60 Hz
-
Beam angle:140°
-

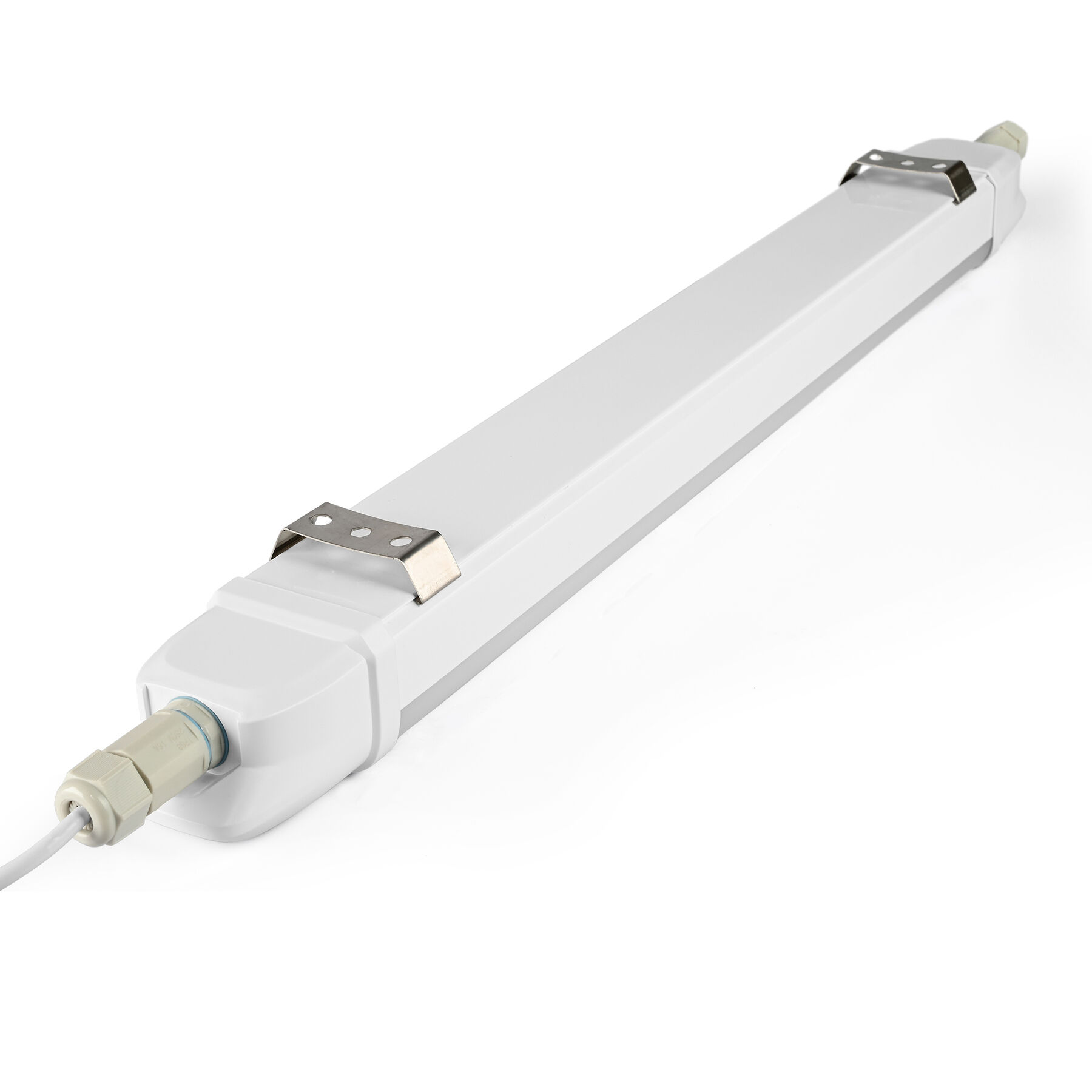

Place of installation :Ceiling, Flat surface, Wall, Suspension
-
Place of application:indoor, outdoor
-

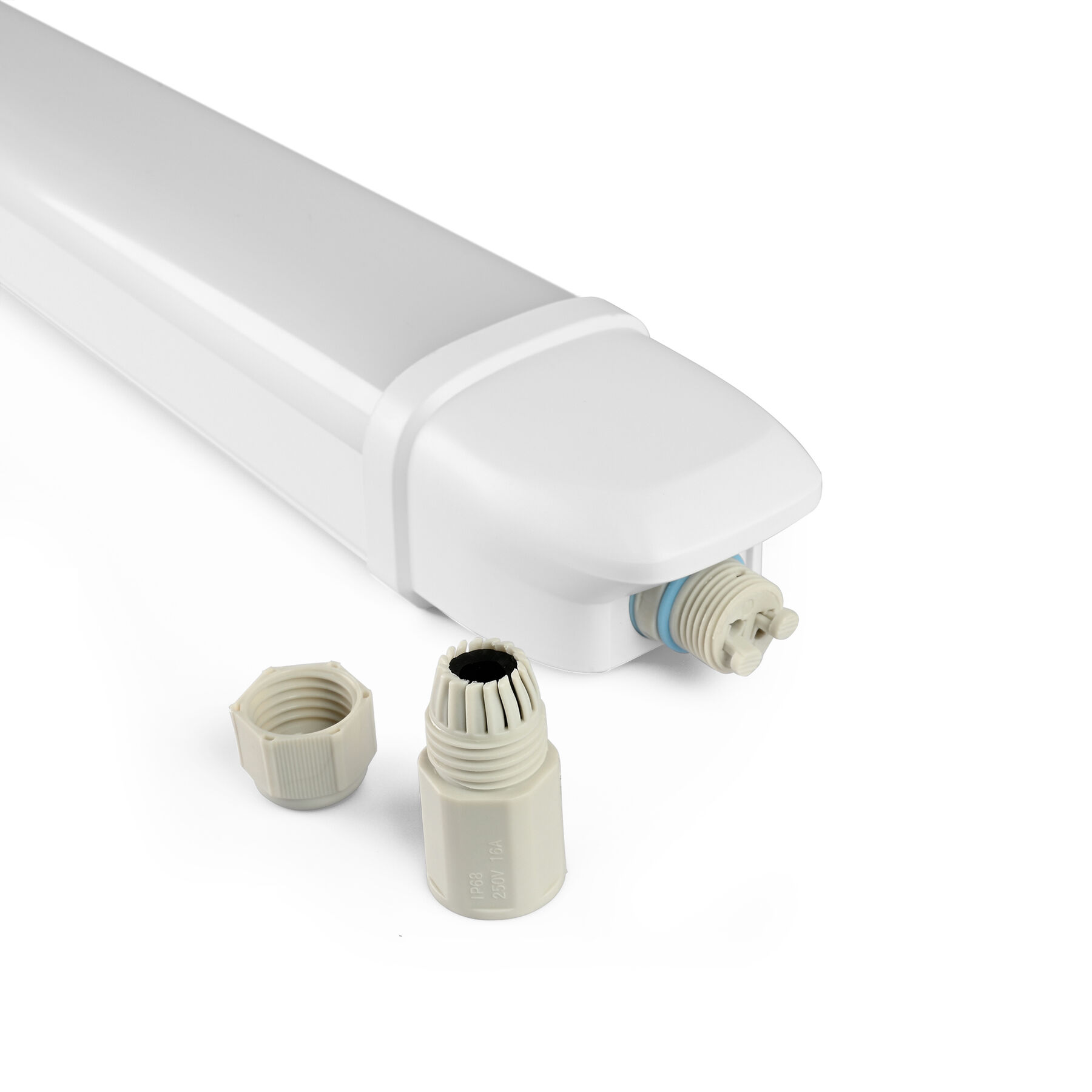

Connection:unilateral
-
Rated current:125 mA
-
Displacement factor (cos φ1):0.7
-
Color rendering index (CRI):Ra > 80
-
Lifetime (L70B50):30000 h
-
On/Off cycles:20000
-
Housing colour:White
-
Impact protection:IK08
-

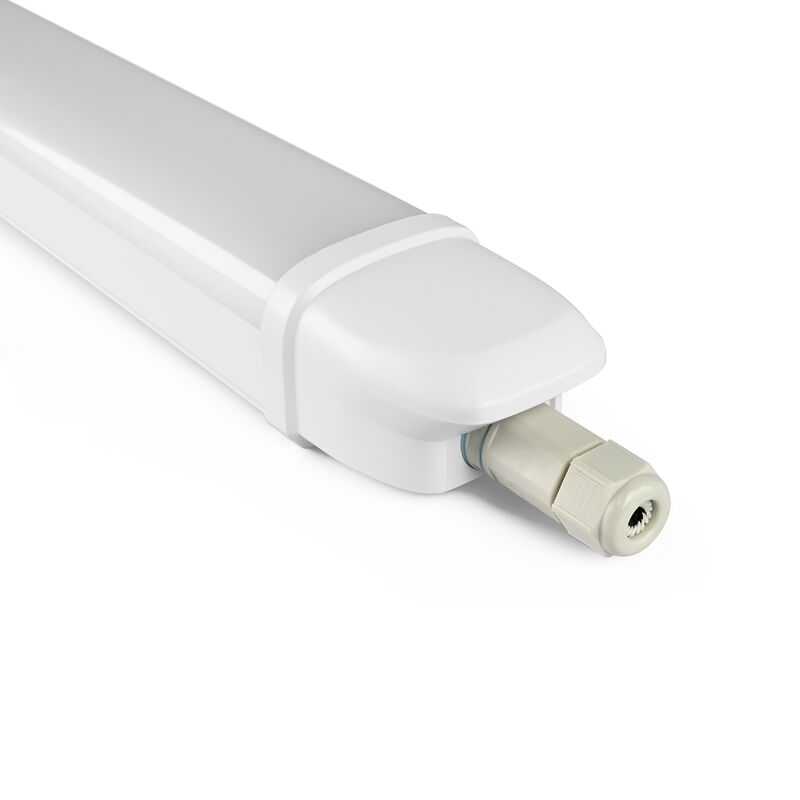

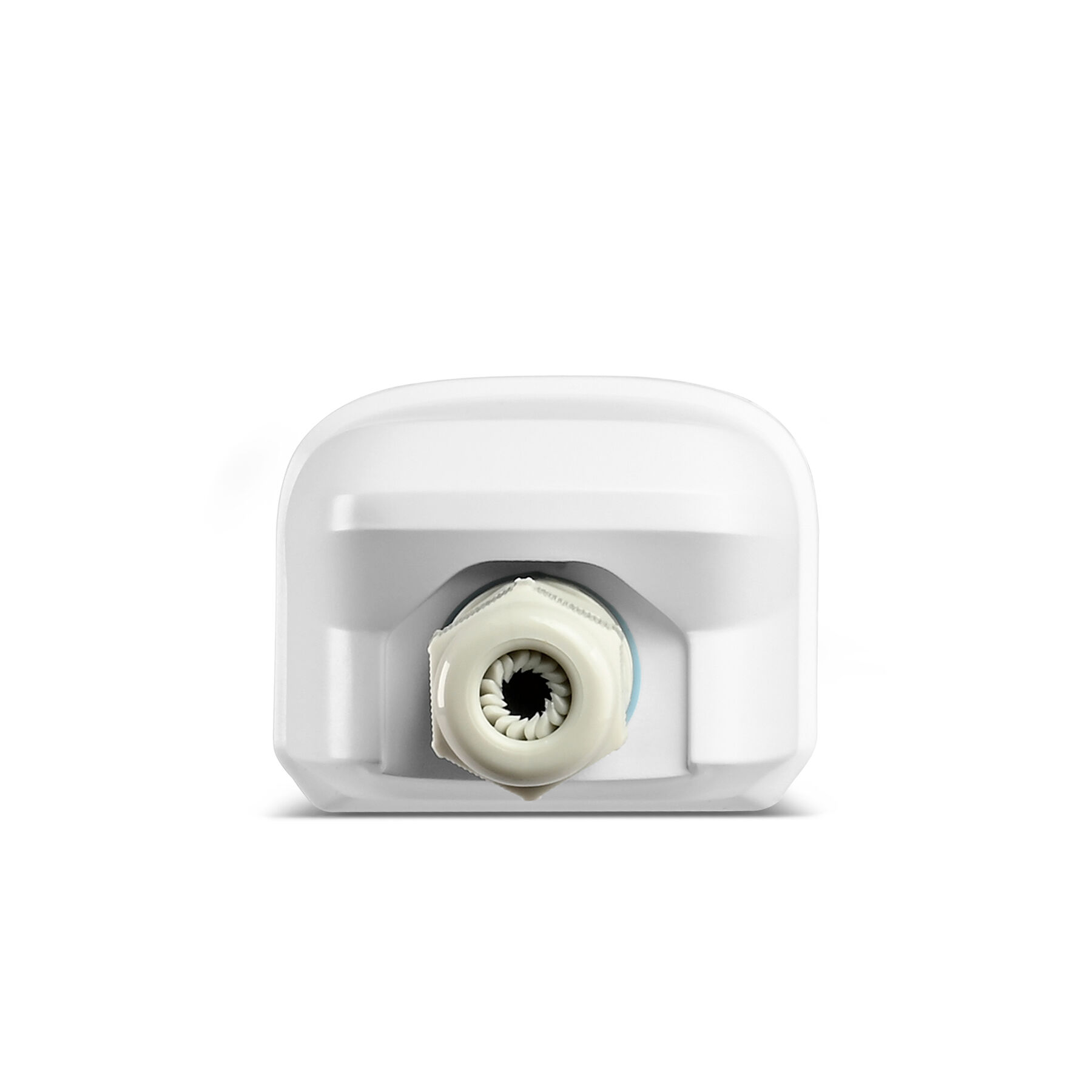

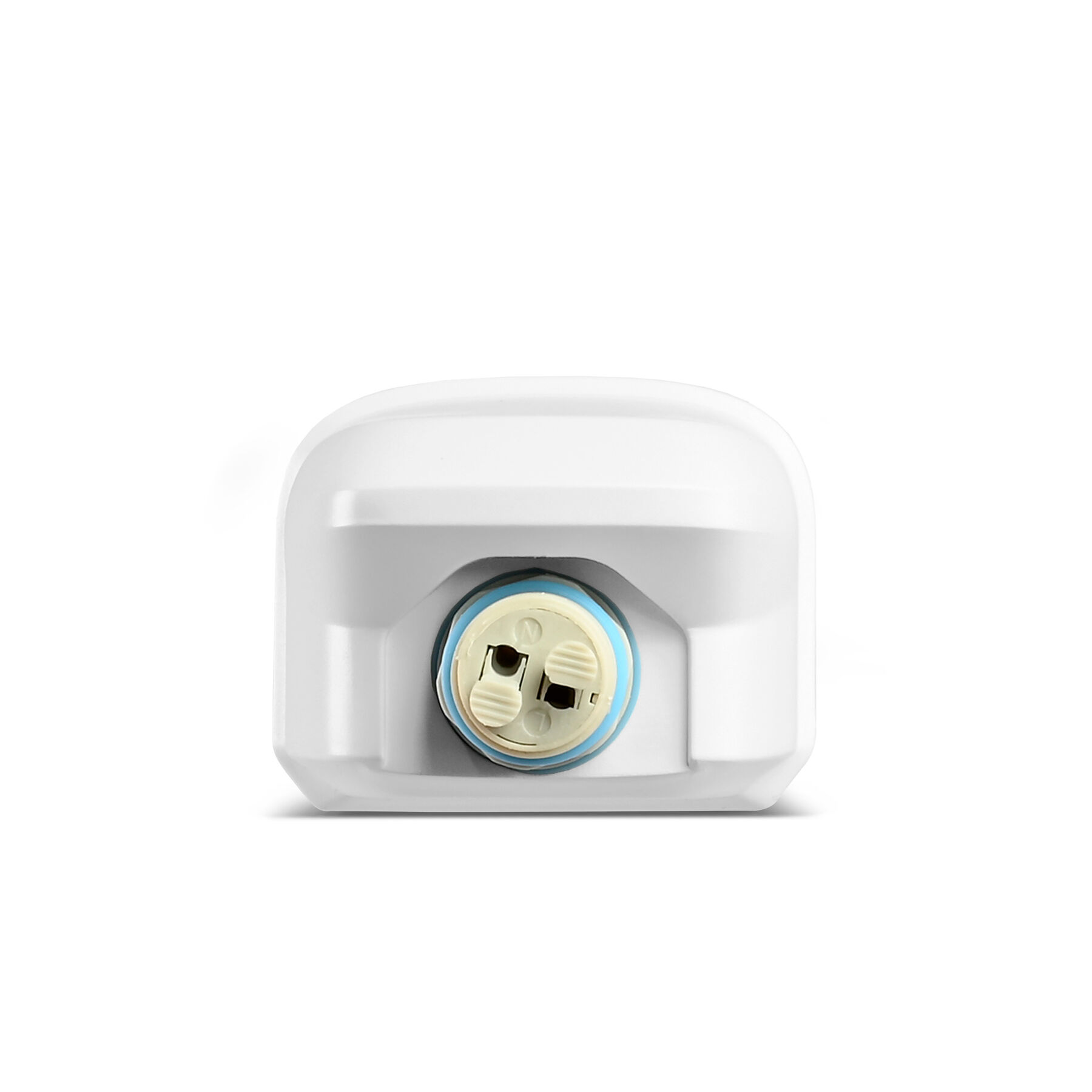

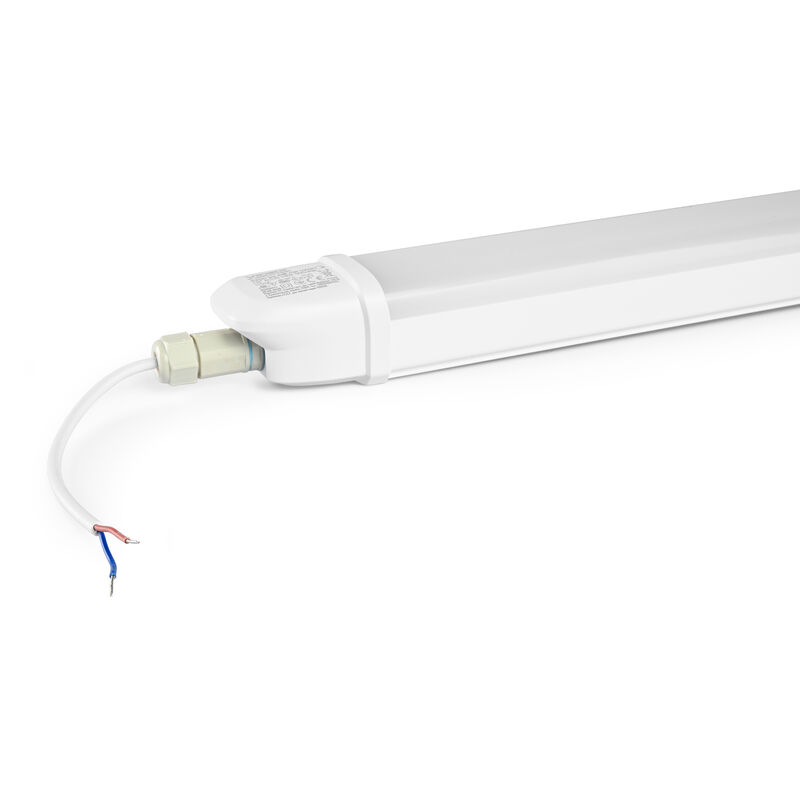

Input interface:Terminal block
-
Useful luminous flux of the light source reference:in a sphere (360°)
-
Electric shock protection class:II
-
Minimum distance from the illuminated object:0.5 m
-
Diffuser material:Polystyrene (PS)
-
Ultraviolet radiation:no
-
Operating temperature range:-40° +50°C
-
Dimmable:no
-
Control gear replaceable:-
-
Light source replaceable:no
-
Mercury content:Does not contain
-
Ingress protection:IP65
-
Housing material:Aluminum, Iron alloy
-

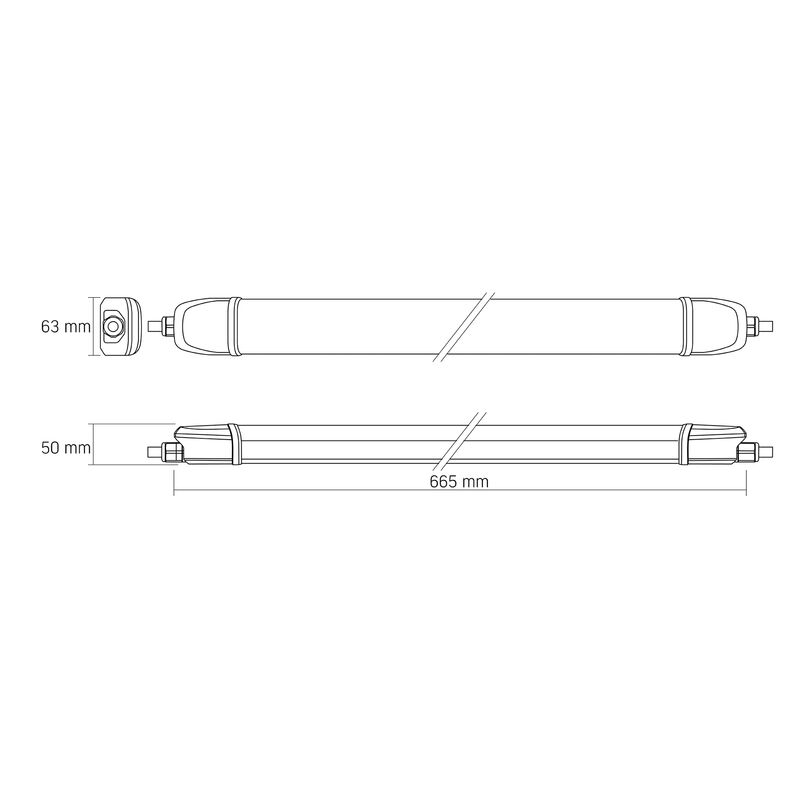

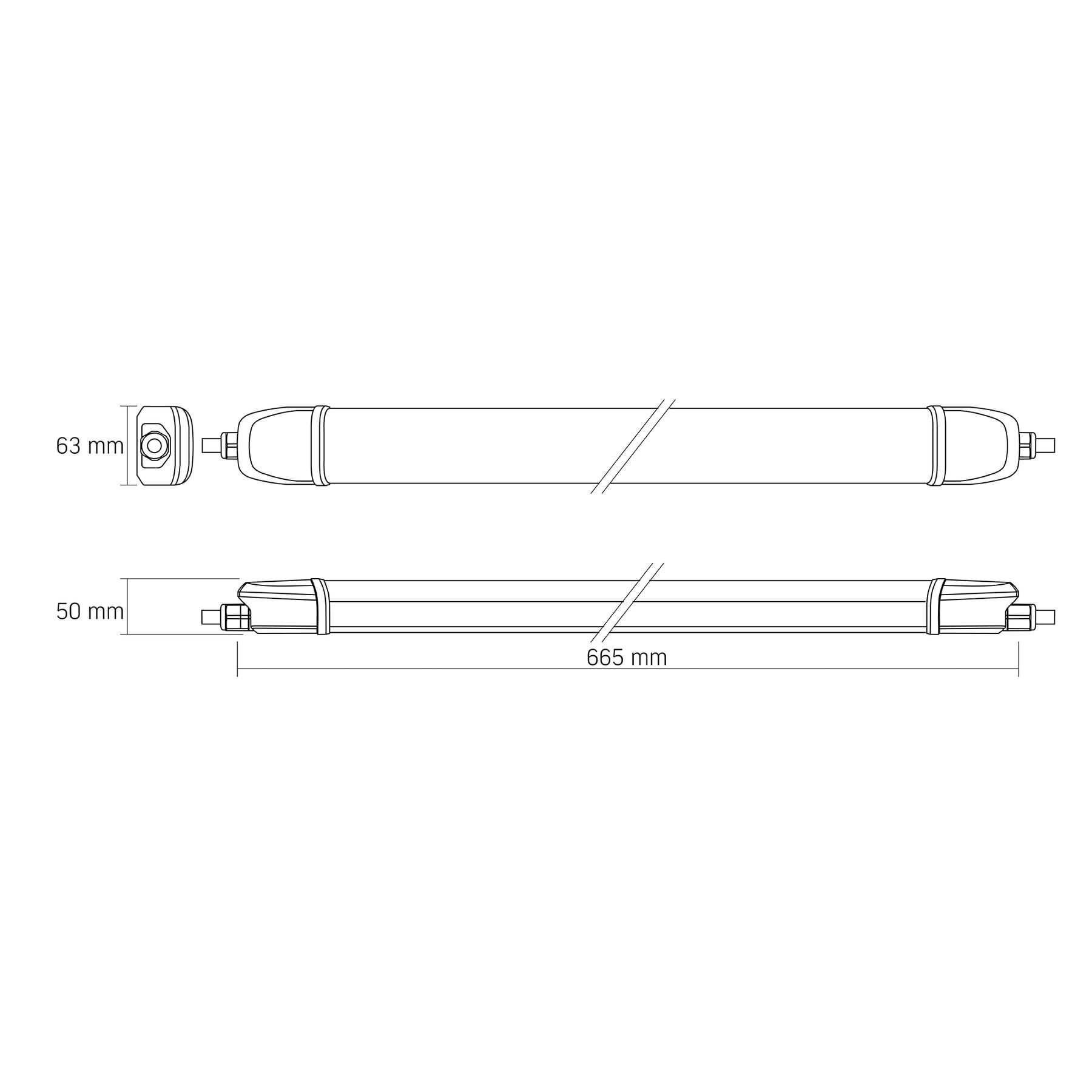

Height:63 mm
-
Width:50 mm
-
Depth:665 mm
-

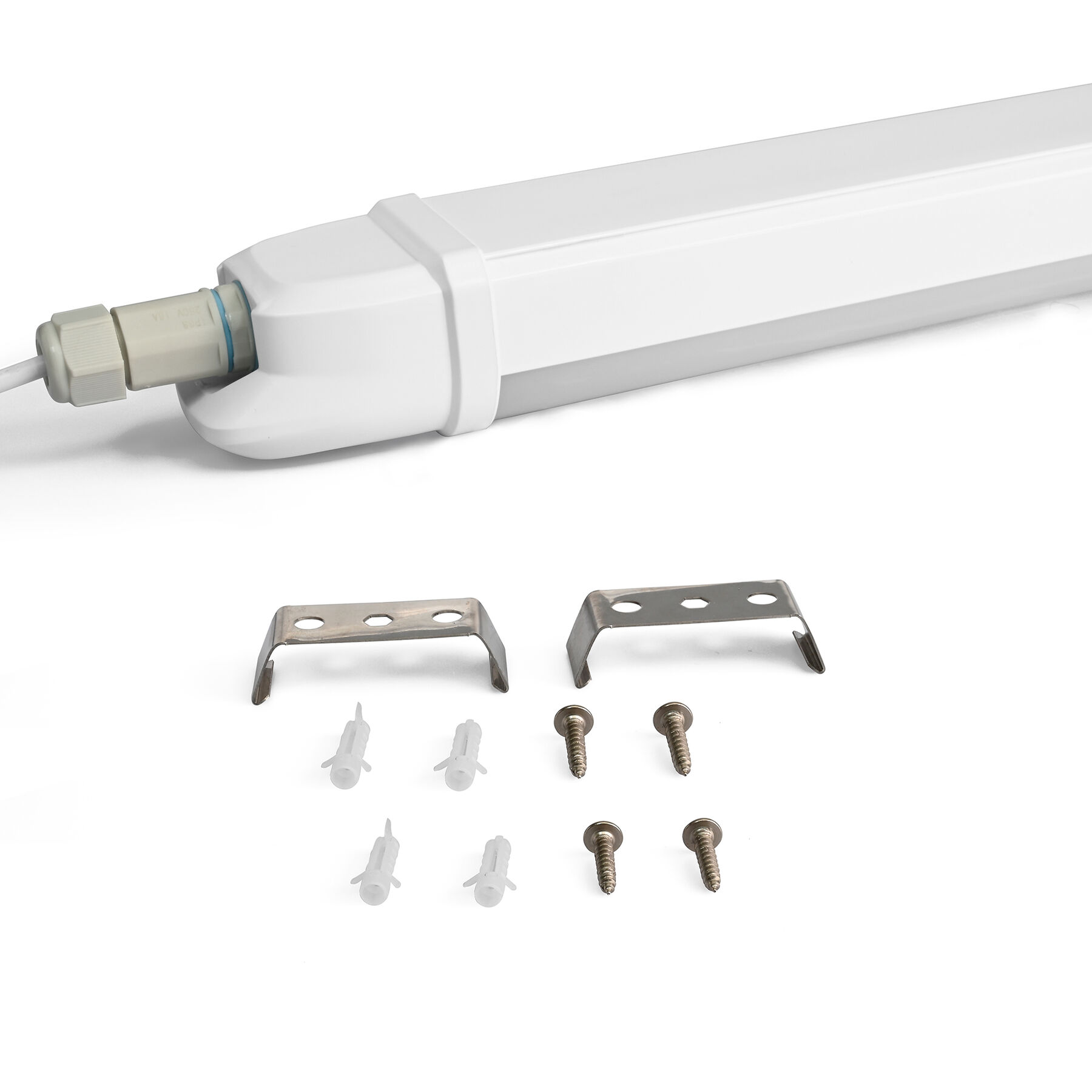

In the package:1 pc.
-
Outer box:20 pcs.
-
Unit nett weight:235g
-
Warranty:2 years
-

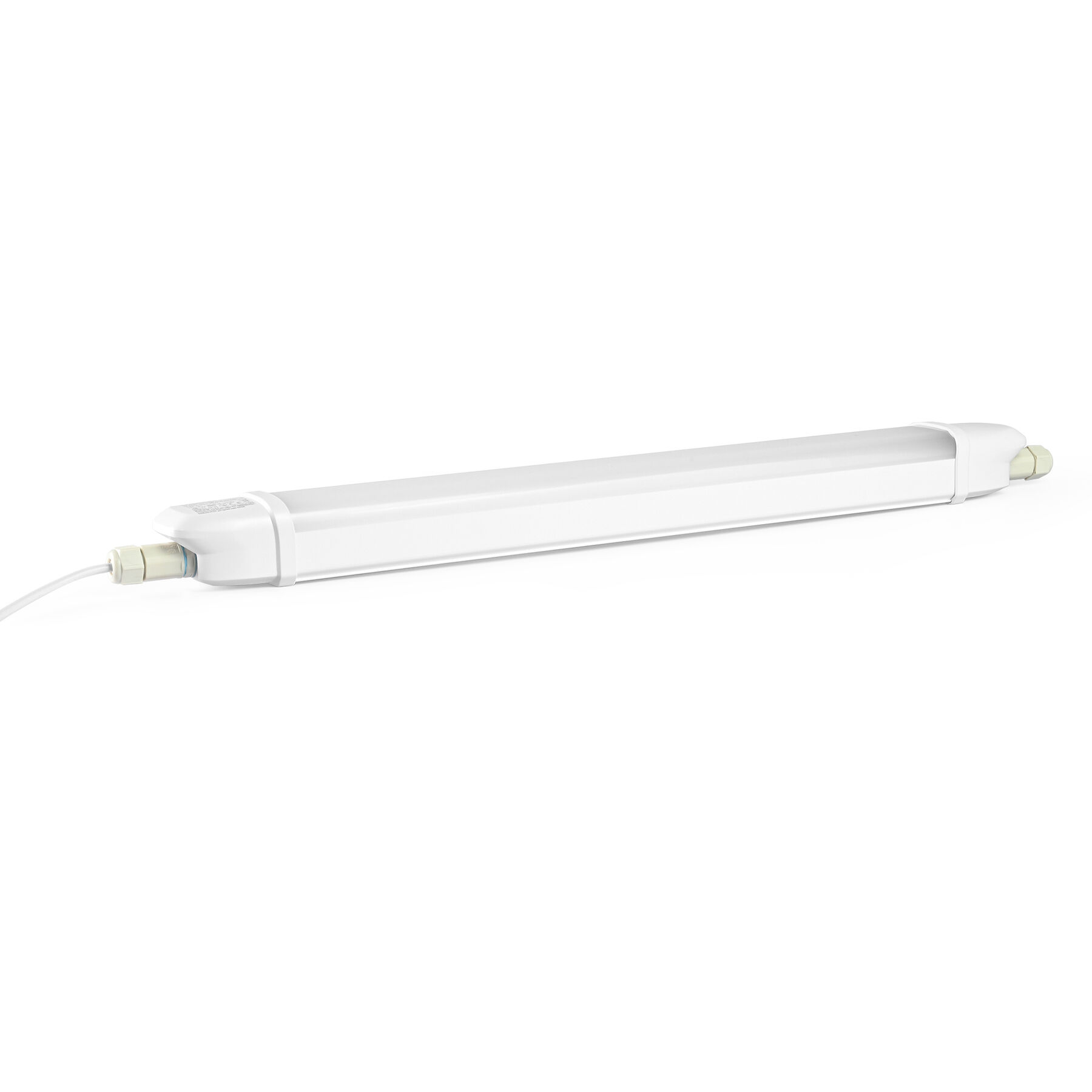

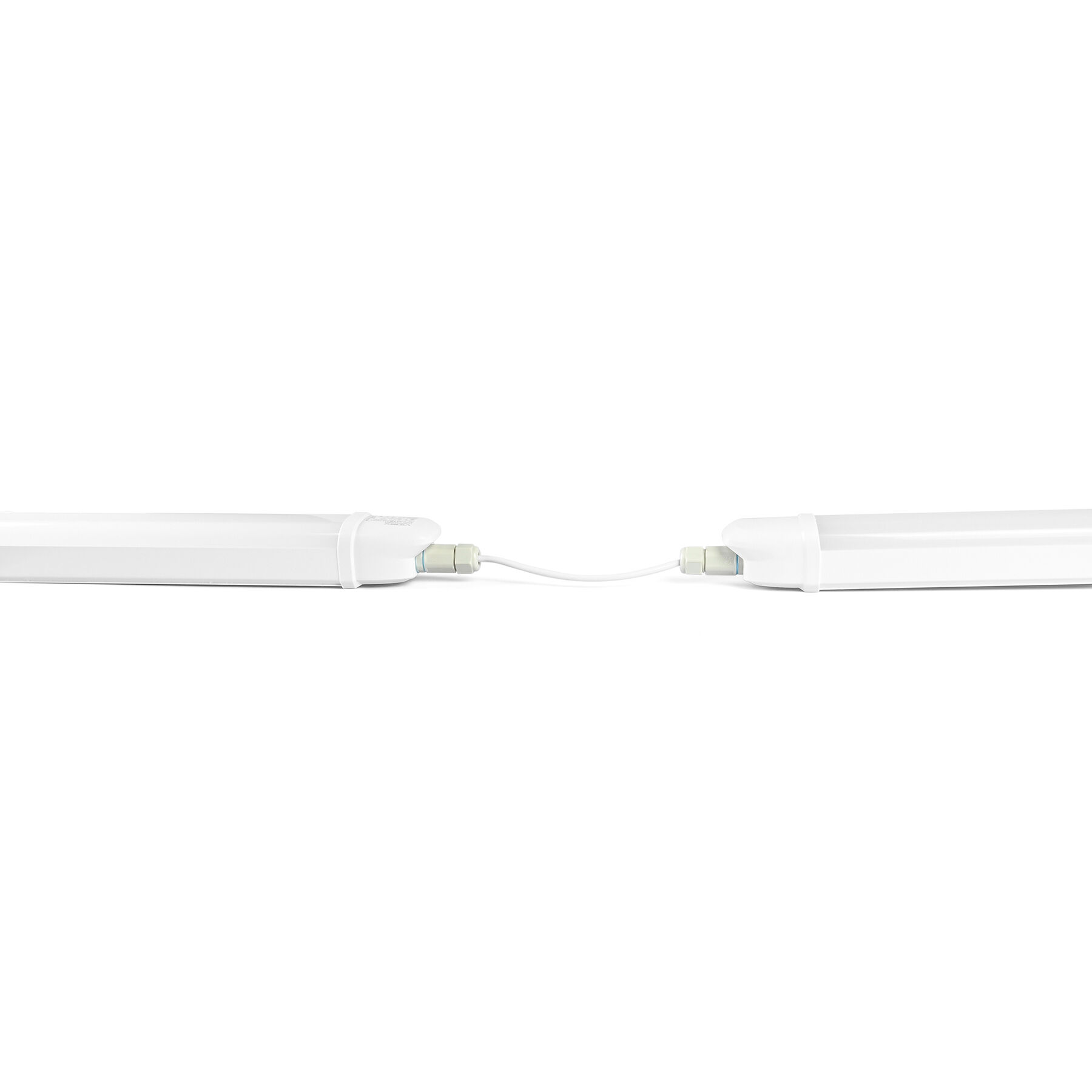

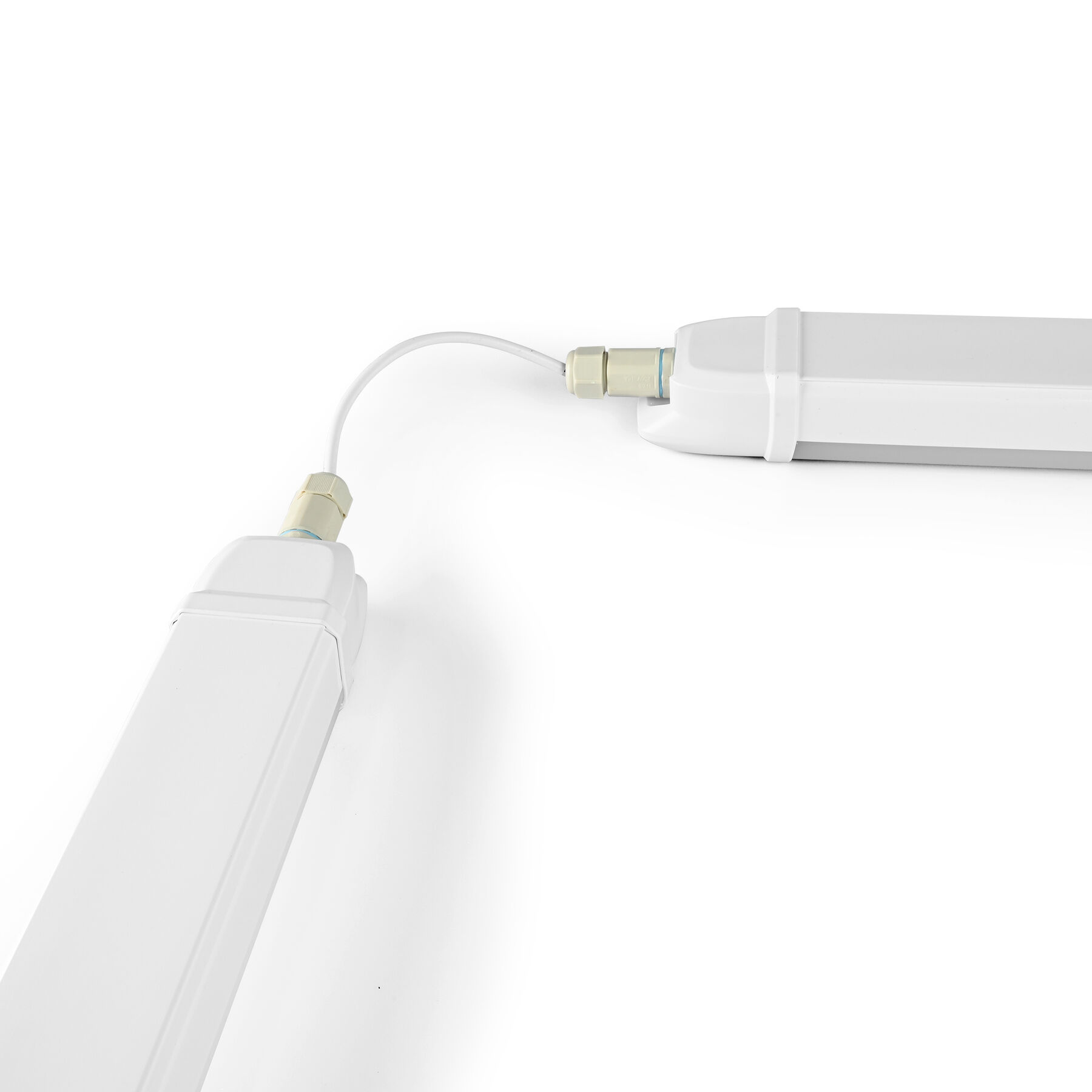

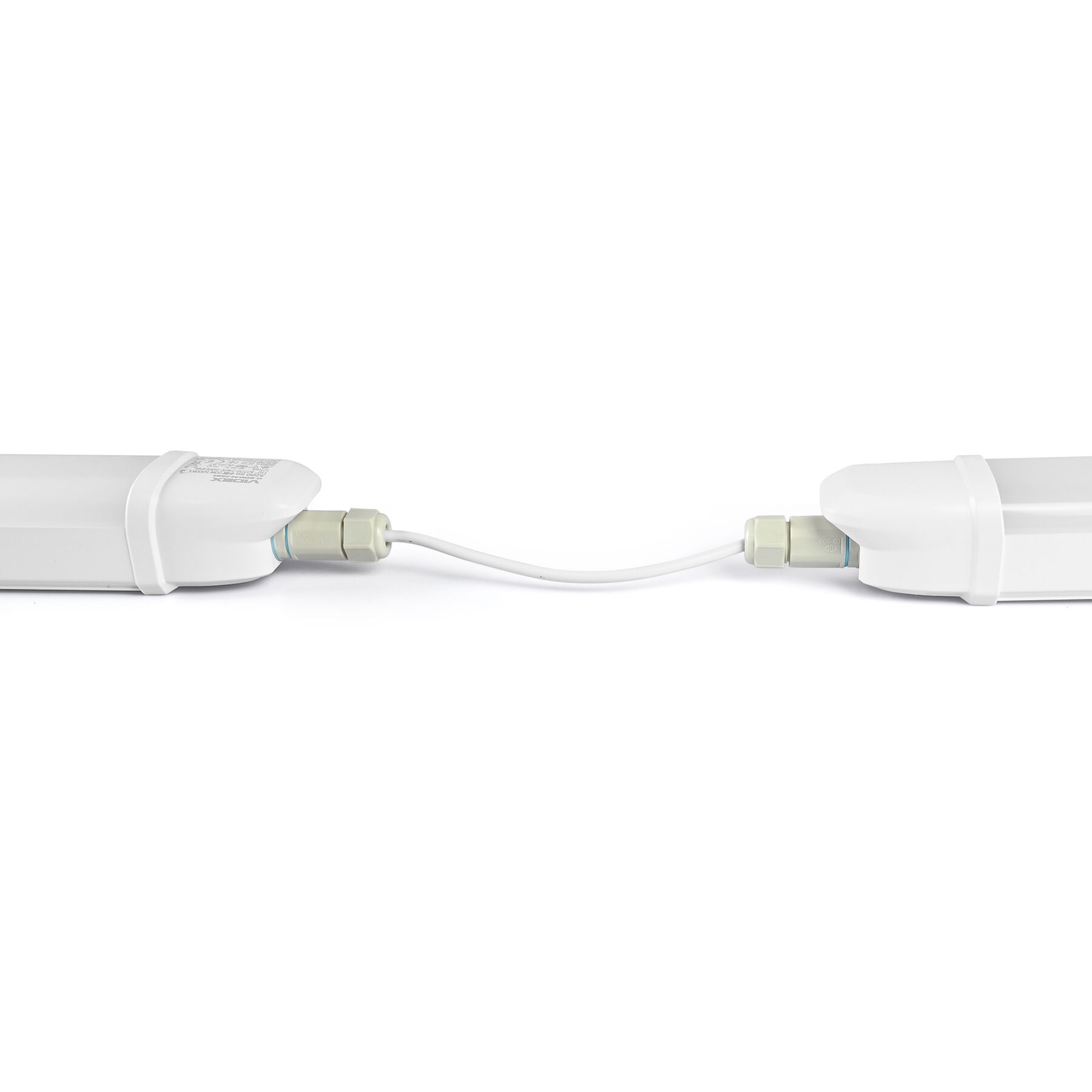

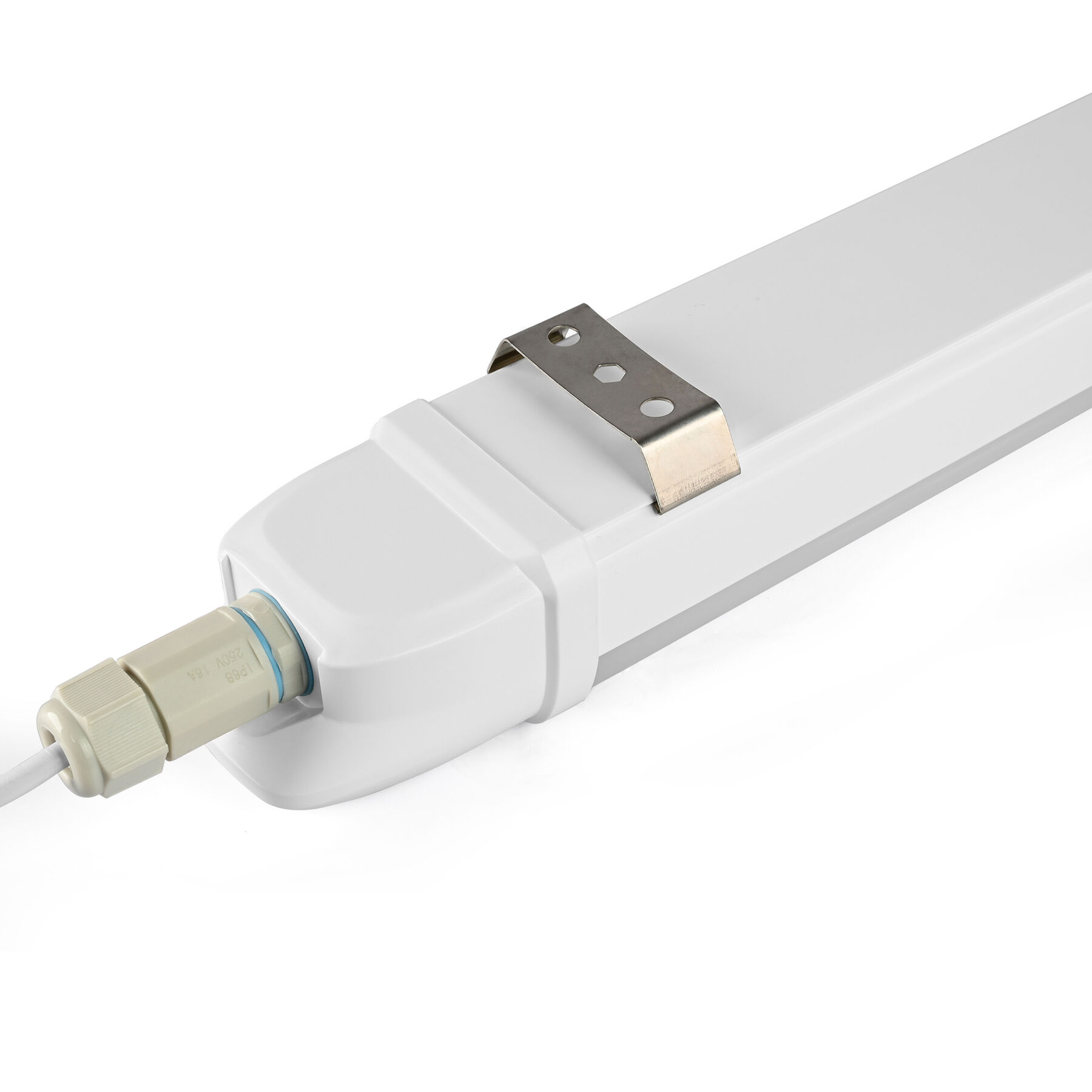

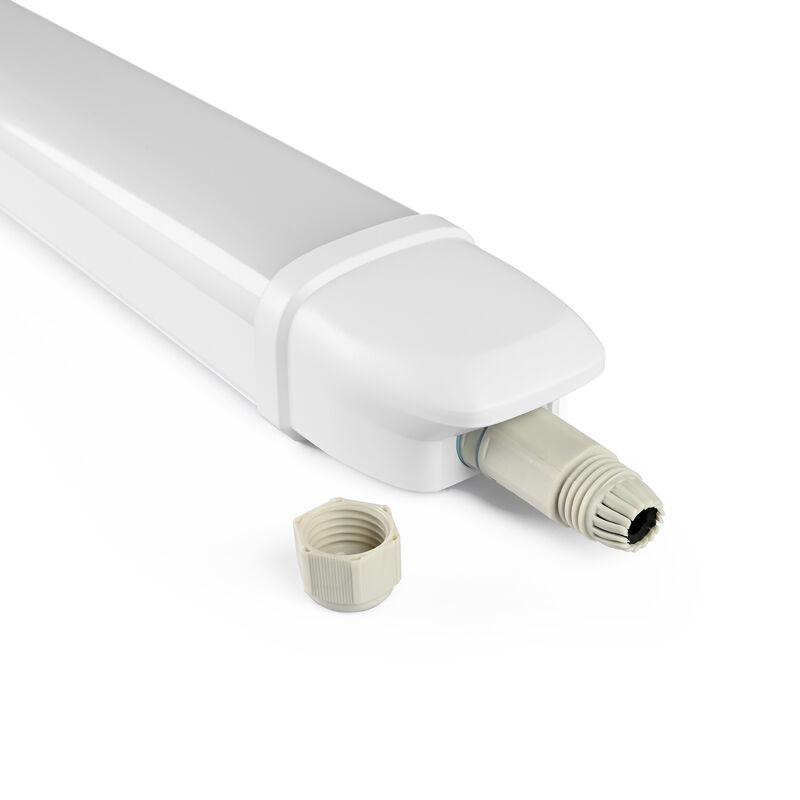

LED Linkable Linear Light IP65 VIDEX 20W 0.6М 5000K 3200Lm is designed for general indoor and outdoor lighting. It can be used both indoors and outdoors, as the fixture has a high protection rating against dust and moisture – IP65 and a wide operating temperature range from -40°C to +50°C. This allows it to be used in areas with high humidity, such as warehouses, industrial facilities, garages, service stations, parking lots, and outdoor applications. Installation and connection are possible in a continuous line by linking several fixtures together, ensuring that the total power of the line does not exceed 200W, with no more than 10 fixtures connected in one line.
The fixture has a high luminous efficacy of 160Lm/W, with a total luminous flux of 3200Lm. During operation, no flickering occurs. The color temperature is 5000K (daylight). The light beam angle is 140°, providing high-quality illumination of the space.
The housing is made of high-quality polycarbonate (PC), making the fixture resistant to damage and durable during operation. The protection class against electric shock is Class II. The impact resistance rating is IK08. The dust and moisture protection rating is IP65, ensuring reliable protection from external influences. The IP65 rating means complete dust protection (dustproof), so the fixture is fully sealed and prevents even the smallest dust particles from entering, and also protects against water jets from any direction — making it resistant to rain, humidity, or pressure washing.
It is resistant to a large number of switching cycles – 20 000. The service life is 30 000 hours. Warranty period – 2 years. Operating voltage is AC 220–240V. Only safe materials are used in production. The fixture does not contain mercury or other substances harmful to health. It must not be disposed of as household waste.
