LED Headlamp VIDEX VLF-H046Z 500Lm 5000K
LED Headlamp VIDEX VLF-H046Z 500Lm 5000K
-
EAN:4820246488136
-
Useful luminous flux of the contained light source (Φuse):500 Lm
-
Correlated color temperature:5000K (neutral white), Red, Green
-
Peak luminous intensity:920 cd
-
Distance:60 m
-
Operation mode:TURBO, HIGH, MIDDLE, LOW, RED HIGH, RED MIDDLE, RED LOW, RED FLASH, GREEN HIGH, GREEN MIDDLE, GREEN LOW, GREEN FLASH
-
-
Housing colour:Black
-
Input interface:USB-C
-
Charging current:DC 5V, 0.8A
-
Fall protection:1 m
-
Operating temperature range:-20° +40°C
-
Dimmable:yes
-
Magnetic base:No
-
Lens material:Polycarbonate (PC)
-
Reflector surface:Microtextured
-
Light source replaceable:no
-
Battery type:Li-pol
-
Battery voltage:3.7 V
-
Battery capacity:1200 mAh
-
Battery indicator:4 level
-
Battery replaceable:no
-
Full charge time:2 h
-
Full discharge time:173 h
-
Discharge stabilization:Not full
-
Mercury content:Does not contain
-
Ingress protection:IP65
-
Housing material:Polyamide
-
Height:40.5 mm
-
Width:36.5 mm
-
Depth:72 mm
-

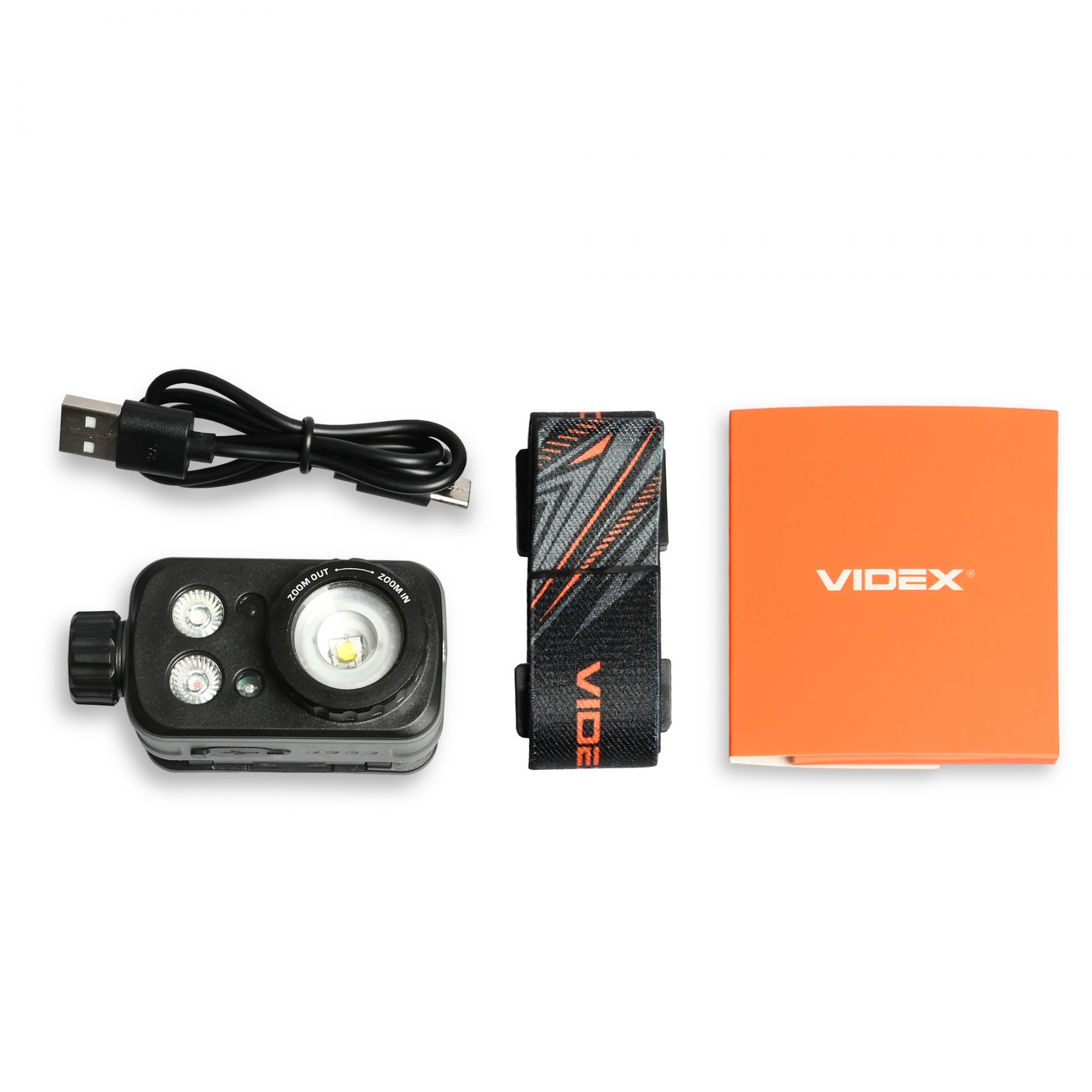

In the package:1 pc.
-
Outer box:20 pcs.
-
Unit nett weight:96g
-
Warranty:2 years
-

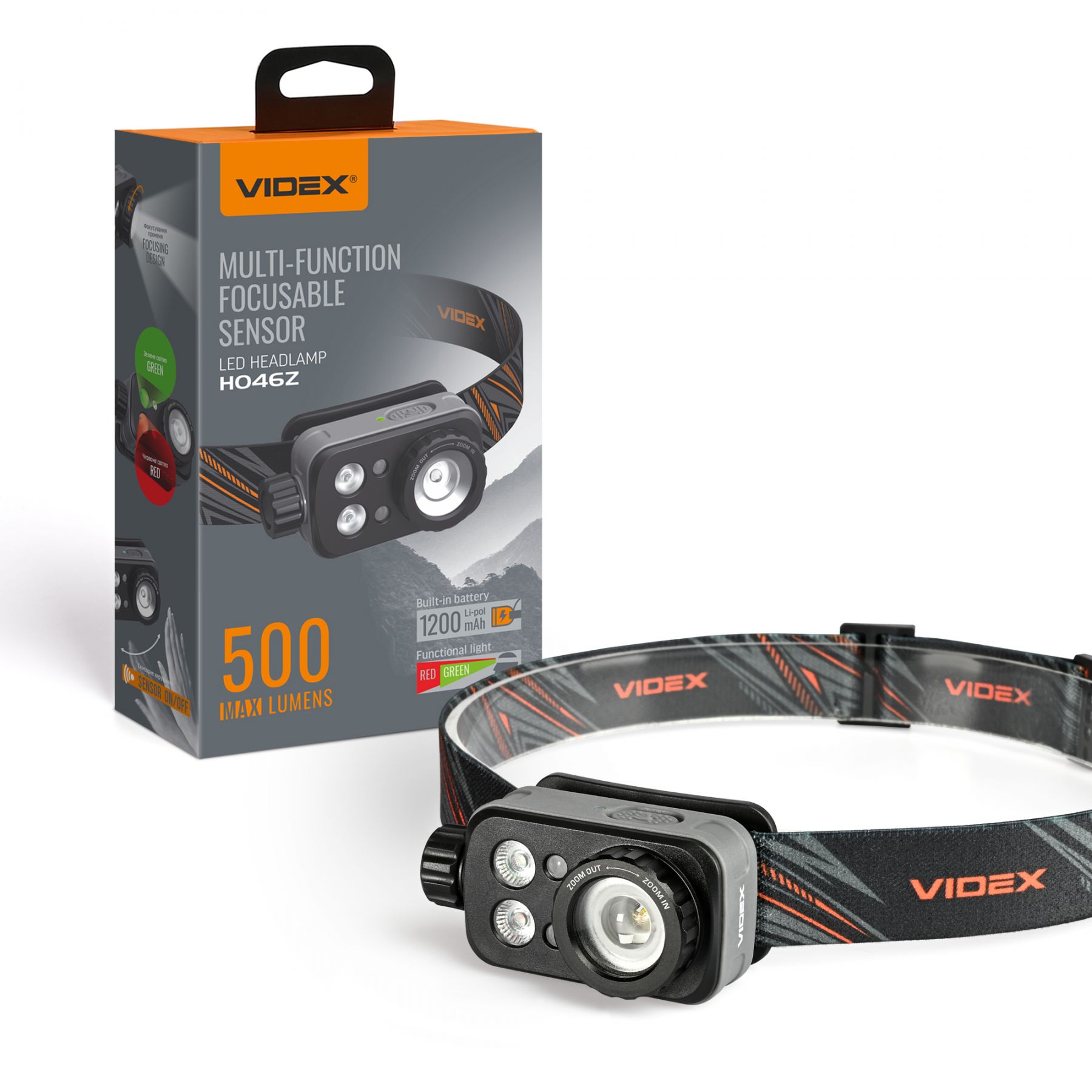

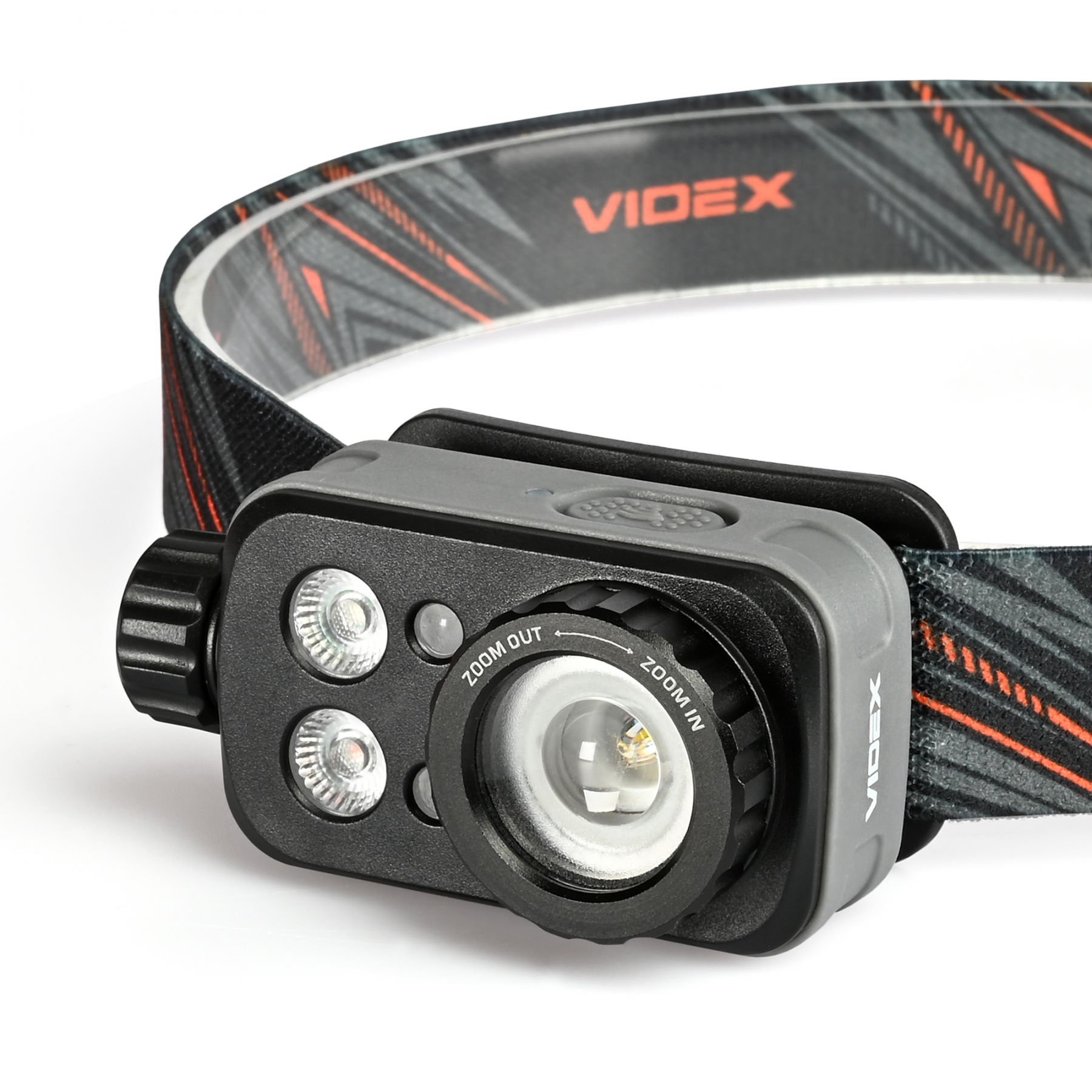

LED Headlamp VIDEX VLF-H046Z 500Lm 5000K. Features white, powerful red, and green light. Equipped with 12 modes, a beam focusing function, IP65 ingress protection, 2-meter drop protection, and an adjustable tilt angle, it enables versatile use in a variety of situations.
The flashlight modes can be controlled using the buttons on its body or with hand gestures thanks to the motion sensor. The flashlight is powered by a built-in 1200mAh Li-Pol battery.
FLASHLIGHT CONTROL

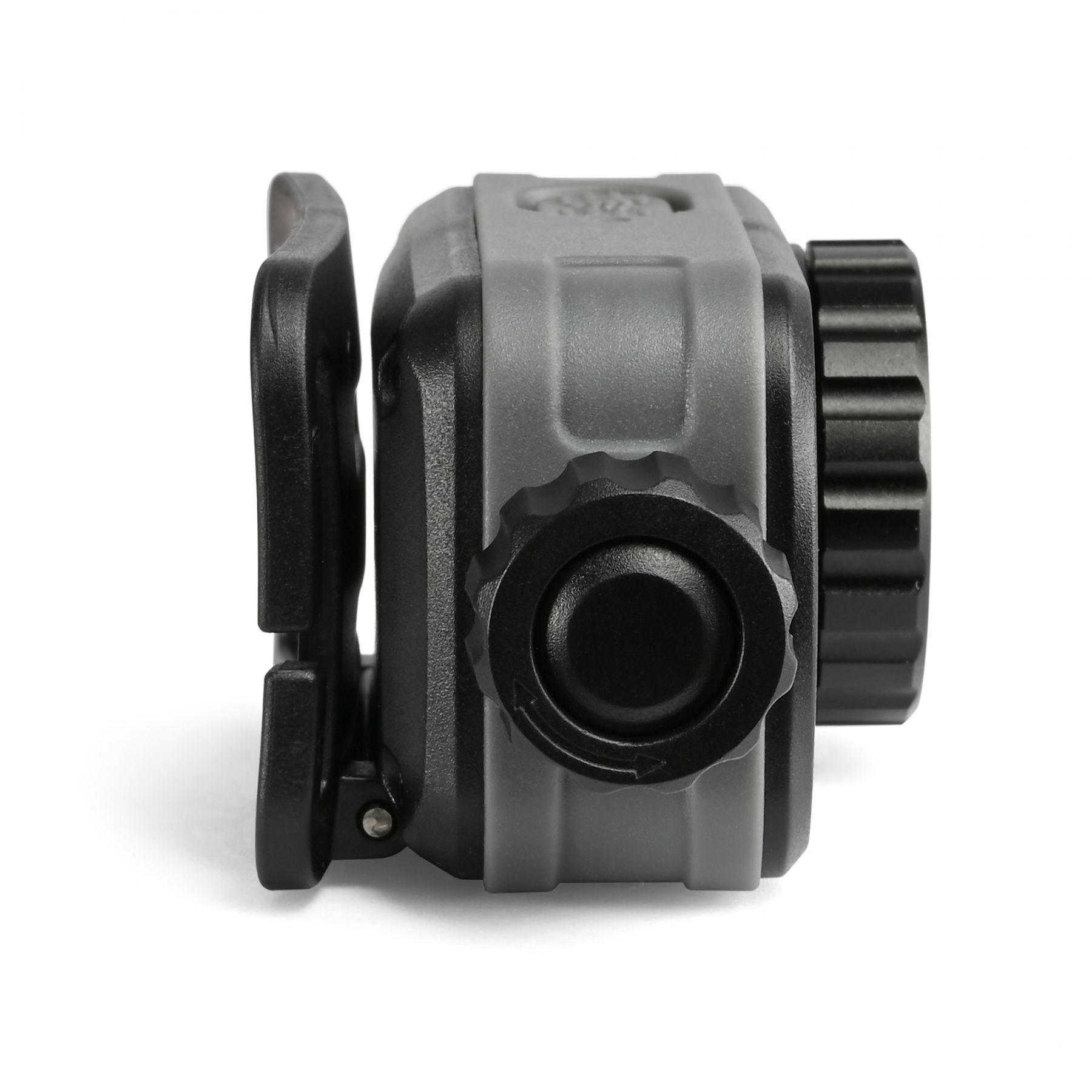

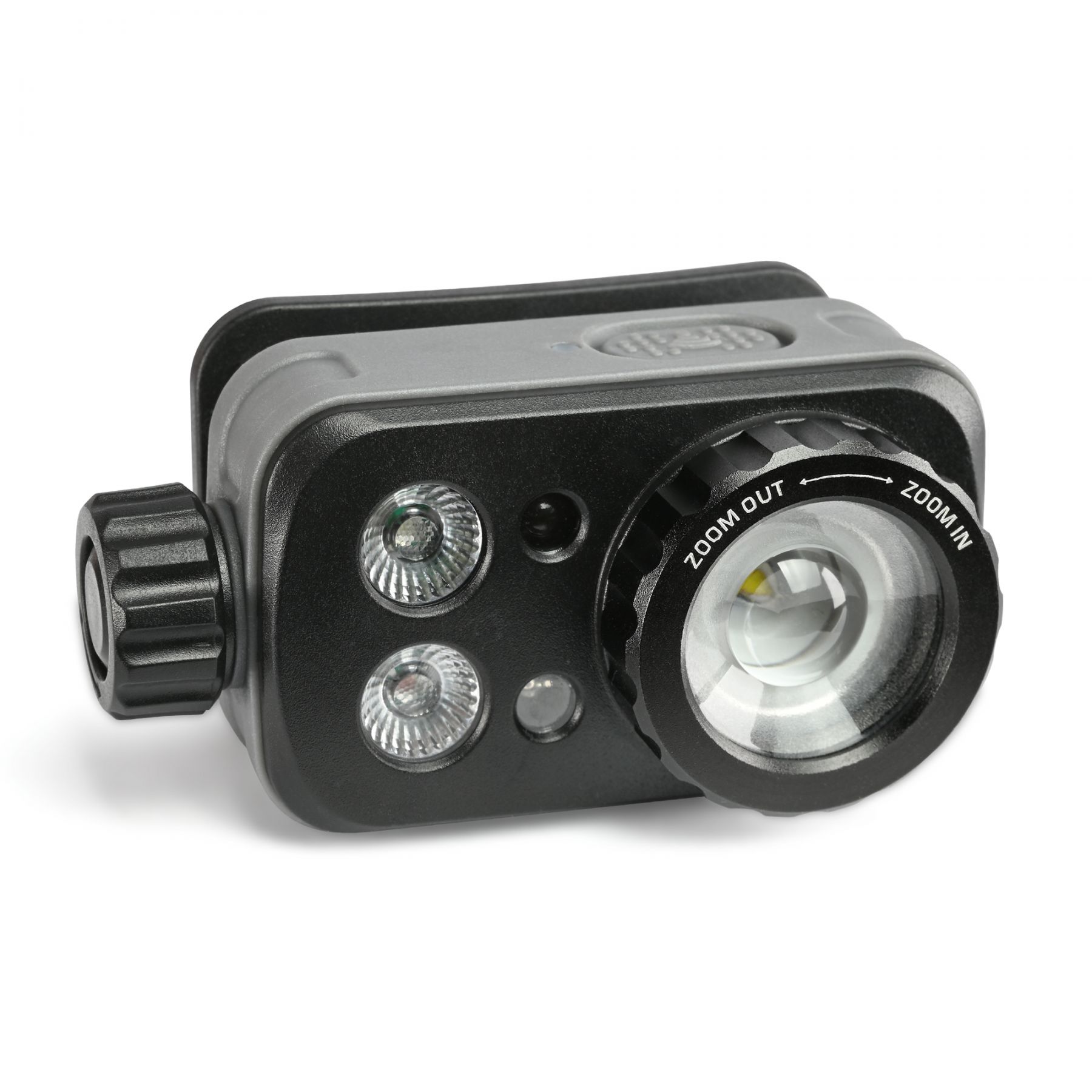

The flashlight is operated using a rotary switch, a side button, a sensor button, and a beam focusing mechanism.
1. Turn on the light and switch between brightness modes by rotating the rotary switch. To turn on the light at the lowest brightness level, turn the switch one step forward "away from you." To increase brightness, continue rotating the switch. This allows quick switching between modes.
2. Switch between colors by pressing and holding the side button of the powered-on flashlight for 0.5 seconds.

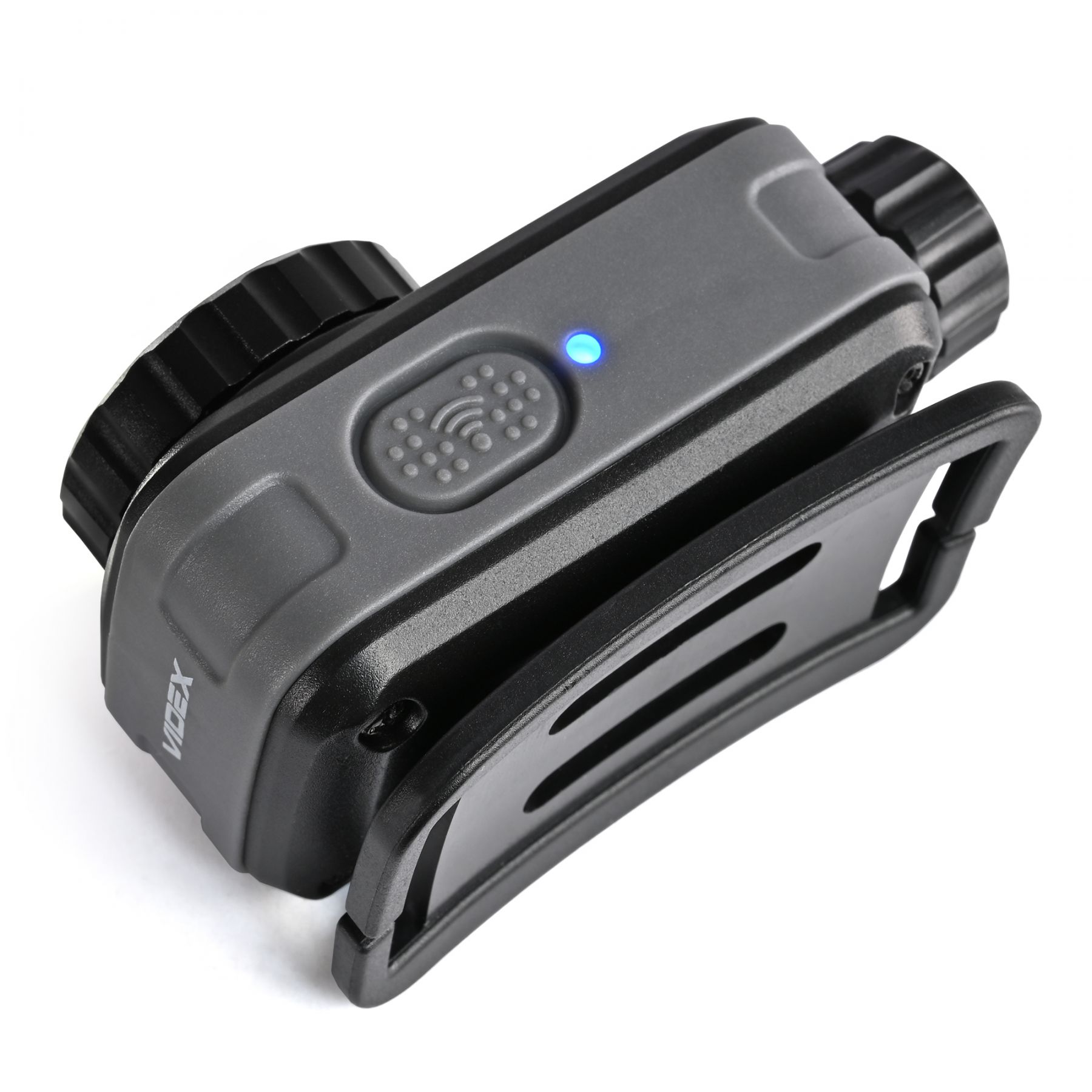

3. To activate the motion sensor mode, press the sensor button once while the flashlight is on. The sensor indicator next to the button will light up to confirm activation. While the sensor is active, wave your hand once at about 5 cm in front of the flashlight to temporarily turn it off. Wave your hand again to turn it back on in the last selected mode.
4. To deactivate the motion sensor, press the sensor button once or rotate the rotary switch fully "toward you."

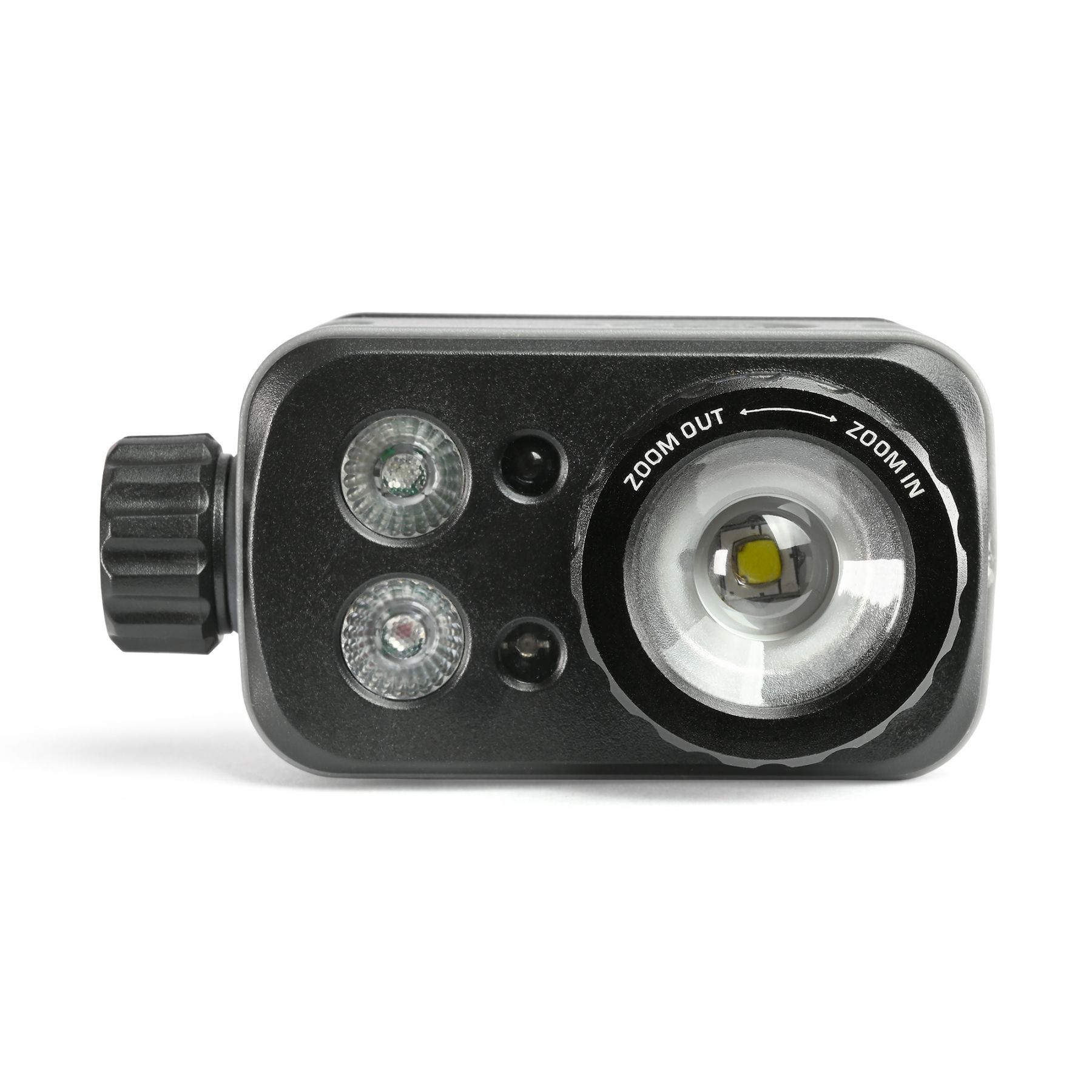

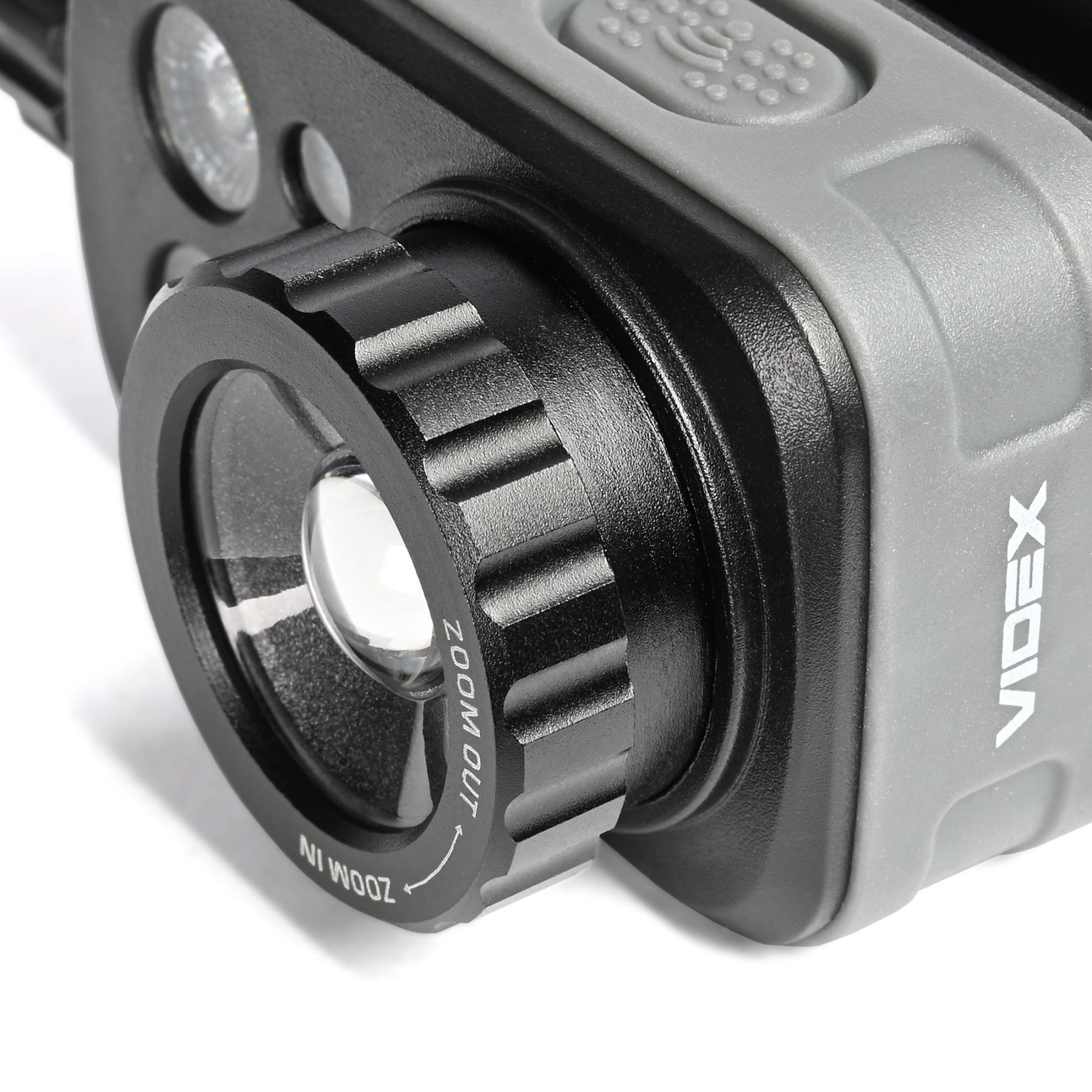

5. To adjust the beam angle, rotate the focusing mechanism to the right or left.
6. To turn off the flashlight, rotate the rotary switch fully "toward you."
FLASHLIGHT MODES

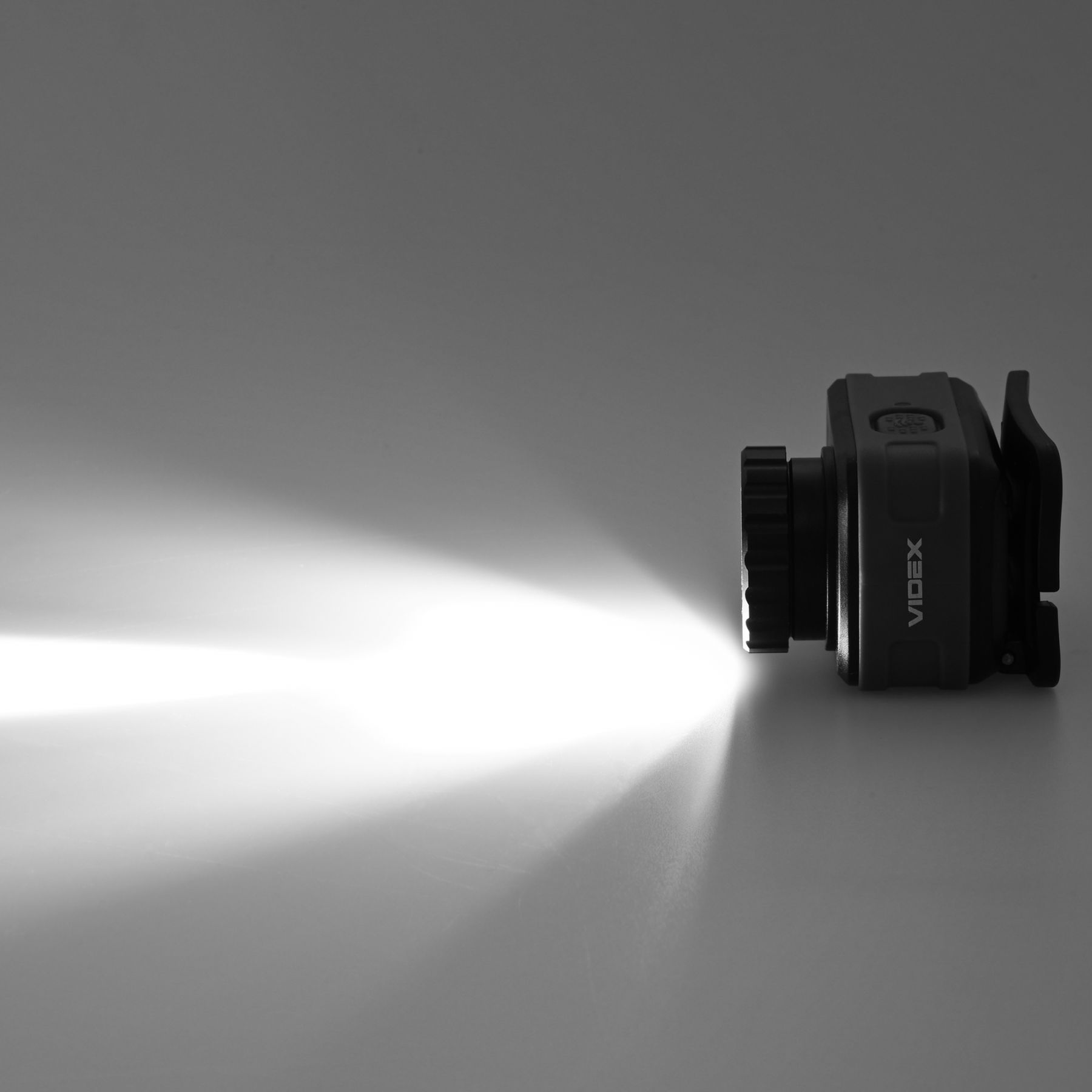

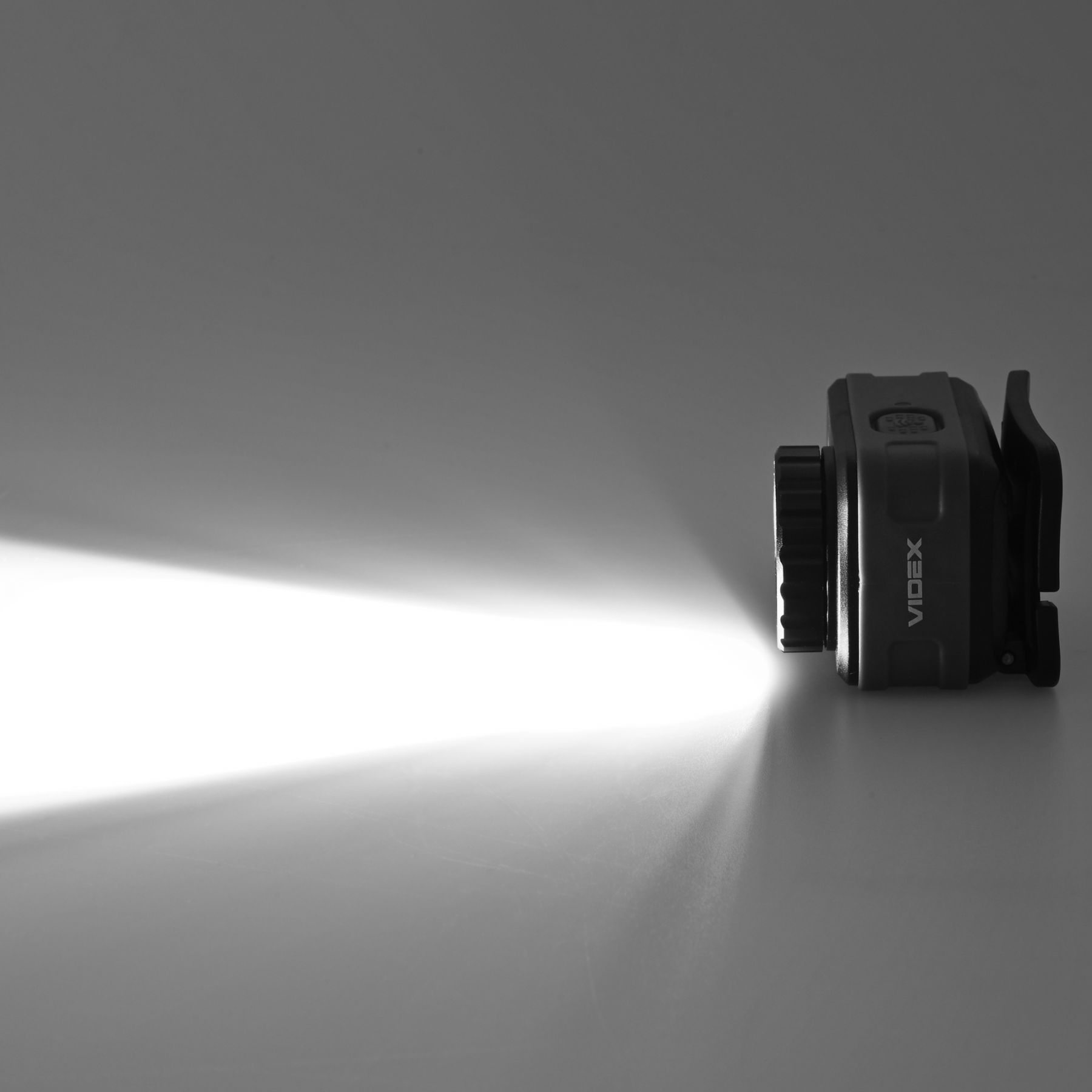

TURBO – maximum white light brightness of 500Lm. Lighting distance: 60m. Runtime: 3h. Luminous intensity: 920cd.
HIGH – high white light brightness mode, 300Lm. Lighting distance: 50m. Runtime: 4h. Luminous intensity: 950cd.
MIDDLE – medium white light brightness mode, 100Lm. Lighting distance: 30m. Runtime: 6h. Luminous intensity: 250cd.
LOW – low white light brightness mode, 25Lm. Lighting distance: 15m. Runtime: 25h. Luminous intensity: 40cd.

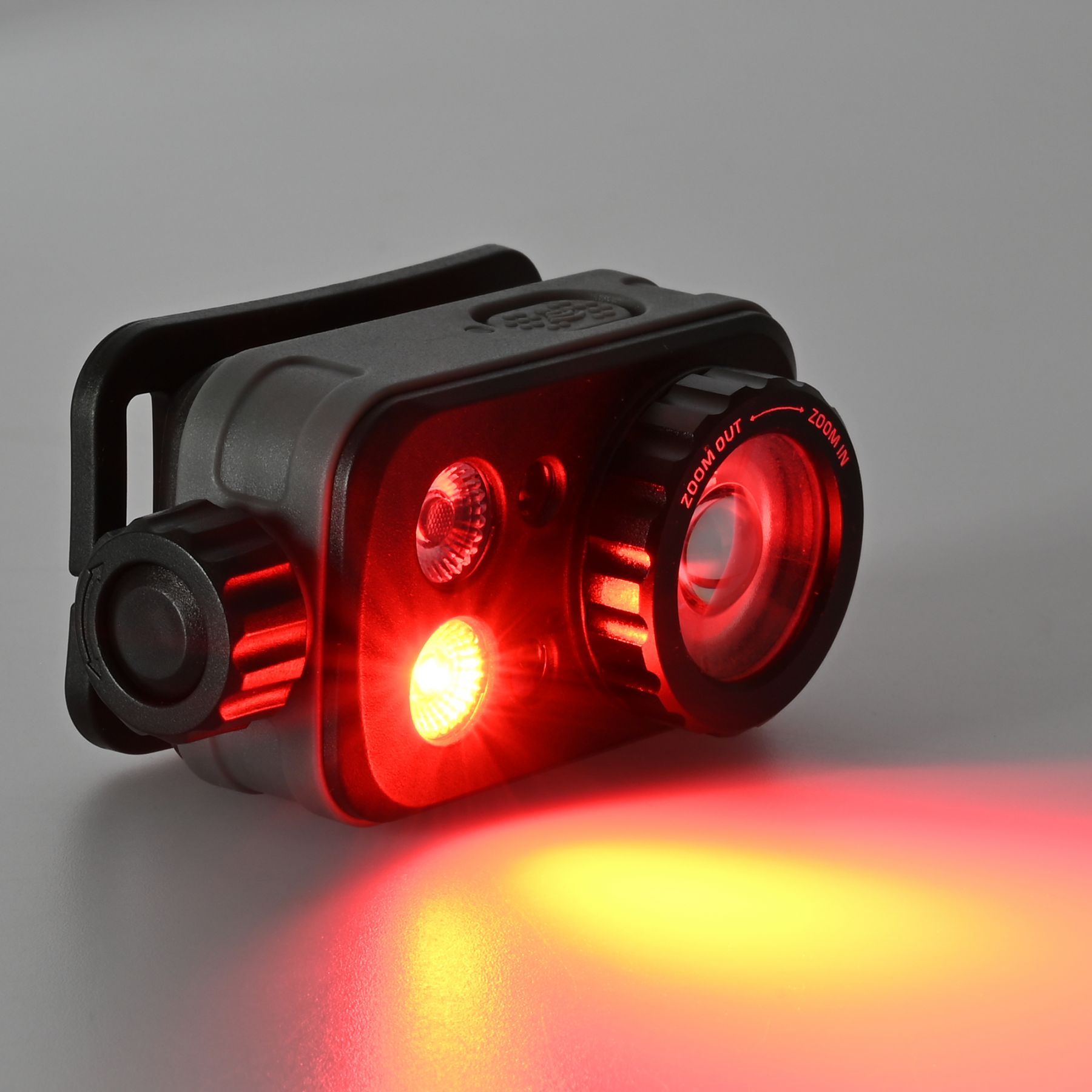

RED HIGH – red light maximum brightness mode, 70Lm. Lighting distance: 25m. Runtime: 4h. Luminous intensity: 130cd.
RED MIDDLE – red light medium brightness mode, 20Lm. Lighting distance: 10m. Runtime: 18h. Luminous intensity: 12cd.
RED LOW – red light minimum brightness mode, 5Lm. Lighting distance: 2m. Runtime: 50h. Luminous intensity: 1cd.
RED FLASH – flashing red light mode, 5Lm. Lighting distance: 2m. Runtime: 70h. Luminous intensity: 1cd.

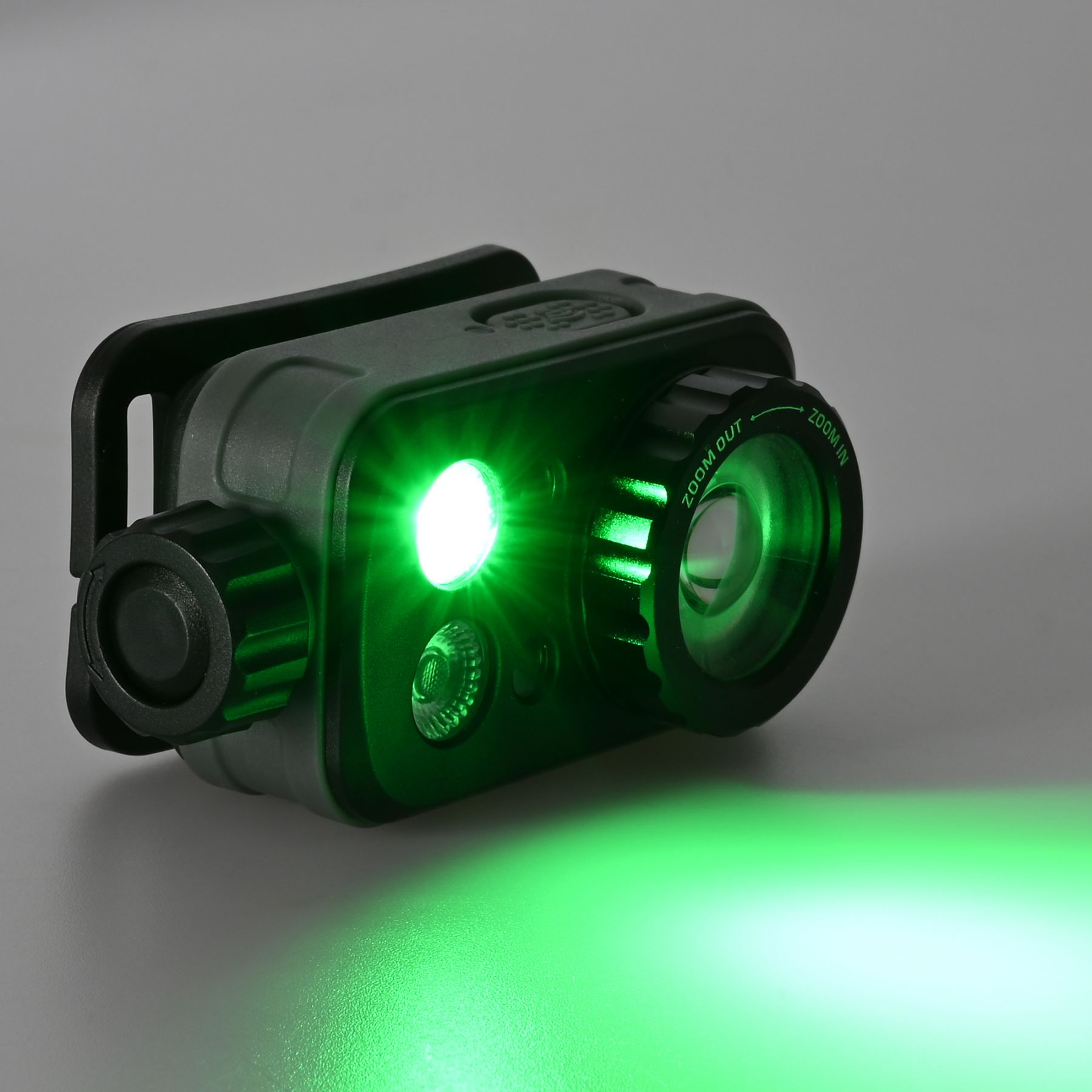

GREEN HIGH – green light maximum brightness mode, 70Lm. Lighting distance: 25m. Runtime: 8h. Luminous intensity: 120cd.
GREEN MIDDLE – green light medium brightness mode, 20Lm. Lighting distance: 10m. Runtime: 28h. Luminous intensity: 12cd.
GREEN LOW – green light minimum brightness mode, 5Lm. Lighting distance: 2m. Runtime: 124h. Luminous intensity: 1cd.
GREEN FLASH – flashing green light mode, 5Lm. Lighting distance: 2m. Runtime: 173h. Luminous intensity: 1cd.
The flashlight automatically remembers the last selected color and restores it each time it is turned on until a new color is chosen.
CHARGING

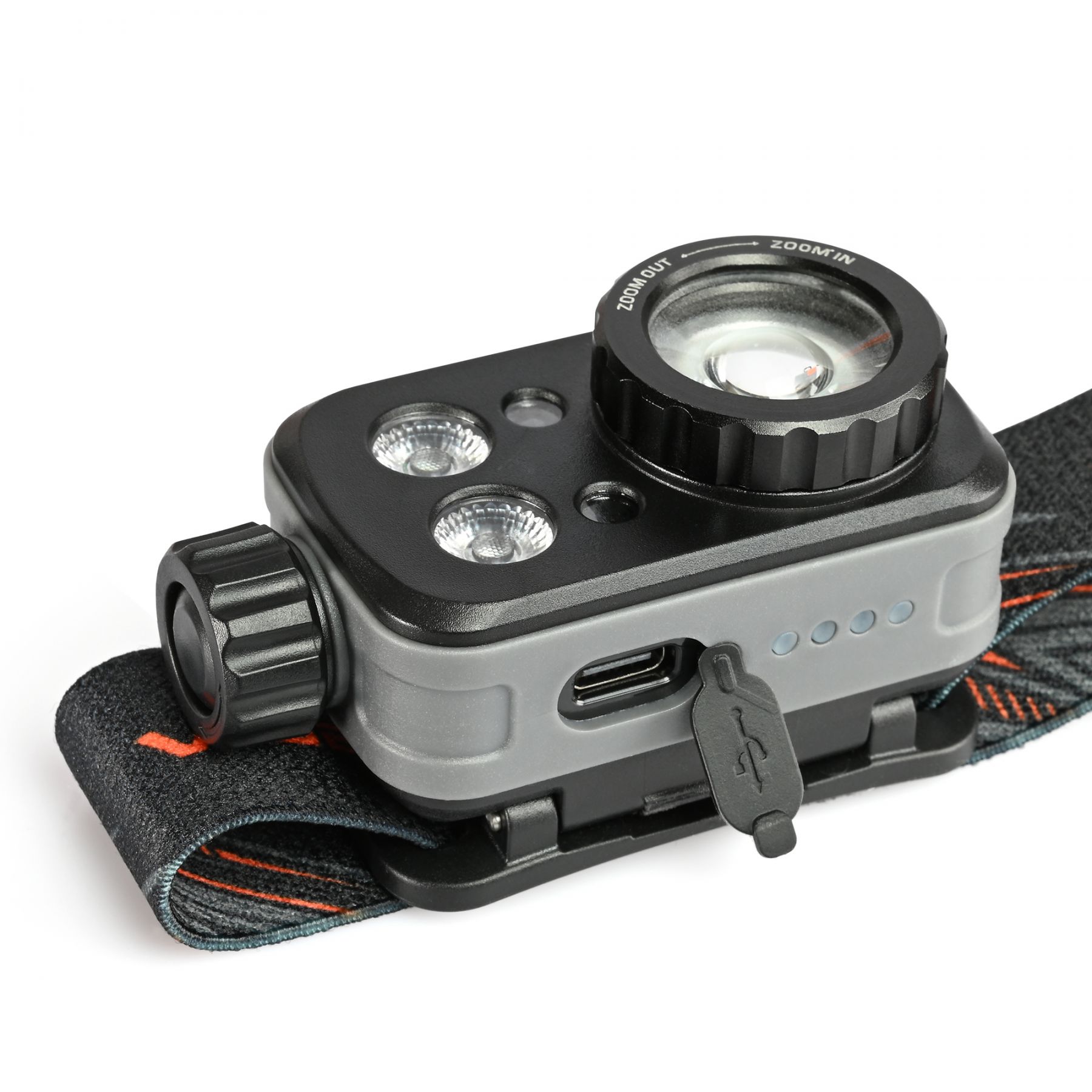

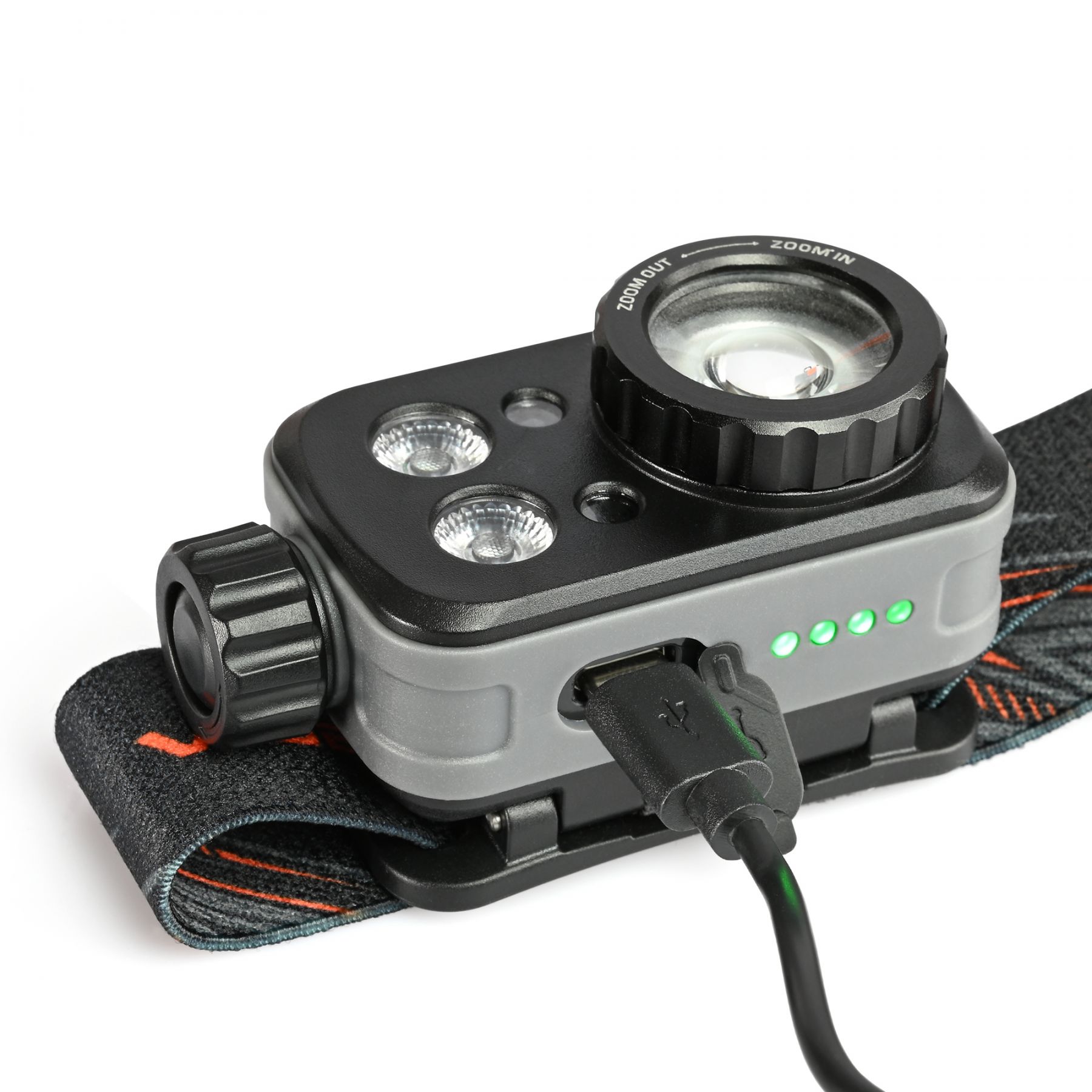

The flashlight is charged using the included USB-C charging cable. To charge the flashlight, turn it off and remove the protective silicone cover. Connect the USB-A end of the charging cable to a power source and the other end to the input port of the headlamp. During charging, the indicator segments will flash, showing the current battery level. When fully charged, all segments will remain steadily lit. After charging, disconnect the cable and tightly close the protective cover to prevent water and dust from entering the headlamp. ATTENTION! It is strictly prohibited to use the flashlight while charging.
When the flashlight is off, pressing the side button once activates the battery level indicator located at the bottom of the body near the charging port. The indicator remains visible for 3 seconds unless turned off earlier by pressing the power button again.
- Four green bars: 100–75% charge.
- Three green bars: 74–50% charge.
- Two green bars: 49–25% charge.
- One green bar: 24–1% charge.
The warranty period for the flashlight is 2 years. The warranty does not cover accessories.
