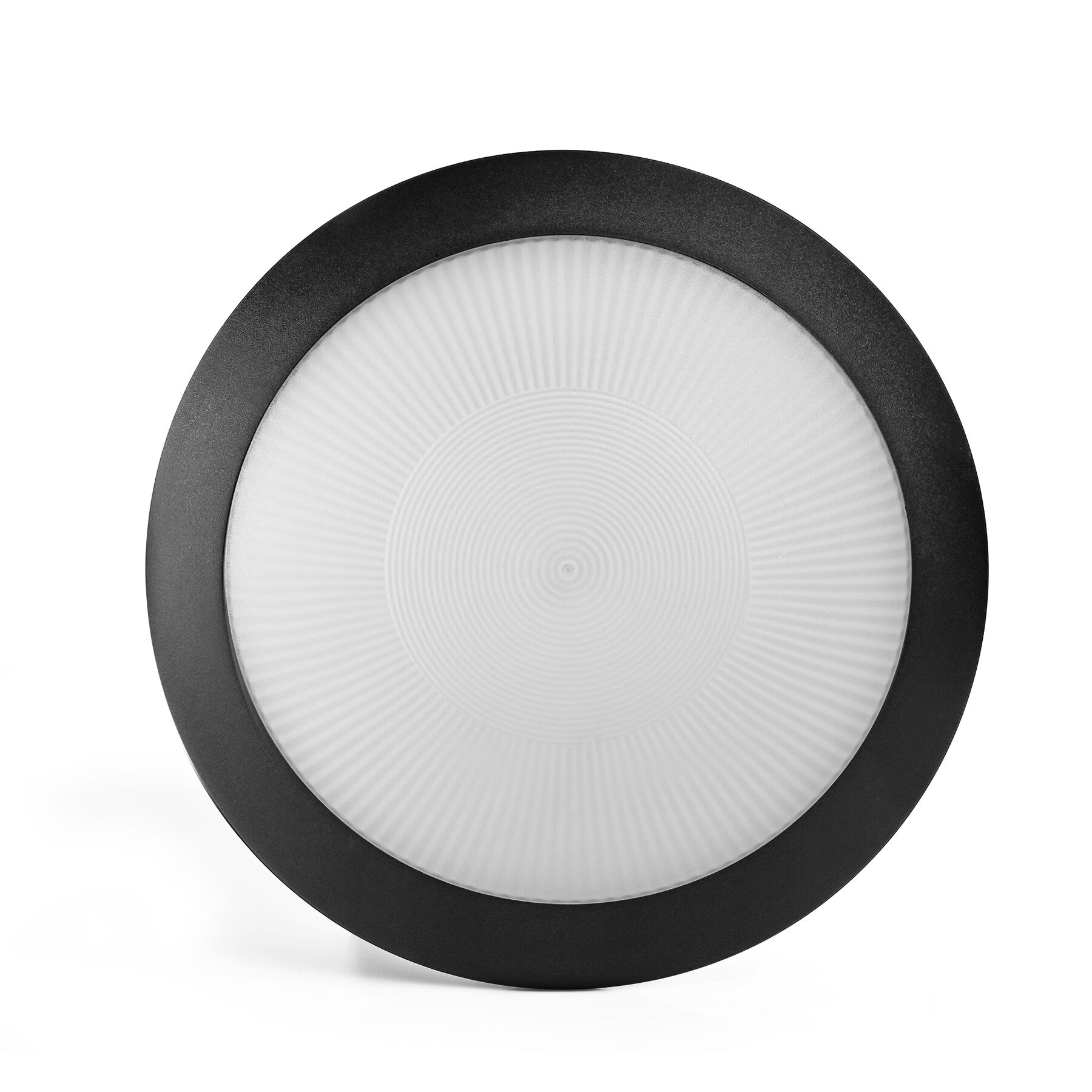

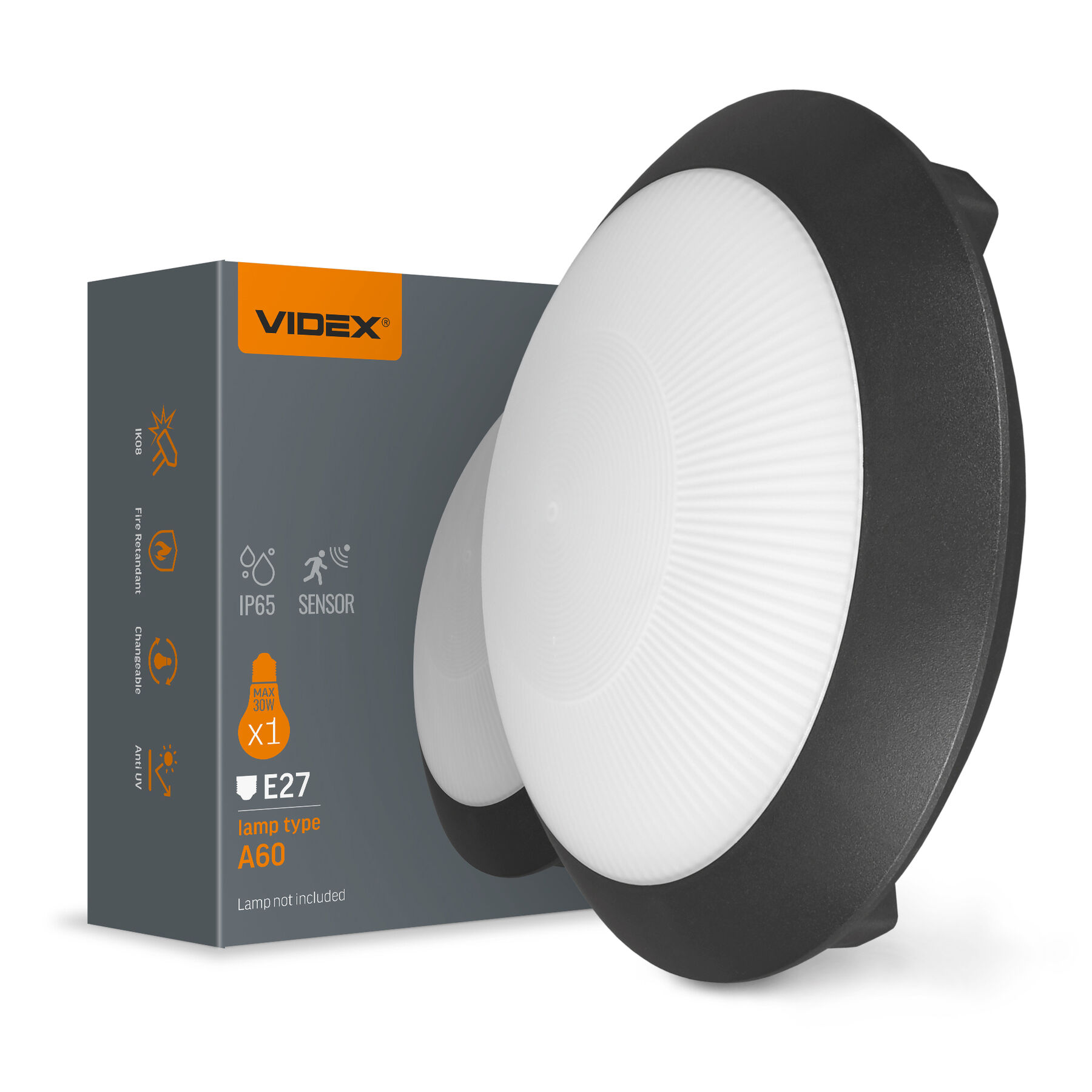

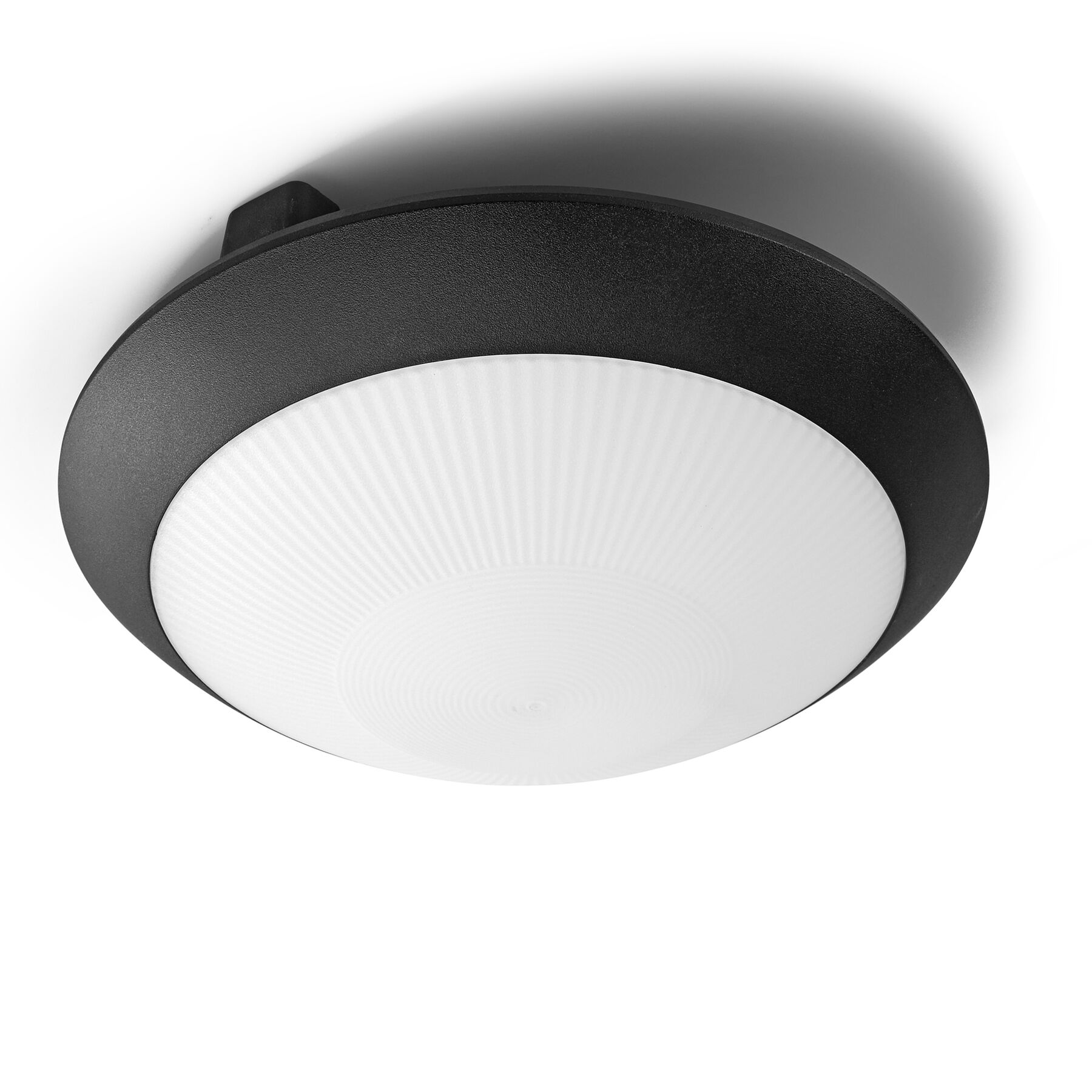

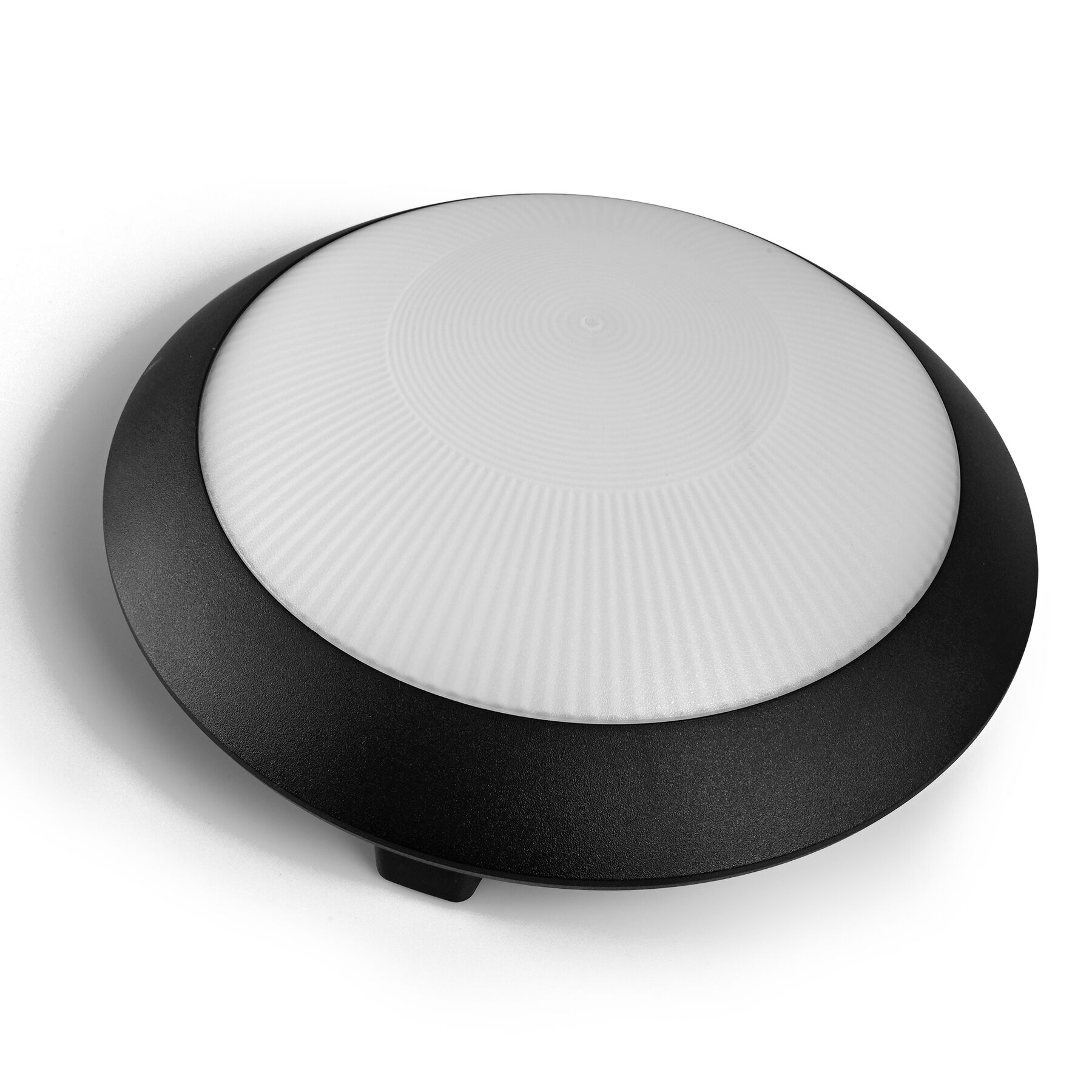

Ceiling-mounted Light Fixture with microwave motion sensor VIDEX VL-BHR-E2726SB

Ceiling-mounted Light Fixture with microwave motion sensor VIDEX VL-BHR-E2726SB

Index: VL-BHR-E2726SB

Add to favorites Add to compare

Parameters

EAN:

4820246487894
On-mode power (Pon):

30W Max
Rated voltage, frequency:

AC 230 V, 50/60 Hz
Place of installation :

Flat surface, Wall
Place of application:

indoor, outdoor
Housing colour:

Black
- Impact protection:

  IK08
- Input interface:

  Terminal block
- Electric shock protection class:

  II
- Minimum distance from the illuminated object:

  0.5 m
- Diffuser material:

  Polycarbonate (PC)
- Ultraviolet radiation:

  no
- Motion sensor:

  yes
- Sensor type:

  Microwave
- Sensor detection angle:

  360°
- Sensor time delay:

  20 s - 10 min
- Sensor detection distance:

  1 - 5 m
- Operating temperature range:

  -30° +40°C
- Sensor light threshold:

  10-50 Lx
- Light source replaceable:

  end user
- Mercury content:

  Does not contain
- Ingress protection:

  IP65
- Housing material:

  Plastic
- Height:

  265 mm
- Width:

  265 mm
- Depth:

  91 mm
- In the package:

  1 pc.
- Outer box:

  10 pcs.
- Unit nett weight:

  570g
- Warranty:

  3 years

See all specifications

Description

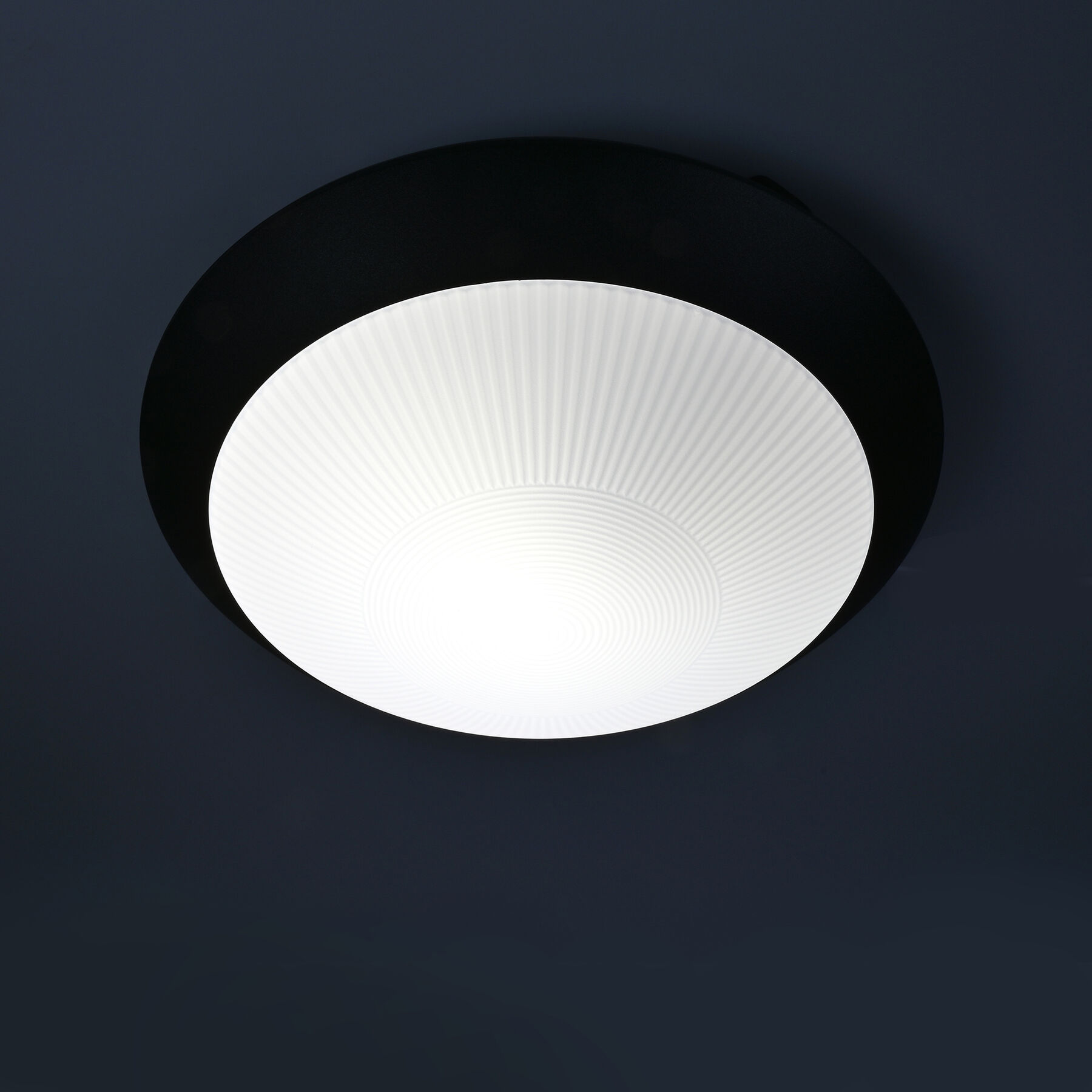

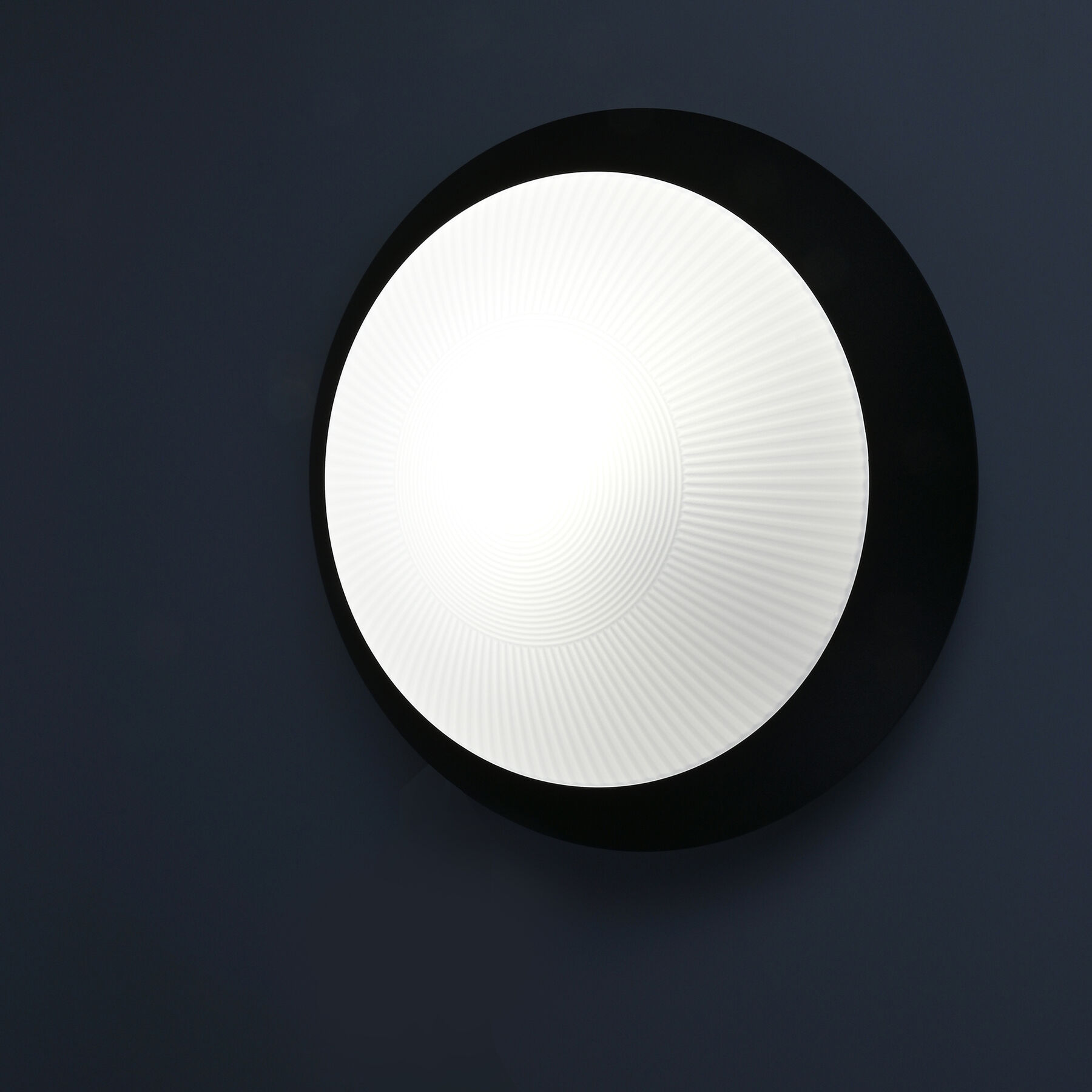

Ceiling-mounted Light Fixture with microwave motion sensor VIDEX VL-BHR-E2726SB is designed for both indoor and outdoor use. It is ideal for illuminating building facades, areas near entrance doors, under canopies, on balconies or terraces, as well as inside stairwells or rooms with high humidity levels.

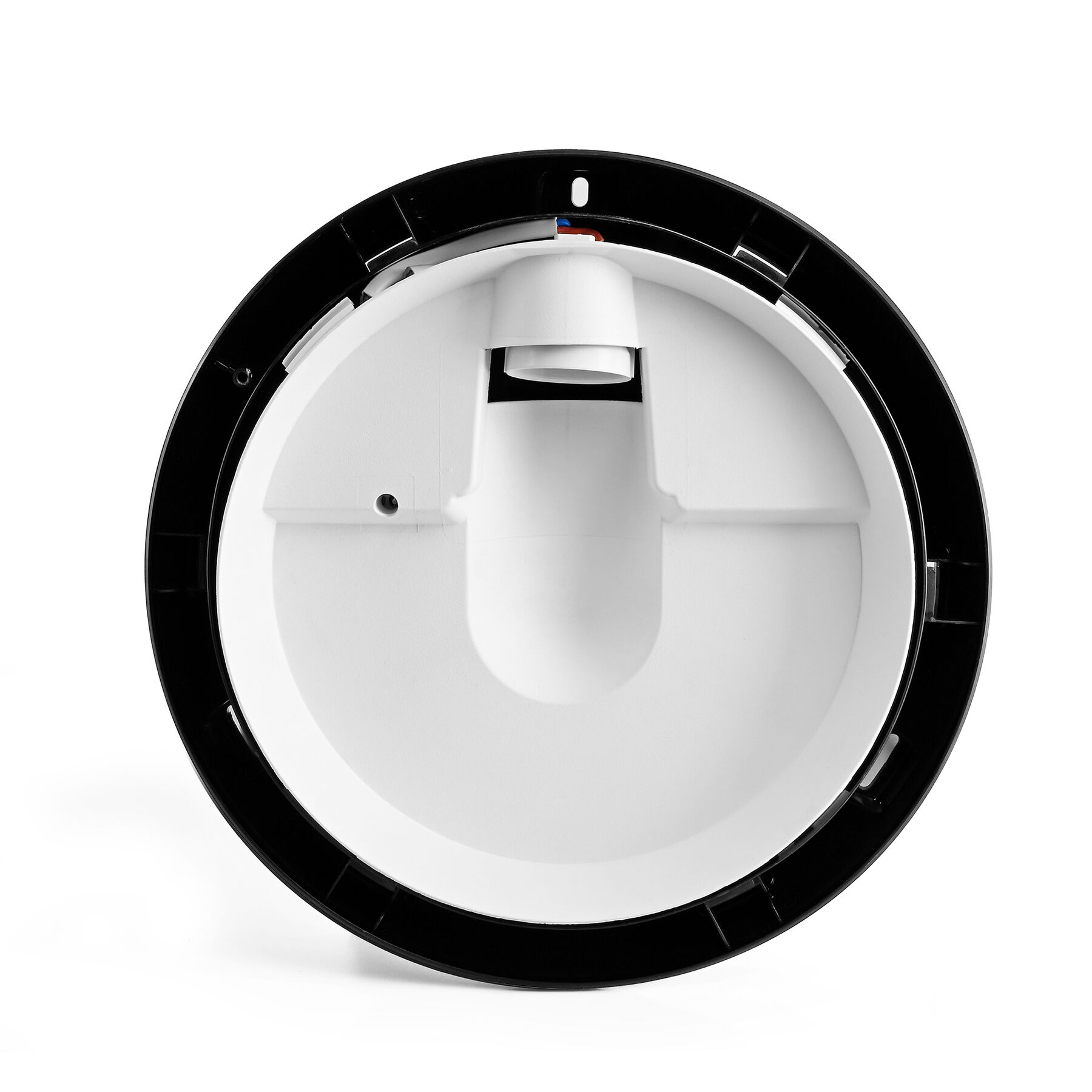

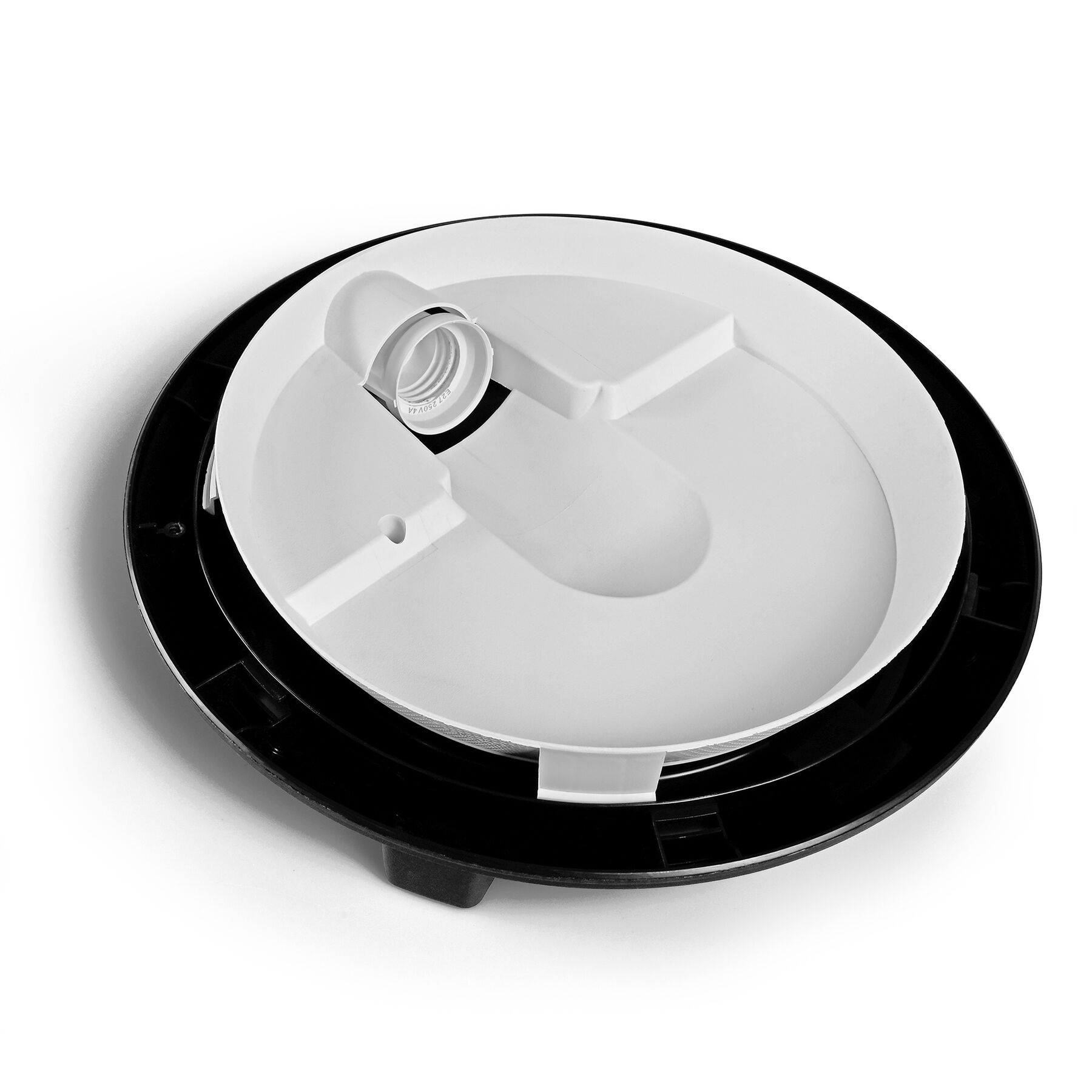

As a light source, it uses an LED bulb with an E27 base and a maximum power of up to 30W. The maximum dimensions of the bulb that can be installed in the fixture are 65×125 mm. The bulb is not included with the fixture!

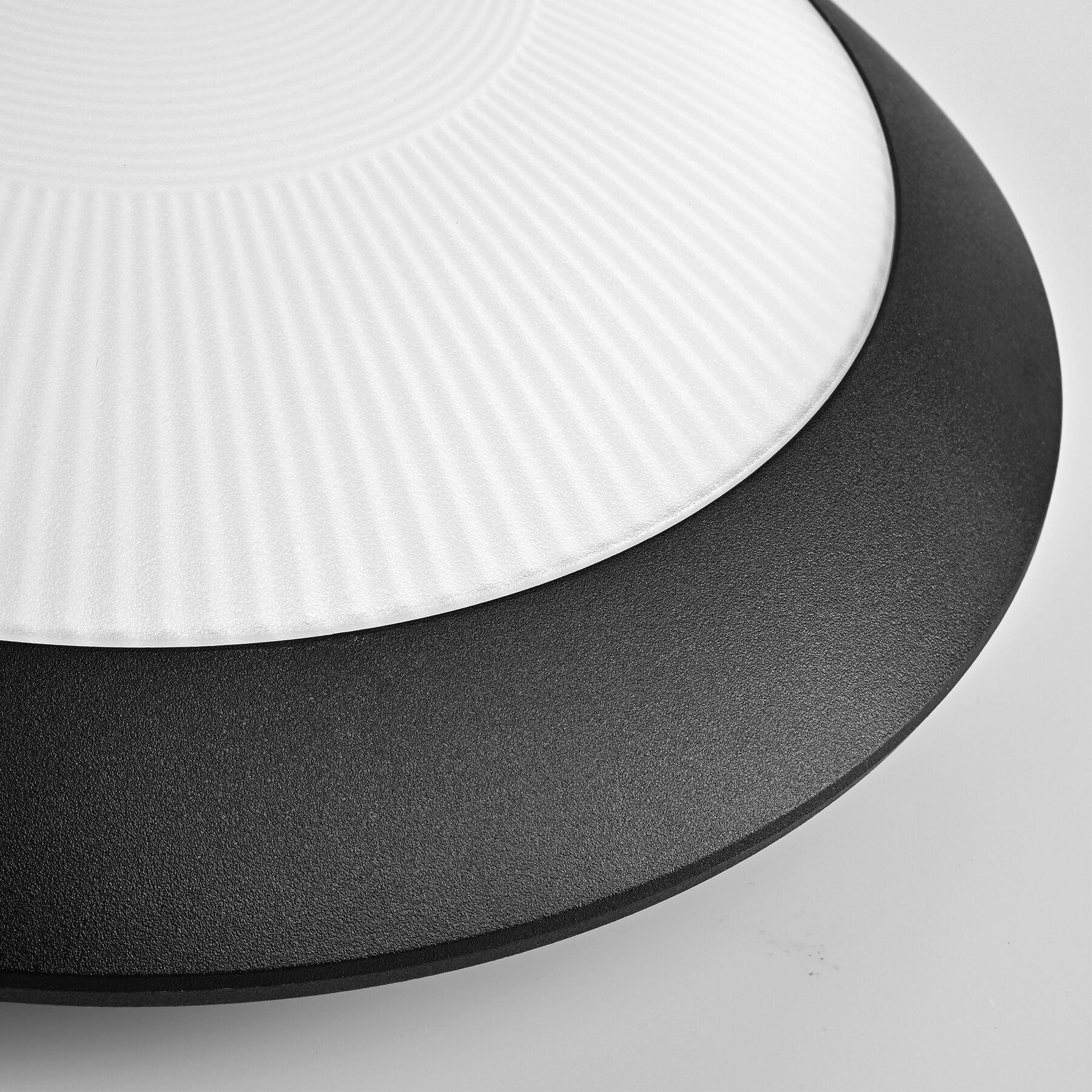

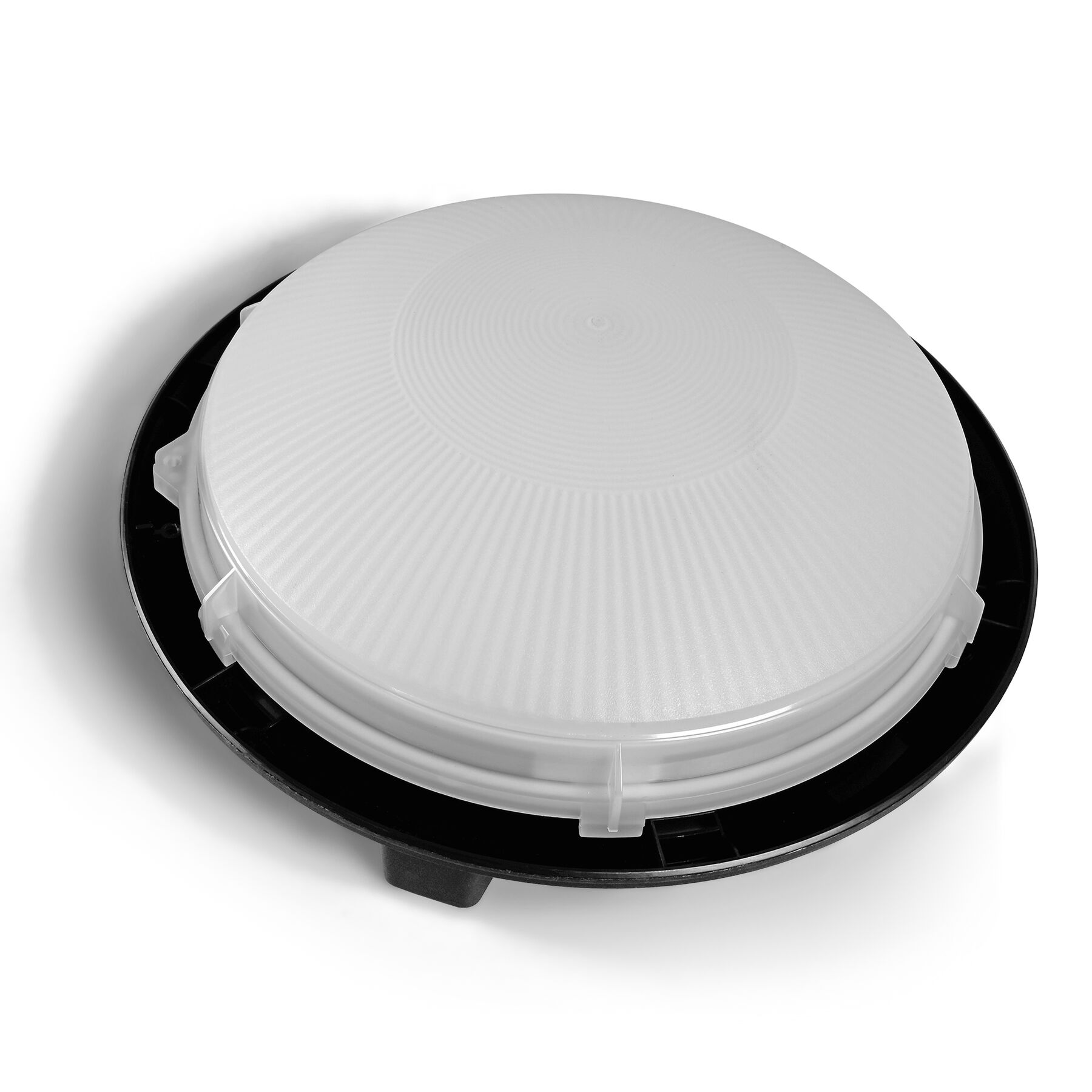

This light fixture features enhanced protection against dust and moisture (IP65). The housing is made of polycarbonate, which has a high level of resistance to mechanical damage, impacts, and falls (IK08).

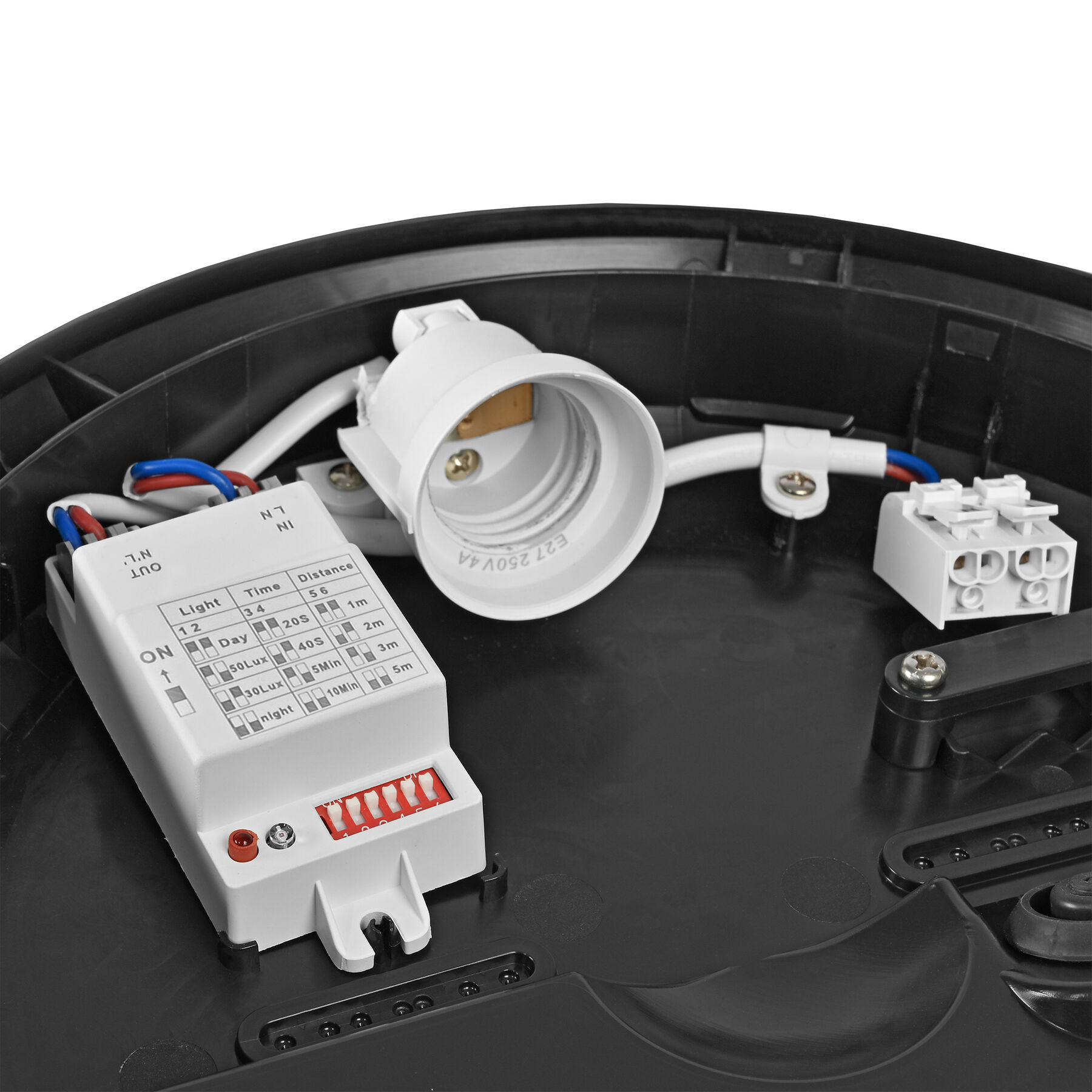

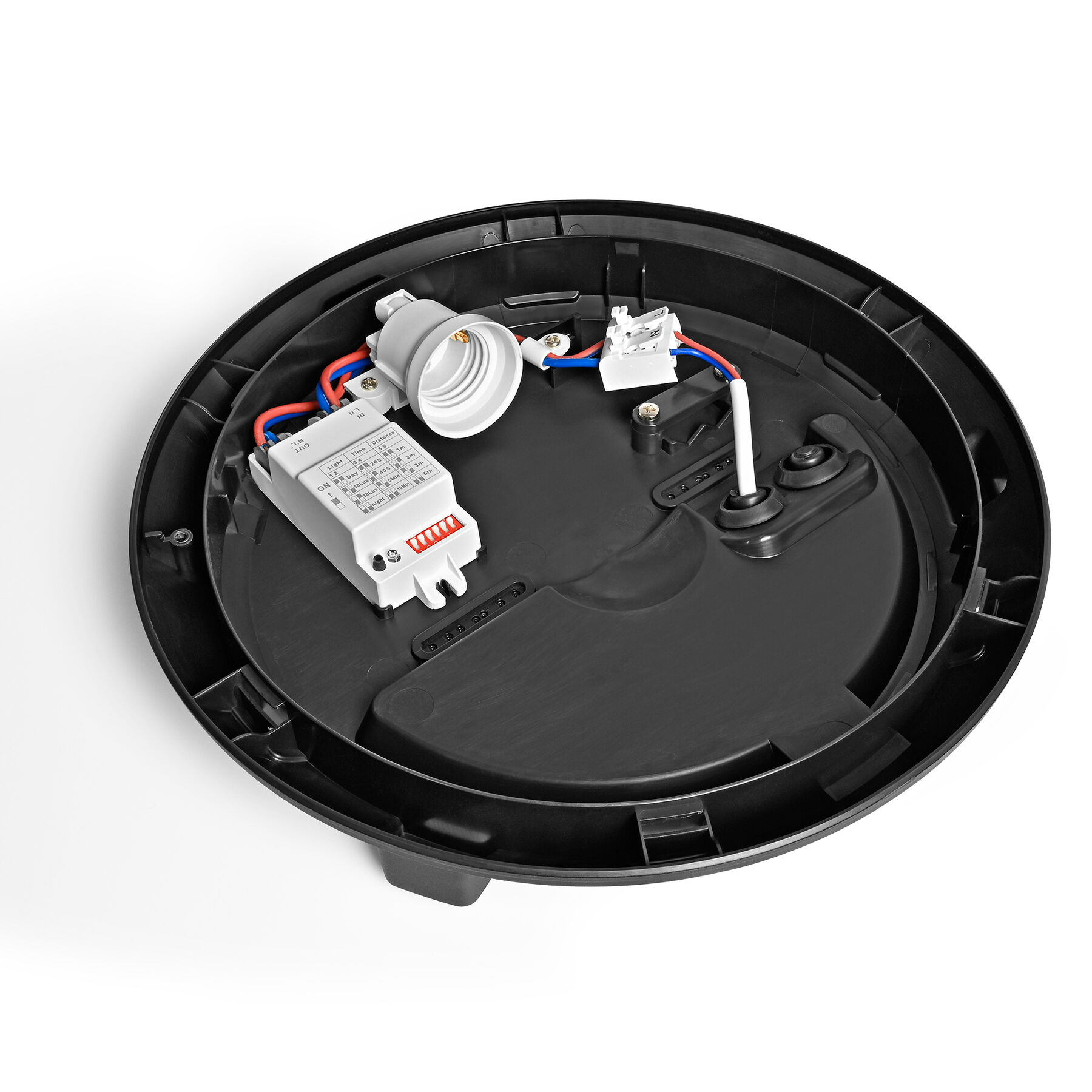

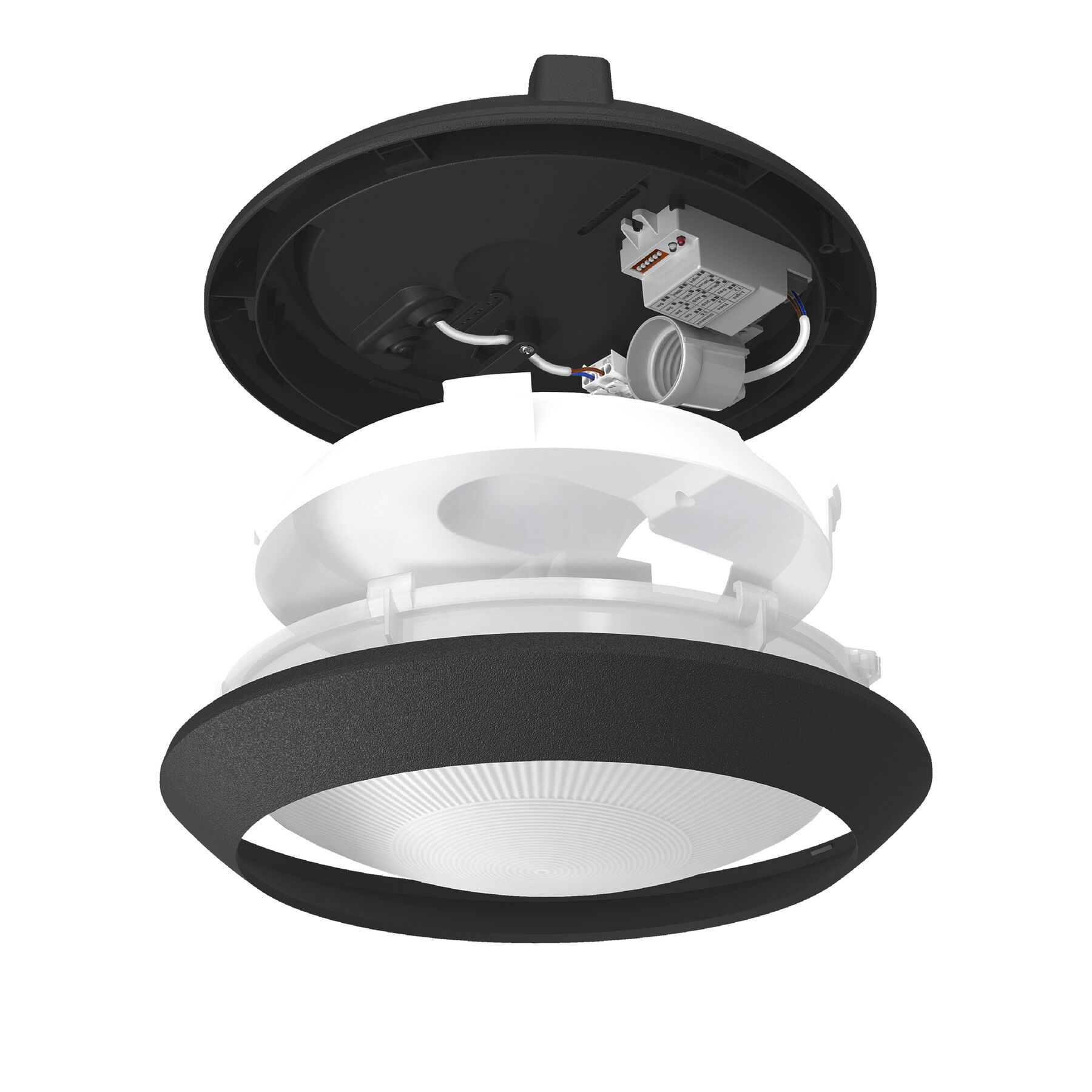

This model is equipped with a built-in microwave motion sensor.
- Motion and light sensor activation threshold – from 10 to 50 Lx.
- Detection distance – up to 5m.
- Delay time – from 20 seconds to 10 minutes.

The sensor parameters can be adjusted according to the wiring diagram provided in the instruction manual.

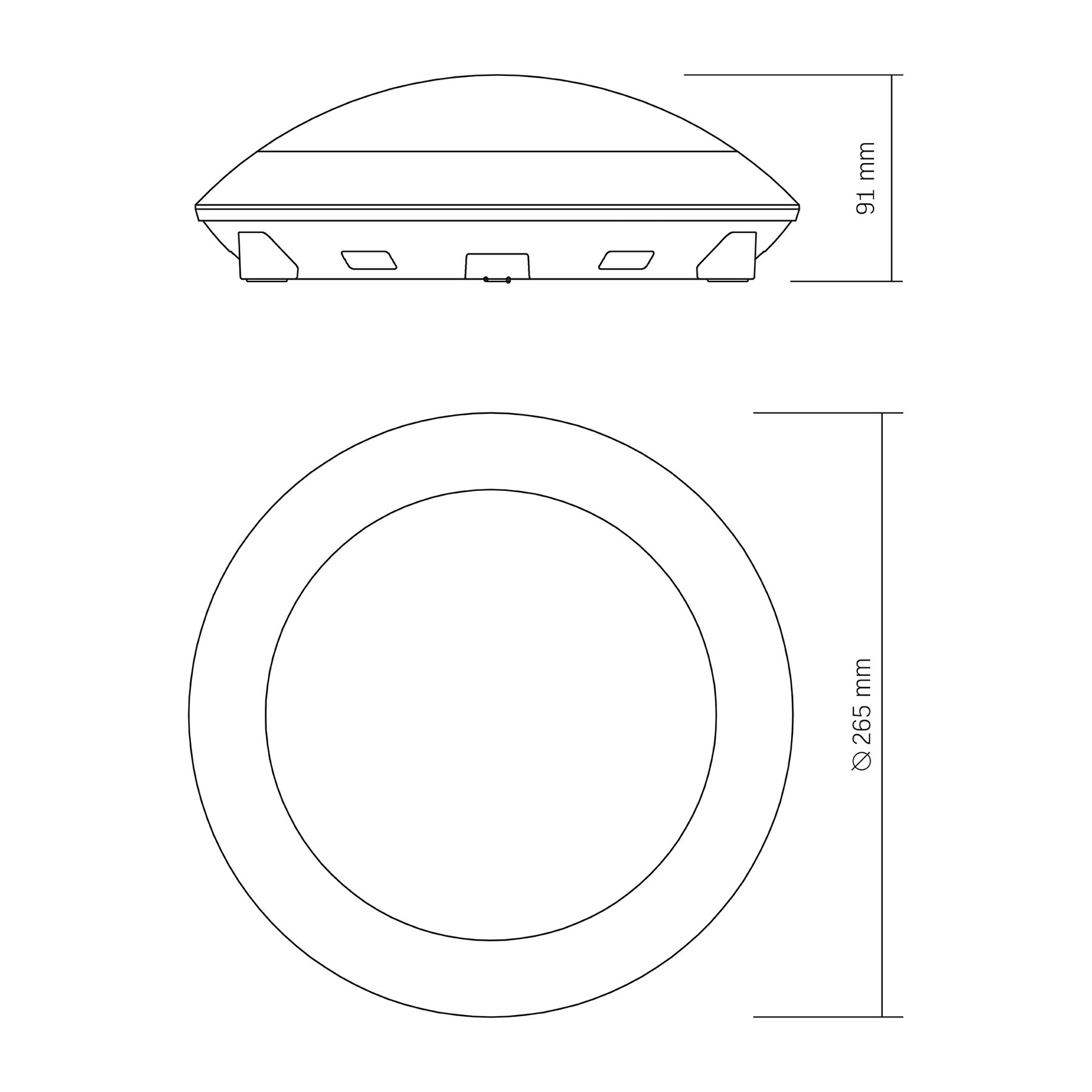

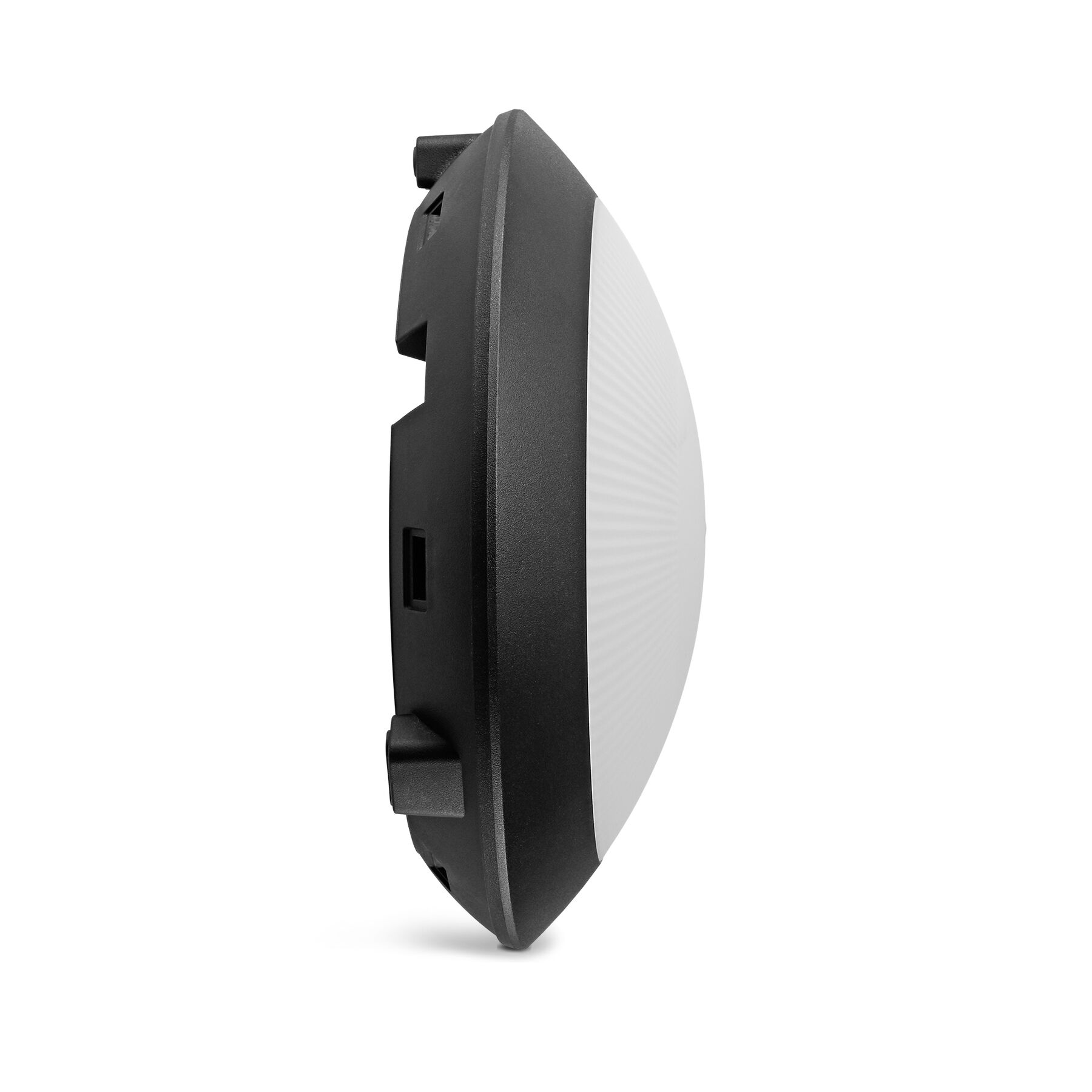

The fixture is installed in a surface-mounted way on horizontal surfaces. Operating voltage range: AC 230V, 50/60 Hz. Fixture dimensions: 265×91 mm.

INSTALLATION AND CONNECTION INSTRUCTIONS

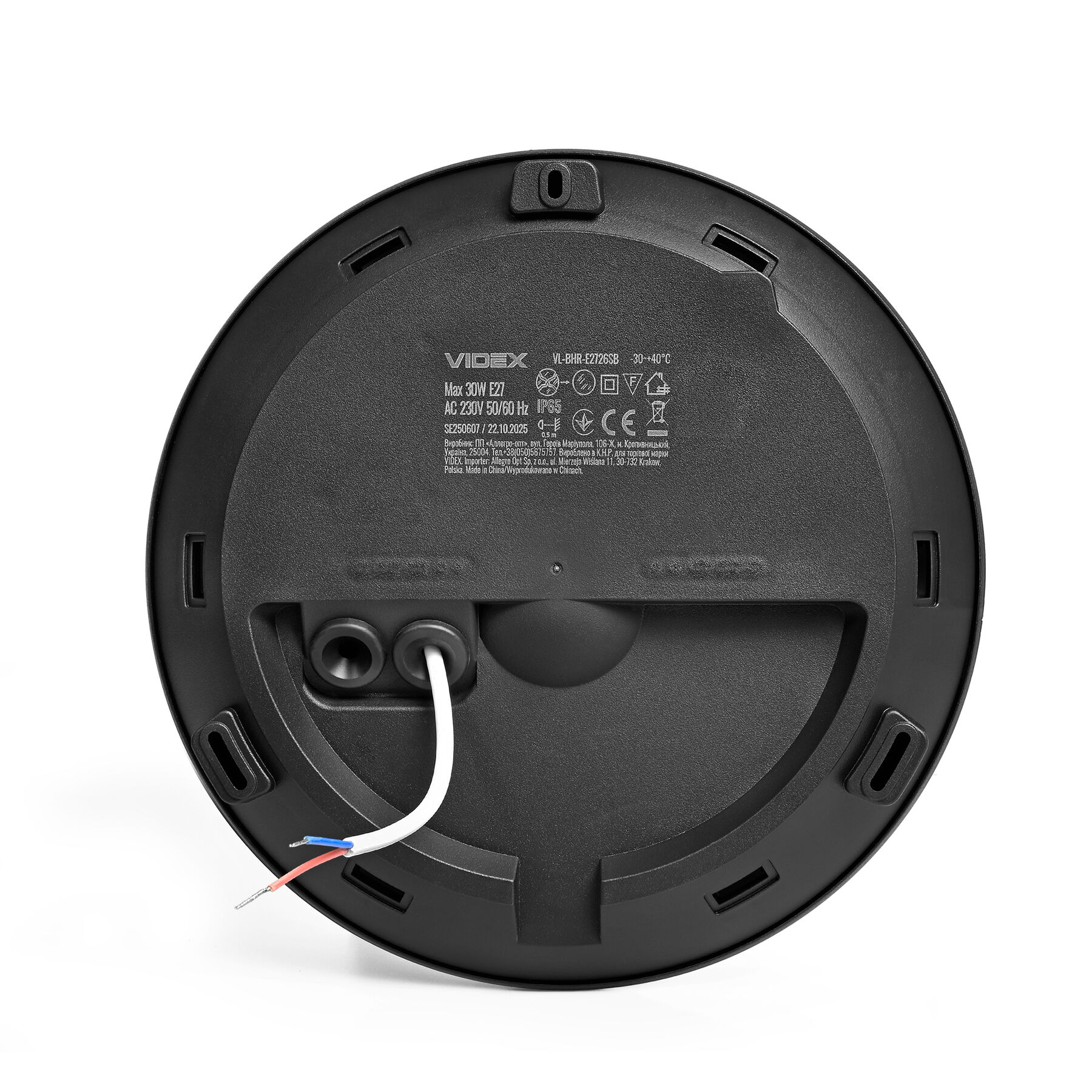

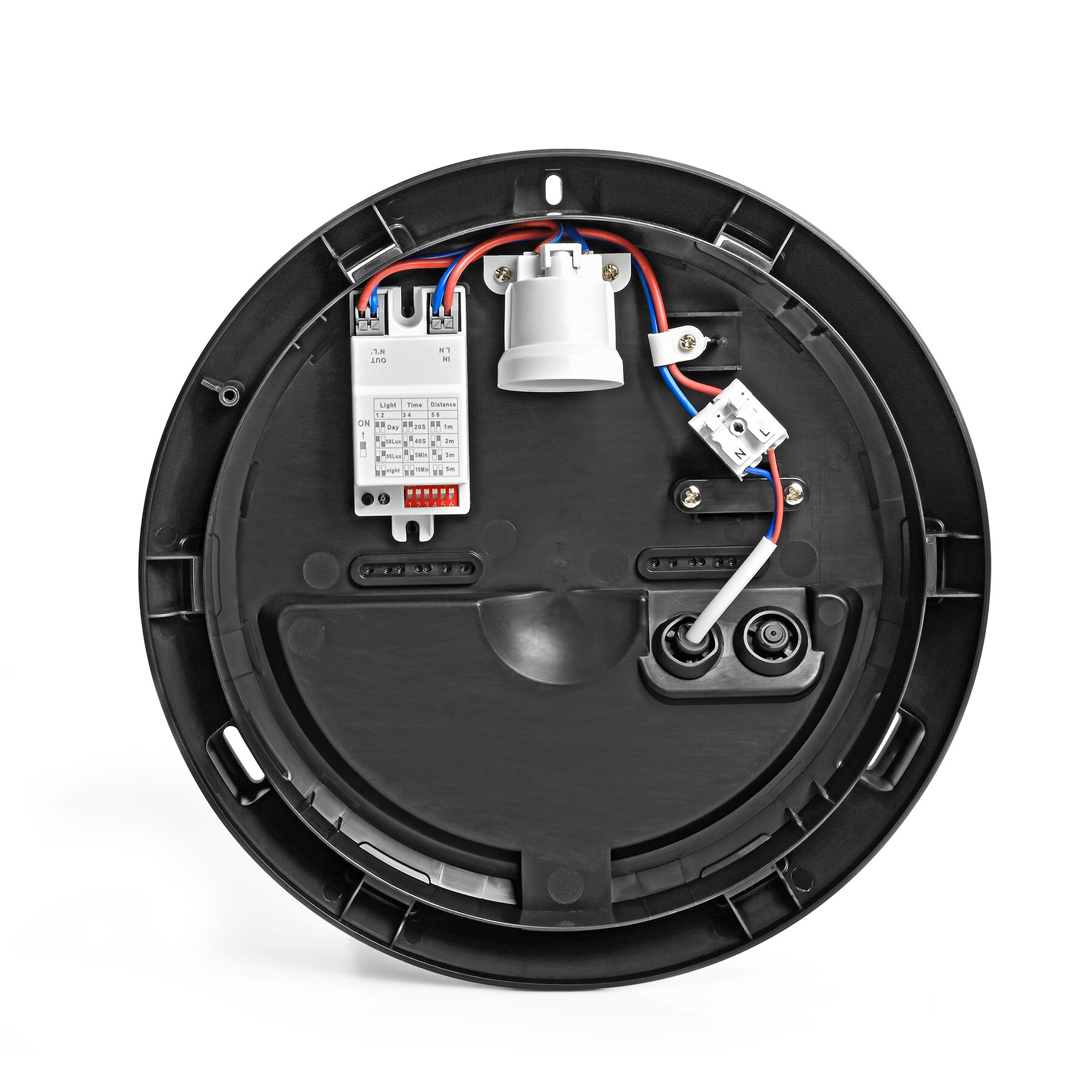

Always disconnect the power supply before replacing the light source. Read the manual before installation. Mounting should be carried out by a qualified specialist. Please perform the installation and connection according to the wiring diagram provided in the manual. The connection must be made using the built-in terminal block. Before first use, check the correctness of mechanical fastening and electrical connection. The product may only be used in an electrical network that meets the energy and quality standards established by law.

Only safe materials are used in production. The product ensures long-term service life, which is confirmed by a 3-year warranty.
