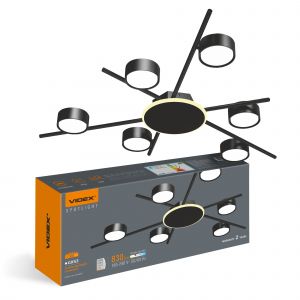

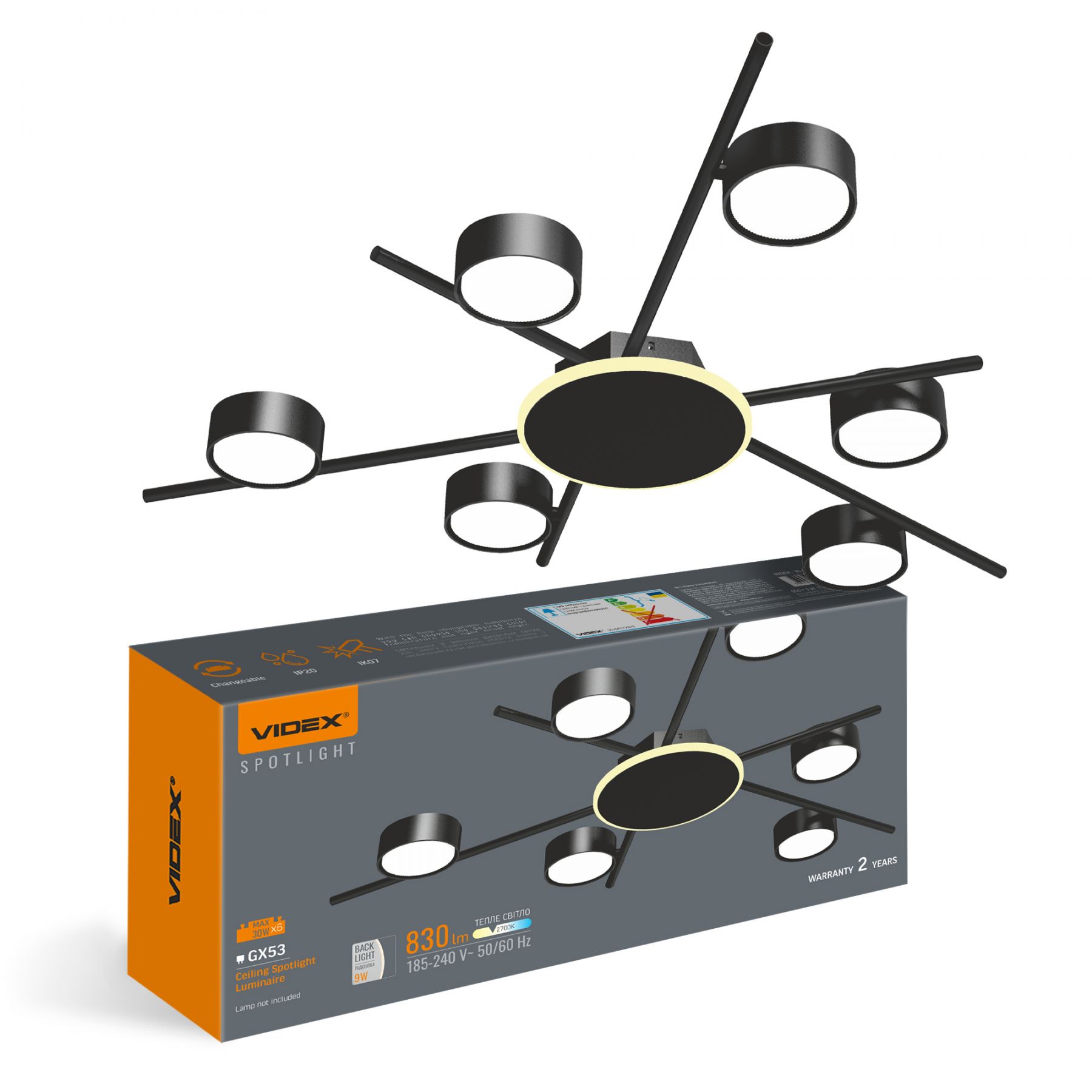

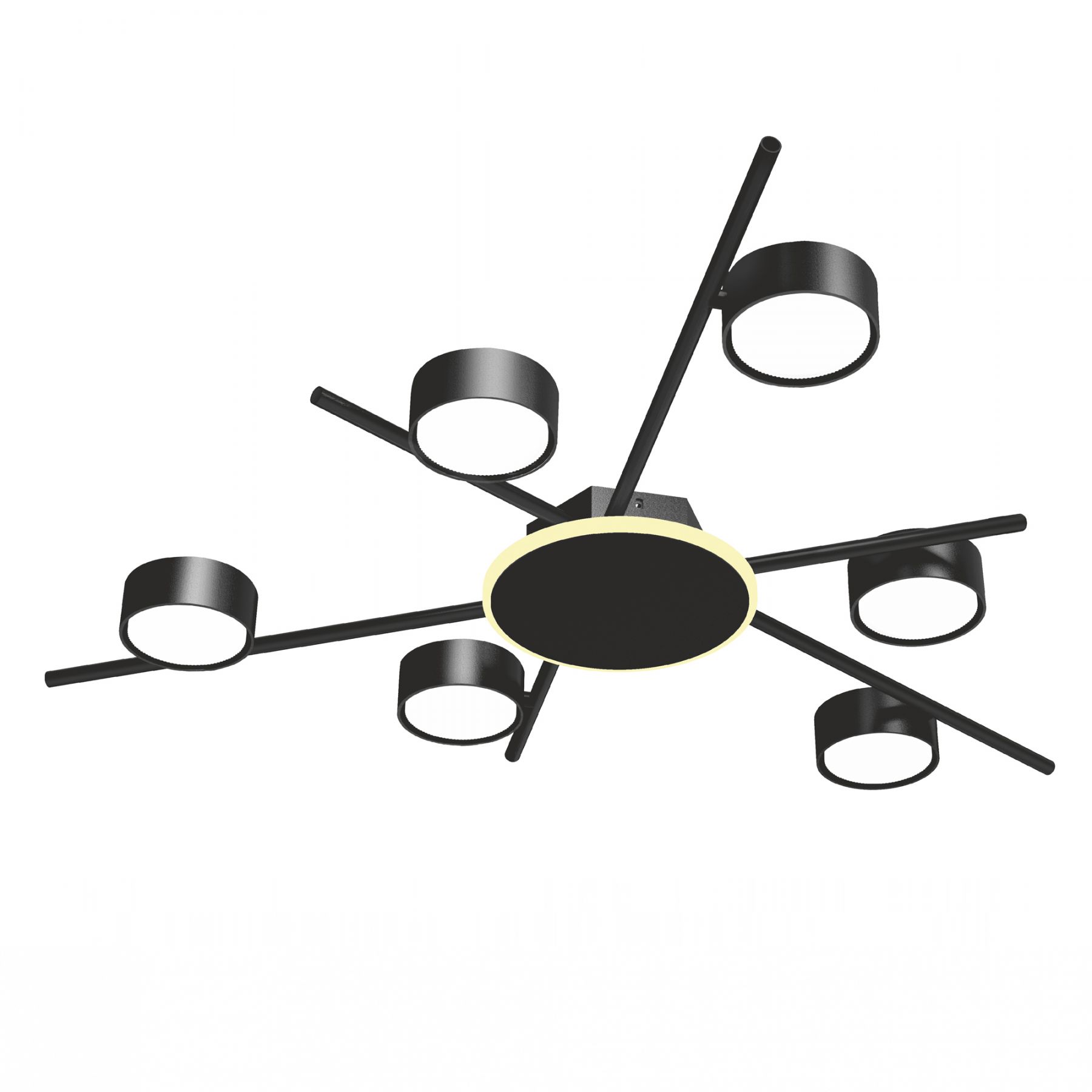

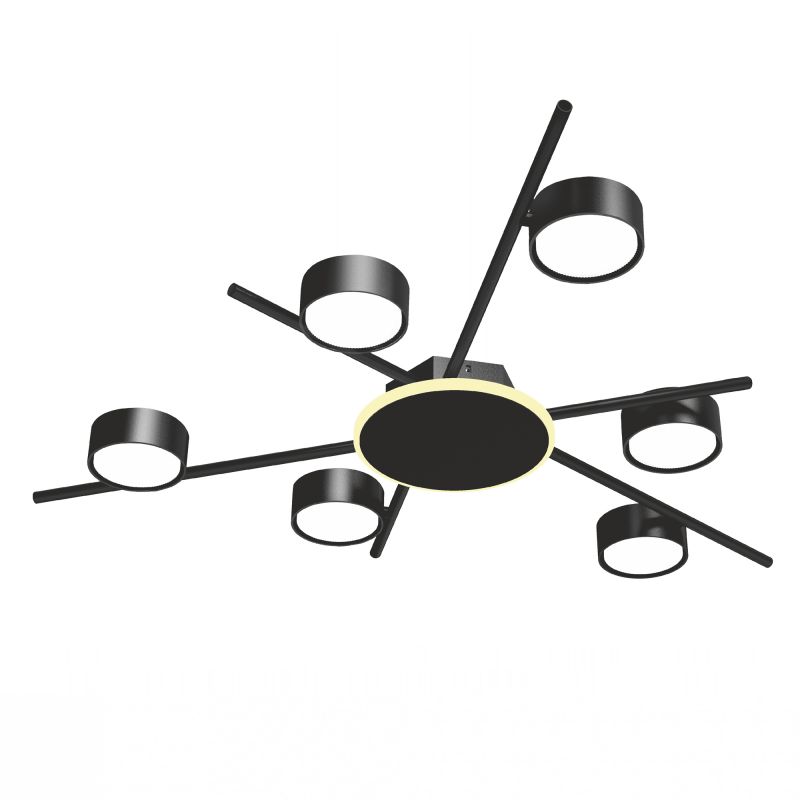

Ceiling spotlight luminaire VIDEX for 6xGX53 lamp with backlight VL-SPF22B-BB
Ceiling spotlight luminaire VIDEX for 6xGX53 lamp with backlight VL-SPF22B-BB
Parameters
-
EAN:4820246487108
-
Maximum power:Max 30W x6
-
On-mode power (Pon):9 W (back light)
-
Useful luminous flux of the contained light source (Φuse):830 Lm (backlight)
-
Light source or containing product:Containing product
-
Energy efficiency class of the contained light source:F
-
-
Correlated color temperature:2700K (back light)
-
Base:GX53
-
Rated voltage, frequency:AC 220-240 V, 50/60 Hz, AC 185-240 V, 50/60 Hz (back light)
-
Place of installation :Ceiling
-
Place of application:indoor
-
Displacement factor (cos φ1):0.5
-
Color rendering index (CRI):Ra > 80
-
Lifetime (L70B50):40000 h
-
On/Off cycles:20000
-
Housing colour:Black
-
Impact protection:IK07
-
Input interface:Terminal block
-
Useful luminous flux of the light source reference:in a sphere (360°)
-
Electric shock protection class:I
-
Operating temperature range:-25° +50°C
-
Dimmable:no
-
Light source replaceable:end user
-
Mercury content:Does not contain
-
Ingress protection:IP20
-
Housing material:Aluminum, Iron alloy, Ceramics
-
Height:50 mm, 35 mm
-
Width:85 mm, 350 mm
-
Depth:85 mm, 170 mm
-
In the package:1 pc.
-
Outer box:5 pcs.
-
Unit nett weight:1.3kg
-
Warranty:2 years
-
